描述

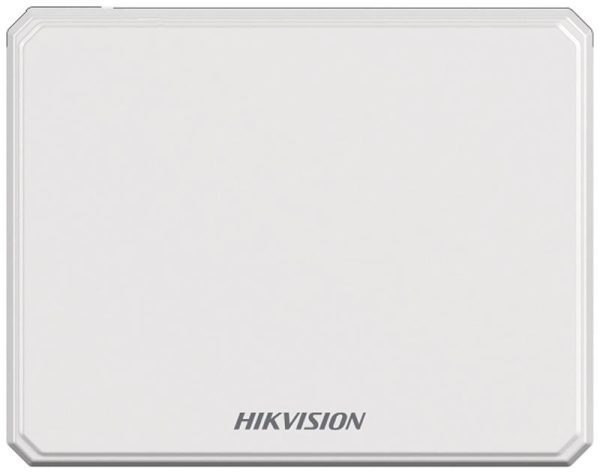

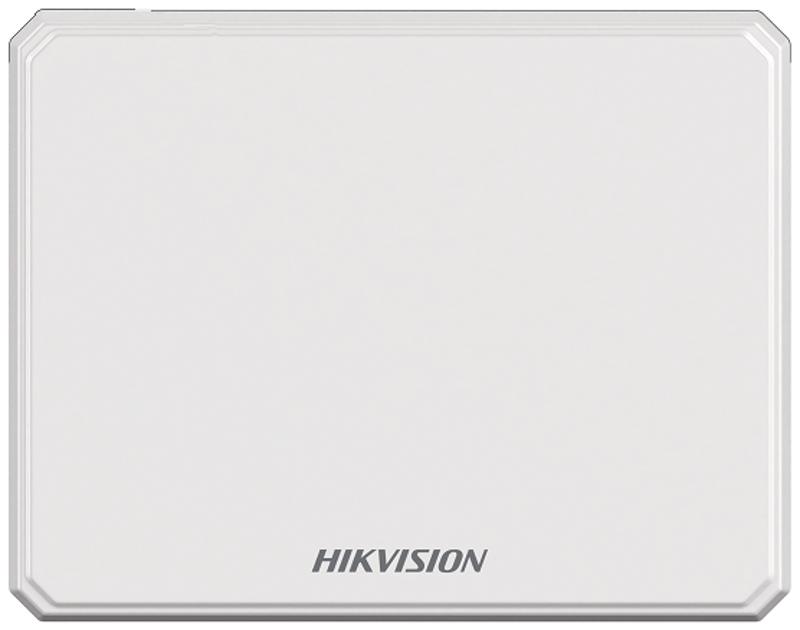

STS-BG32X-L5/P
STS-BG32X-L5/P,Security radar
STS-BG32X-L5/P 屬海康威視專業產品。傑成系統有限公司（香港防盜）為海康威視產品經銷商，可按項目報價供應；安裝範圍視乎項目另行確認。查詢請聯絡我們。規格以原廠資料為準。
規格
Radar
| Working Frequency | X band (9.3GHz~9.5GHz) |
|---|---|
| Modulation Waveform | Linear Frequency Modulation (LFM) Pulse System |
| Sweep Bandwidth | 10MHz |
| Cycle Time | 1.8s |
| Horizontal Scanning Angle | -50° ~ +50° |
| Vertical Scanning Angle | -6° ~ +6° |
| Max. Detectable Targets | ≥500 |
| Max. Detection Trigger Lines | Up to 4 trigger line(s) |
| Max. Detectable Zones | Up to 16 zone(s) |
| Detection Target Type | Human, Vehicle |
| Range Measurement | 200m~11km |
| Detection Distance | Detection range ≥ 5km，Human：1.8m (RCS ≈ 1m²) Detection range ≥ 10km，Vehicle： 4m (RCS ≈ 10m²) |
| Distance Resolution | 15m |
| Angle Resolution | 3.5° |
| Azimuth Angle Accuracy | ≤0.3° |
| Speed Measuring Range | ±0.5m/s ~ ±50m/s |
| Speed Resolution | 0.1m/s |
| Speed Measuring Accuracy | 0.3 m/s |
Function
| Radar + PTZ Smart Tracking | Supported |
|---|---|
| Zone Settings | Warning zone, Early warning zone, Disable zone |
| Tracking Mode | Time priority, Range priority, Multi-target auto switch, Target trigger priorit |
| Scene Mode | Expert mode, Open mode, Shrub mode |
| Map Management | Supported |
Network
| Protocols | TCP/IP, HTTP, HTTPS, DHCP, DNS, RTP, RTSP, NTP, IPv4/IPv6, UDP, SSL/TLS, ARP |
|---|---|
| Simultaneous Live View | Up to 32 channel(s) |
| API | SDK, ISAPI |
| User/Host | Up to 16 users, 3 user levels: administrator, operator, and user |
| Security | Authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, Control timeout settings, TLS1.2, Host authentication (MAC address) |
| Client | Hik-Central Pro |
| Web Browser | Chrome V61+, IE9 to IE11, Firefox V41+, Edge |
Interface
| Network Interface | 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port(s) |
|---|---|
| On-Board Storage | Built-in 128 G memory card |
| Alarm | 1 input, 1 Relay output (max. 1A@30 VDC，0.3A@125 VAC) |
| RS-232 | 2 RS-232 |
| Indicator | Supported |
General
| Voltage Range | 36V DC±33%（3.3A MAX) |
|---|---|
| Power Consumption | ≤85W |
| Working Temperature | -40℃ ~ +65℃, <90%RH |
| Protection | IP66 |
| Dimensions | 630mm×495mm×80mm |
| Installation Height | ≥10m |
Approval
| EMC | CE-EMC: EN IEC 61326-1:2021 |
|---|---|
| Safety | CB: IEC 61010-2-201:2017, IEC 61010-1:2010/AMD1:2016 CE-LVD: EN 61010-1:2010+A1:2019 Satety of laser products：IEC 60825-1:2014, EN 60825-1:2014, EN 60825-1:2014/A1:2017, EN 60825-1:2014/A11:2021 LOA: SANS IEC 61010-1 |
| RF | CE-RED: EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 61000-3-2:2019+A1:2021+A2:2024, EN IEC 62311:2020, ETSI EN 301 489-1 V2.2.3, ETSI EN 301 489-19 V2.2.1, ETSI EN 303 413 V1.2.1 |
| Environment | CE-RoHS: EN IEC 63000:2018 |
| Protection | IP66: IEC 60529:2013 |
| Anti-Corrosion Protection | NEMA 4X: ASTM B117-2019, ANSI/NEMA 250-2020 Section 5.6, ANSI/NEMA 250-2020 Section 5.7 & IEC 60529:1989/AMD2:2013/COR1:2019 |
