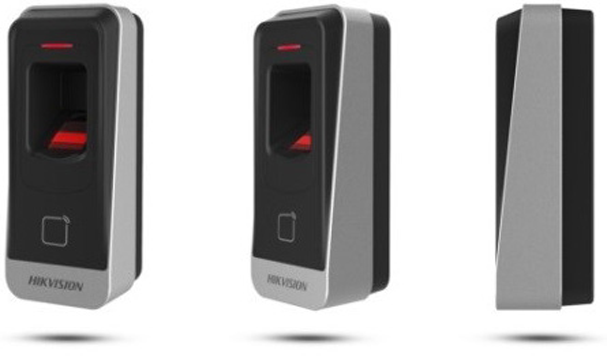

HIKVISION DS-K1201AEF Fingerprint Reader

描述

Fingerprint Reader

  • A group of messy code encrypted data for the security of fingerprint storage
  • Supports RS-485 communication with 19200bps-N-8-1 transmission rate. There are CRC test for the protocol
  • Supports EM card reading
  • Card induction distance is 30 mm to 100 mm
  • Supports multiple authentication modes (card, fingerprint, and card + fingerprint)
  • Optical CMOS fingerprint module. The characters of fingerprint can be export to the card reader
  • Max. 5000 fingerprints storage
  • Adopts the optical fingerprint module, supporting 1:N mode (fingerprint, card + fingerprint) and 1:1 mode (card + fingerprint)
  • Fingerprint comparison time: 1:1 ≤ 1 s, 1:1000 ≤ 1 s; FRR ≤ 0.01%, FAR ≤ 0.001%
  • Communication circuit is designed with optical coupling isolation and noise suppression function
  • Built-in buzzer for status indication
  • Accurate data and time display provided by built-in electronic clock and watchdog program to ensure the basic function of the terminal
  • Tamper-proof function



Specification



Network

  • Communication Protocol : RS-485



Interface

  • TAMPER : 1



Capacity

  • Fingerprint Capacity : 5000



Authentication

  • Fingerprint Module : Optical fingerprint module
  • Fingerprint Comparing Mode : 1:1/1:N
  • Card Type : EM card



General

  • Power Supply : 12 VDC ± 10%
  • Working Temperature : -40 °C to 70 °C (-40 °F to 158 °F)
  • Working Humidity : 10% to 90% (No condensing)
  • Protective Level : IP65
  • Dimensions : 62 mm × 132 mm × 44 mm (2.44″ × 5.20″ × 1.73″)
  • Installation : Surface mounting
  • Buzzer : Support
