描述

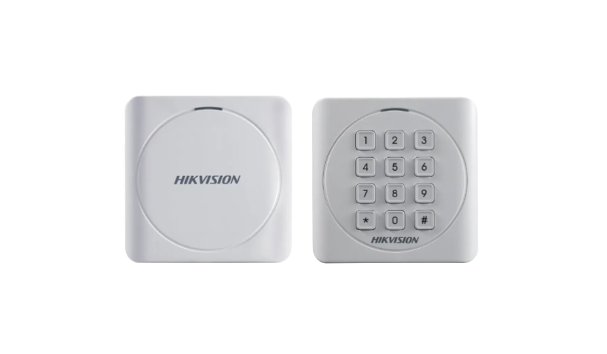

HIKVISION DS-K1801 Value 1801 Card Reader (EM & MF & Keyboard) 是海康威視門禁讀頭，接控制器用於層門或通道。香港防盜為安裝商及經銷商。卡種及讀距以原廠規格書為準。
Value 1801 Card Reader (EM & MF & Keyboard)
- M1/ EM card reader
- PC+ABS material shell
- Built-in audible beeper
- Wiegand interface
- IP65
Specification
Interface
- Wiegand : 1, W26/W34
Authentication
- Card type : EM card,M1 card
General
- Power supply : 12 VDC, 0.15 A
- Power consumption : ≤ 1.6 W
- Working temperature : -20 °C to 65 °C (-4 °F to 149 °F)
- Working humidity : 10% to 90% (no condensing)
- Dimensions : 87 mm × 87 mm × 13.3 mm (3.43" × 3.43" × 0.52")
- Weight : Gross weight: 0.22 kg (0.49 lb); Net weight: 0.14 kg (0.31 lb)
- Keypad : N/A/12 Keys(0 to 9,*,#)
- Buzzer : support
- Available Model : DS-K1801E
