描述
HIKVISION DS-K1A802AMF-B K1A802 Pro Series Fingerprint Time Attendance Terminal 是海康威視指紋門禁終端。香港防盜為安裝商及經銷商。須現場測試安裝高度及登記；手套或手濕不建議只用指紋。規格以下方原廠資料為準。

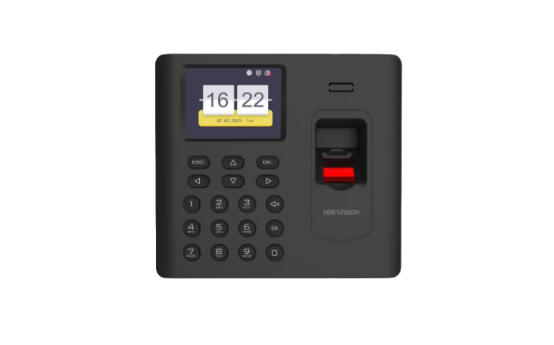

Fingerprint Time Attendance Terminal
- 2.4-inch LCD screen to display time, date, week, and attendance information
- Transmission modes of wired network (TCP/IP) and wireless network
- 1:N mode accurate and fast fingerprint recognition (recognition duration < 1 s)
- Max. 3000 users, Max. 3000 fingerprints, Max. 100,000 event records
- Stand-alone operation (supports adding persons, cards, and fingerprints locally)
- Downloads attendance reports by USB flash drive
- Up to 32 normal shifts, up to 32 man-hour shifts, and up to 32 attendance holiday schedules can be configured
- Generates reports automatically
- Export the report and upgrade the device via the USB flash drive
- Prompt for full report memory
- Supports multiple authentication modes, supports authentication via PIN code
- Supports multiple languages: English, Vietnamese, Brazilian Portuguese, Spanish, French, Italian, Arabic, Thai, Turkish, Indonesian, and Ukrainian
- When the main power is off, the system will change the power supply method to lithium battery supply automatically
- Checks the device running status via the Watchdog. When exceptional status occurs, the device will reboot automatically
- Supports transmitting data via Wi-Fi
- Supports ISAPI protocol and ISUP 5.0 protocol
Specification
System
- Operating system : Linux
Screen
- Screen size : 2.4-inch
- Type : LCD-TFT display screen
Audio
- Audio output : 1 loudspeaker, 1 buzzer
Network
- Wired network : TCP/IP, 10/100Mbps, self-adaptive
- Wi-Fi : Support
Interface
- Network interface : 1
- USB : 1
Capacity
- Card capacity : 3000
- Fingerprint capacity : 3000
- Event capacity : 100,000
Authentication
- Card type : Mifare 1 card
- Card reading distance : 0 to 5 cm
- Card reading duration : < 1 s
- Fingerprint module : Optical fingerprint module
- Fingerprint comparing mode : 1:1 and 1:N
- Fingerprint recognition duration : < 1 s
- Fingerprint FAR : ≤ 0.001 %
- Fingerprint FRR : ≤ 0.01 %
Others
- Indicator : Power/status (red/green)
- Battery : Support
- Power supply : 5 VDC/1 A
- Working temperature : -10 °C to +55 °C (14 °F to +131 °F)
- Working humidity : 10% to 90% (no condensing)
- Color : Black
- Dimensions : 140 mm × 155 mm × 30 mm (5.51" × 6.01" × 1.18")
- Application environment : Indoor
- Installation : Surface mounting, desk stand
- Available Model : DS-K1A802AMF-B
