描述
HIKVISION DS-K1A802MF K1A802 Pro Series Fingerprint Time Attendance Terminal 是海康威視指紋門禁終端。香港防盜為安裝商及經銷商。須現場測試安裝高度及登記；手套或手濕不建議只用指紋。規格以下方原廠資料為準。

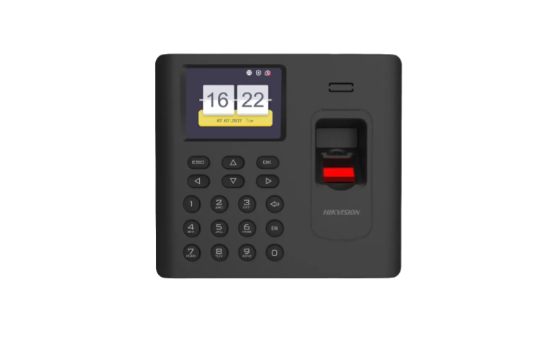

DS-K1A802 Series Fingerprint Time Attendance Terminal
- Person information structure: based on employee ID
- Supports 6 attendance status, including check in, check out, break in, break out, overtime in, overtime out
- Supports multiple languages: English, Vietnamese, Brazilian Portuguese, Spanish, French, Italian, Arabic, and Thai
- Accesses to public network via EHome 4.0 or 5.0 protocol, and sets EHome parameters on the client or device
- 2.8-inch LCD screen to display time, date, week, and attendance information
- Supports registering fingerprints from the terminal to software remotely
- Max. 3000 users, Max. 3000 fingerprints, and Max. 100,000 events records
- Two attendance authentication modes: authentication by person, authentication by device
- Stand-alone operation (supports adding persons, cards, and fingerprints locally)
- Exports the swiping card data and the attendance report to the USB flash drive
- Up to 32 normal shifts, 32 man-hour shifts, and 32 attendance holiday schedules
- Generates the attendance report automatically and views the attendance data easily
- The third party arming is available
- IP address conflict detection
Specification
Storage
- Storage : Up to 3000 valid cards, 100,000 records, 150,000 attendance records
System
- Operation system : Linux
Specifications
- iVMS-4200 : Support
- Fingerprint capacity : Up to 3000 fingerprints; up to 10 fingerprints for each person
- Card reading response duration : < 1 s
- Fingerprint recognition duration : < 1 s
- Fingerprint comparing mode : 1:1 and 1:N
- FAR (False Acceptance Rate) : ≤ 0.001%
- FRR (False Rejection Rate) : ≤ 0.01%
- Fingerprint recognizer : Optical fingerprint recognizer module
- Card reading mode : M1 card, including cards with special shapes; Supports reading card in metal environment
- Card reading distance : 0 to 5 cm
- Lithium battery : Not support
- Transmission Rate : LAN: 10/100 Mbps self-adaptive
- Wi-Fi : Support
- USB interface : USB 2.0, type A
- LCD screen : 2.8-inch 320 × 240 LCD-TFT display screen
- Keypad : Physical keys (no backlight)
- LED indicator : Power/status (red/green)
- Audio : 1 buzzer, 1 loudspeaker
- Power supply : 12 VDC/1 A
- Working temperature : -10 °C to +55 °C (14 °F to +131 °F)
- Working humidity : 10% to 90% (no condensing)
- Application mode : Indoor
- Color : Black (included), gold (optional), silver (optional), white (optional)
- Dimension (L × W × H) : 140 mm × 155 mm × 30 mm (5.51" × 6.01" × 1.18")
- Installation : Surface mounting, metal door mounting, desk stand
- Available Model : DS-K1A802MF
