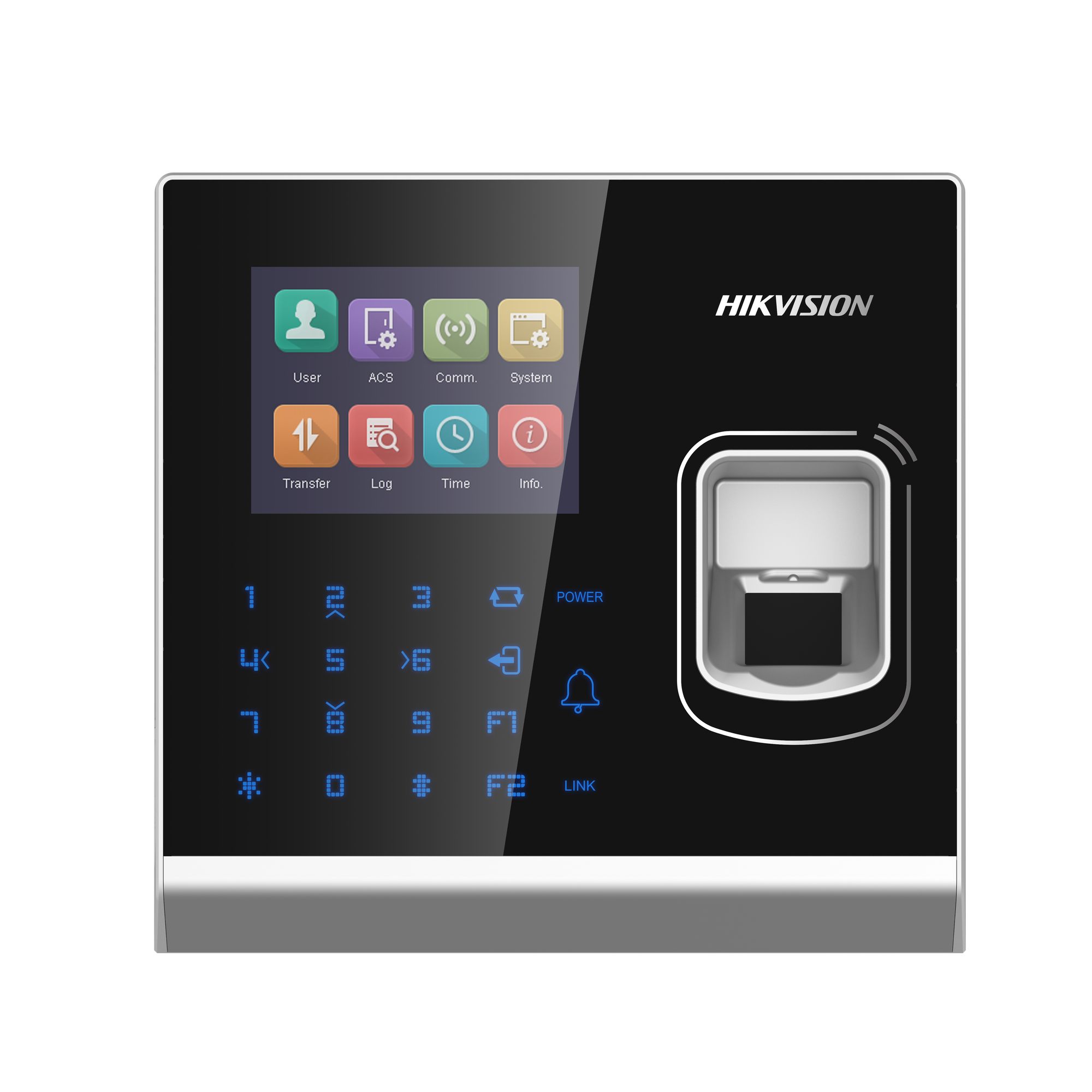

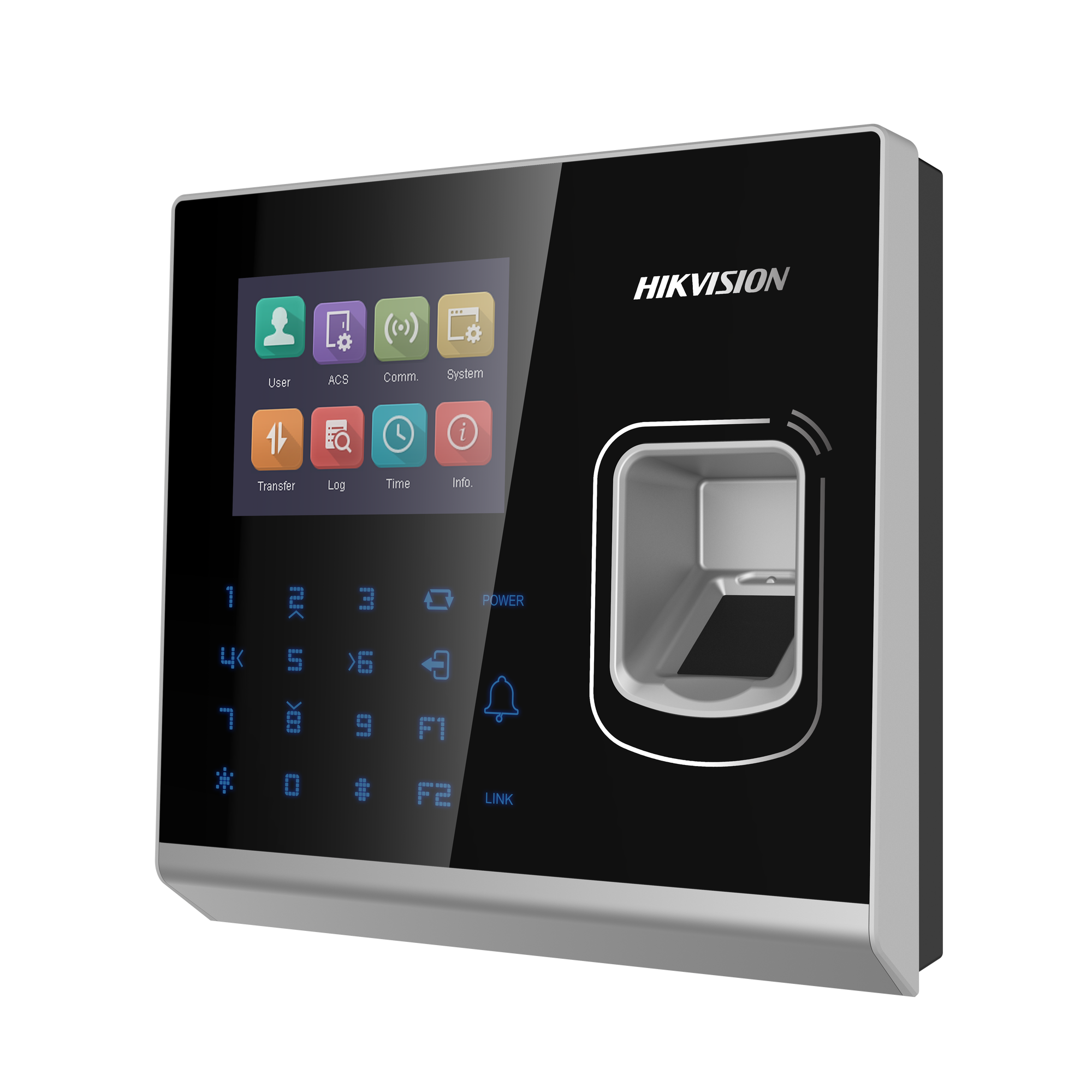

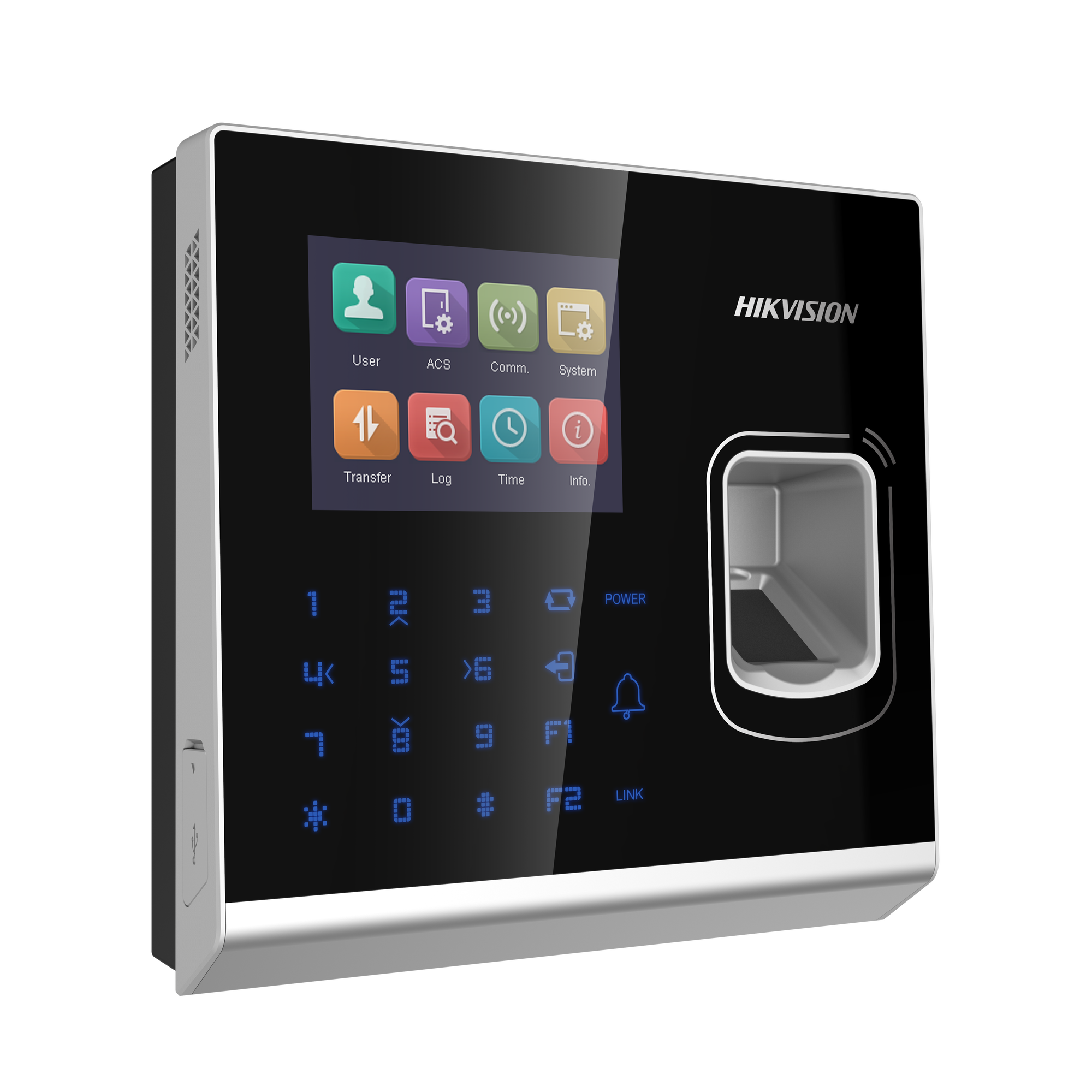

HIKVISION DS-K1T201AEF Pro Series Fingerprint Terminal

描述

Fingerprint Access Control Terminal

• DS-K1T201AEF is an optical fingerprint access control terminal with multiple advanced technologies including fingerprint recognition, Wi-Fi, and LCD display screen. It is designed with a 2.8-inch LCD display screen. It is equipped with optical fingerprint recognition module (supporting 1:1 mode and 1:N mode), and supports offline operation.
• IP addresses conflicted alarm
• Supports uploading real-time events
• Gets offline events: Avoids events losing
• Touch mode and blue light display technique for keypad
• Stand-alone settings for the terminal
• 2.8-inch LCD display screen to display the time, the date, etc.
• Max. 100,000 valid card capacity, Max. 5000 fingerprint capacity, and Max. 300,000 access control events capacity
• Communication via wired network (TCP/IP) and Wi-Fi
• Supports ISUP5.0 protocol for public network communication
• Supports multiple door opening modes (card, card + password, fingerprint, exit button, etc.)
• Supports RS-485 and Wiegand (26/34) communication for connecting the external card reader
• Applies authentications from the client to the device
• Supports Wiegand (26/34) interface and RS-485 interface for accessing the controller
• Tampering detection, unlocking overtime alarm, invalid card swiping over times alarm, forced opening door alarm, and duress card alarm
• Creates dismiss code for dismiss alarm
• Accurate data and time display provided by built-in electronic clock and watchdog program to ensure the basic function of the terminal
• Data can be permanently saved after power-off
• Supports EM card reading
