描述

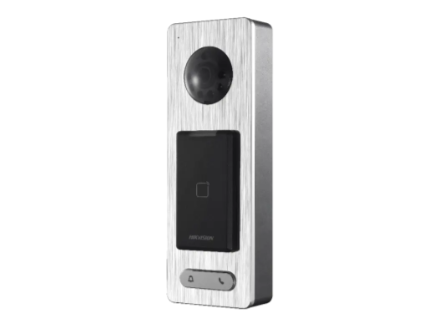

HIKVISION DS-K1T500 Pro Series Video and Card Terminal 是海康威視門禁卡機／獨立機，用於層門或通道。香港防盜為安裝商及經銷商。卡種及讀距以原廠規格為準。
Pro Series Video and Card Terminal
- Video access control card terminal
- 2 Mega pixels camera
- 50,000 card and 200,000 event storage
- Built-in card reader for Mifare1 card
- Wiegand interface and RS-485 interface for accessing controller
- EHome for public network communication
- Face detection and picture capture function
- Video intercom function
- IP65
Specification
Device Interfaces
- Communication Mode : Terminal Mode: TCP/IP and RS-485,Card Reader Mode: Wiegand (26/34) and RS-485,
- Input Interface : Doorbell Button × 1, Door Magnetic Sensor × 1, Alarm Input × 2, Tamper Alarm × 1, Exit Button × 1
- Output Interface : Lock Relay × 1, Alarm Output (Doorbell) × 1
System Parameters
- Built-In Micro SD Card : Max. 128G
- Camera : 2MP/1080P, IR Light
- Capability : 50,000 Cards and 200,000 Swiping Card Records
- Card Reading Mode : Mifare Card
- Induction Distance : ≥ 2cm
- Processor : 32 Bit High-performance Processor
General
- Working Temperature : -40°C to 70°C (-40°F to 158°F)
- Working Humidity : 10% to 90% (No Condensing)
- Working Current : Max. 600 mA
- Power Supply : 12 VDC/1 A
- Audio : Audio Input: Build-in Micro Phone (Sensitivity: -25±3DB),Audio Output: Build-in Loudspeaker (1W),
- Installation : Wall Mounting
- Protection Level : IP65
- Dimension : 218mm × 78mm × 41mm (8.58″ × 3.07″ × 1.61″)
