描述

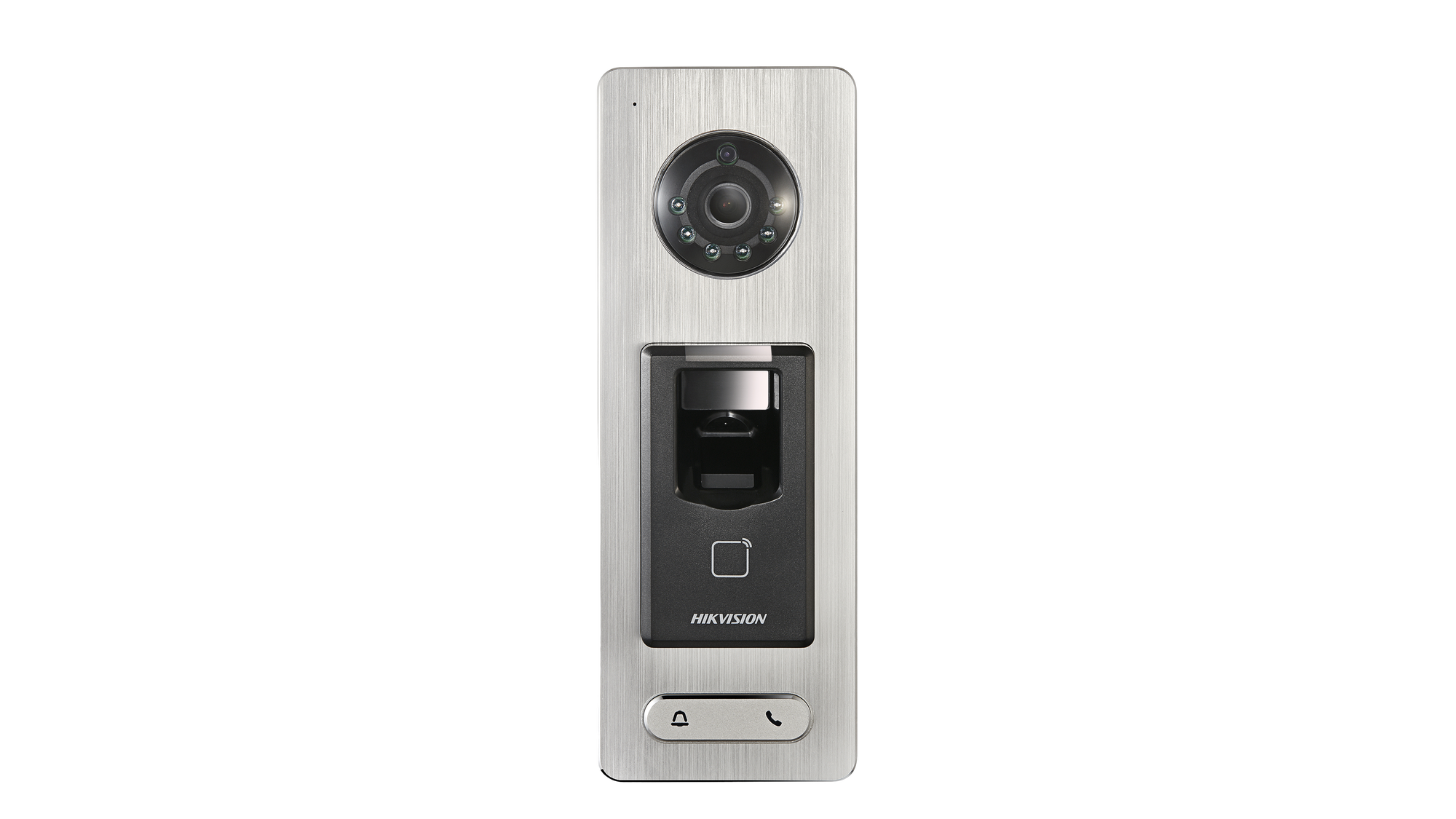

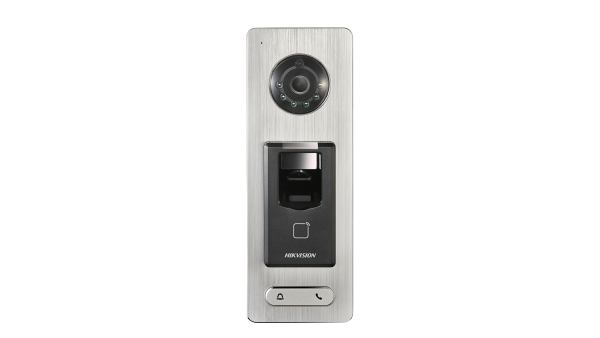

HIKVISION DS-K1T501SF Pro Series Video and Fingerprint Terminal 是海康威視指紋門禁終端。香港防盜為安裝商及經銷商。須現場測試安裝高度及登記；手套或手濕不建議只用指紋。規格以下方原廠資料為準。
Pro Series Video and Fingerprint Terminal
- Video access control terminal
- 2 Mega pixels camera
- 50,000 card, 3,000 fingerprints and 200,000 event storage
- Built-in card reader for Mifare1 card
- Wiegand interface and RS-485 interface for accessing controller
- EHome for public network communication
- Face detection and picture capture function
- Video intercom function
- IP65
Specification
General
- Working Temperature : -40°C to 70°C (-40°F to 158°F)
- Working Humidity : 10% to 90% (No Condensing)
- Working Current : Max. 600 mA
- Power Supply : 12 VDC/1 A
- Audio : Audio Input: Build-in Micro Phone (Sensitivity: -25±3DB)Audio Output: Build-in Loudspeaker (1W)
- Processor : 32 Bit High-performance Processor
- Communication Mode : Terminal Mode: TCP/IP and RS-485Card Reader Mode: Wiegand (26/34) and RS-485
- Camera : 2MP/1080P, IR Light
- Card Capability : 50000
- FAR (False Acceptance Rate) : ≤ 0.001 %
- FRR (False Recognition Rate) : ≤ 0.01 %
- Fingerprint Module : Optical Fingerprint Recognition Module
- Card Reading Mode : Mifare Card
- Input Interface : Doorbell Button × 1, Door Magnetic Sensor × 1, Alarm Input × 2, Tamper Alarm × 1, Exit Button × 1
- Output Interface : Lock Relay × 1, Alarm Output (Doorbell) × 1
- Record Capability : 200000
- Fingerprint Capability : 5000
- 1:N Fingerprint Recognition Speed : ≤ 1.5s
- Induction Distance : ≥ 2cm
- Video Storage : Record and Save Video through NVR or Micro SD Card
- Micro SD Card : Max. 128G
- Mounting : Wall Mounting
- Protection Level : IP65
- Dimension : 218mm × 78mm × 41mm (8.58″ × 3.07″ × 1.61″)
