描述

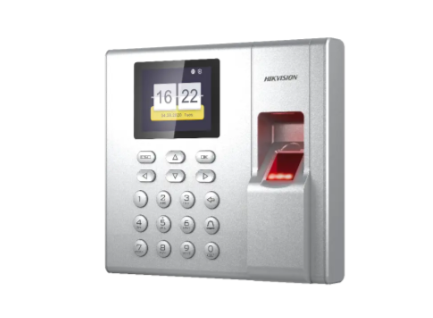

HIKVISION DS-K1T8003EF K1T8003 Value Series Fingerprint Time Attendance Terminal 是海康威視指紋門禁終端。香港防盜為安裝商及經銷商。須現場測試安裝高度及登記；手套或手濕不建議只用指紋。規格以下方原廠資料為準。
K1T8003 Value Series Fingerprint Time Attendance Terminal
- 2.4-inch LCD Display Fingerprint Access Control Terminal, Built-in EM card reading module
- Communication: TCP/IP，ISUP5.0 ； 1000 users, 1000 fingerprints，1000 card and Max. 100,000 event records
- Support Access Control and Time Attendance Function, Optical Fingerprint Module
- Remotely opens door via Hik-Connect mobile client；Tamper alarm.
Specification
Display
- Screen Size : 2.4-inch
- Type : LCD-TFT display screen
Audio
- Audio Output : 1 loudspeaker, 1 buzzer
Network
- Wired Network : TCP/IP, 10/100Mbps, self-adaptive
- Communication Protocol : TCP/IP, ISUP
Interface
- Network Interface : 1
- Lock Control : 1
- Exit Button : 1
- Door Contact Input : 1
- TAMPER : 1
- USB : 1
Capacity
- Card Capacity : 1000
- Fingerprint Capacity : 1000
- Event Capacity : 100,000
Authentication
- Card Type : EM card
- Card Reading Distance : 0 to 3.5 cm
- Fingerprint Module : Optical fingerprint module
- Fingerprint Comparing Mode : 1:1 and 1:N
- Fingerprint Recognition Duration : ＜ 1 s
General
- Power Supply : 12 VDC/1 A
- Working Temperature : -10 °C to +55 °C (14 °F to +131 °F)
- Working Humidity : 10% to 90% (no condensing)
- Color : Silver
- Dimensions : 140 mm × 155 mm × 30 mm (5.51″ × 6.01″ × 1.18″)
- Self Service Reports (SSR) : Stand-alone operation, calculate attendance data and export reports via USB interface
- Installation : Wall mounting
- Weight
Gross weight: 0.78 kg (1.72 lbs)
Net weight: 0.22 kg (0.48 lbs)
