描述

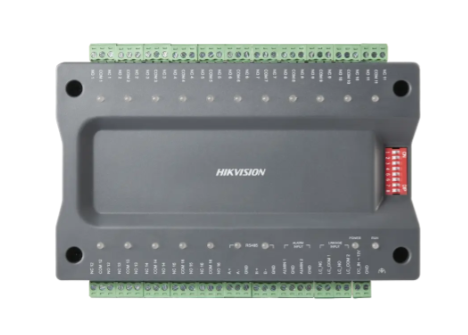

HIKVISION DS-K2M0016A Elevator Sub-Controller 是海康威視門禁介面／IO 模組，接駁控制器以加門點或輸入輸出。香港防盜為安裝商及經銷商。規格以下方原廠資料為準。
Elevator Sub-Controller
- Distributed elevator controller
- Connectable with up to 16 relays to control floor buttons in the elevator
- RS-485 communication with the master elevator controller
- DIP switch settings for device address and relay types
- Up to 8 distributed elevator controllers can be linked to the master elevator controller
- Control the elevator via the relay
Specification
Device Interface
- RS-485 Interface : 2
- Alarm Input : 2
- Relay Output : 16
- Buzzer : 1
General
- Working Temperature : -40°F to 158°F
- Working Humidity : 0% to 90% (No Condensation)
- Power Supply : 12 VDC±15%
- Installation : Guide Rail Installation
- Tamper-Proof : 1
- Dimensions : 167(L)mm*105(W)mm*30(H)mm
System Parameter
- Processor : 32 bit
