描述

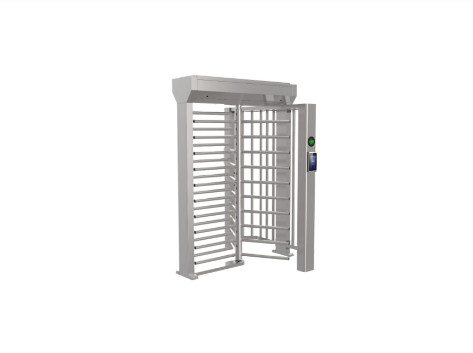

Pro Full Height Turnstile
- LED indicates the passing direction(forbidden or available).
- When the power is cut off, the system will automatically unlock the brake levers into a free-passing mode to facilitate the evacuation of people.
- Valid passing duration settings: System will cancel the passing permission if a person does not pass through the lane within the valid passing duration.
- There is a DIP switch on the control panel, which adjusts the passage delay time.
- Support bi-directional passing through.
Specification
System
- MCBF : More than 3 million times
- Motor : NA
General
- Throughput :
More than 30 persons per minute
The actual throughput is affected by the person passing rate and passing method.
- Lane Width : 650mm
- Pedestal Material :
SUS304 stainless steel 1.5mm(0.06”)
Stainless steel pipe 1.2mm(0.05”)
- Power Supply : 100 to 240 VAC; 50 to 60 Hz
- Working Temperature : -15℃~55℃(5℉~131℉)
- Working Humidity : 10% to 90% (No Condensing)
- Dimensions :
Without package: 1630mm x 1580mm x 2300mm(64.2” x 62.2” x 90.6”)
With package: 2100mm x 1290mm x 1240mm(82.7” x 50.8” x 48.9”)
- Application Environment : Indoor and outdoor
- Weight
Without package: 220 kg (485 lbs)
With package: 320 kg (705 lbs)
