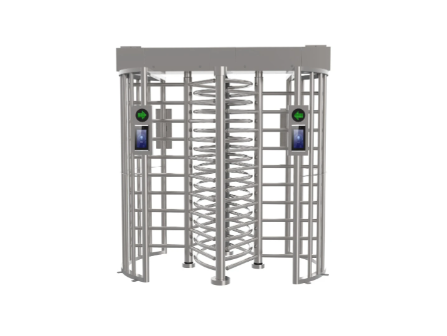

Value Full Height Turnstile
- LED indicates the passing direction(forbidden or available).
- When the power is cut off, the system will automatically unlock the brake levers into a free-passing mode to facilitate the evacuation of people.
- Valid passing duration settings: System will cancel the passing permission if a person does not pass through the lane within the valid passing duration.
- Support bi-directional passing through.
Specification
System
- MCBF : More than 2 million times
- Motor : NA
General
- Throughput :
More than 30 persons per minute
The actual throughput is affected by the person passing rate and passing method.
- Lane Width : 600mm
- Pedestal Material :
SUS304 stainless steel 1.2mm(0.05”)
Stainless steel pipe 1.0mm(0.04”)
- Power Supply : 100 to 240 VAC; 50 to 60 Hz
- Working Temperature : -15℃ ~ 55℃ ( 5℉ ~ 131℉ )
- Working Humidity : 10% to 90% (No Condensing)
- Dimensions :
Without package: 2100mm x 1270mm x 2230mm(82.7” x 50” x 87.8”)
With package:
2195mm x 1395mm x 1080mm(86.4” x 55” x 42.5”)
195mm x 1395mm x 1080mm(7.7” x 54.7” x 42.5”)
- Application Environment : Indoor and outdoor
- Weight :
Without package: 200 kg (411 lbs)
With package: 400 kg (882 lbs)
