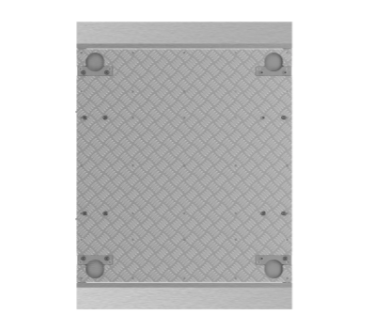

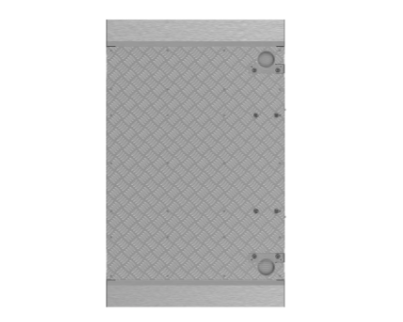

Fixed Base
- Material: SUS304, aluminum plate with pattern, and galvanization panel
- Cable holes on the base for cable wiring
- The base size varies according to the lane width
- Multiple lanes available: Installs with the single and multiple components
Specification
General
- Dimensions
S (L × W × H): 1475 mm × 1105 mm ×34 mm (58.1″ × 43.5\” × 1.3\”)
M (L × W × H): 1475 mm × 915 mm × 34 mm (58.1 × 36.0\” × 1.3\”)”
- Weight
With package: 55 kg (121.3 lb)
Without package: 50 kg (110.3 lb)
- Material
Pedestal installation area: SUS304
Lane: Aluminum plate (with pattern)
Framework: Galvanization panel
