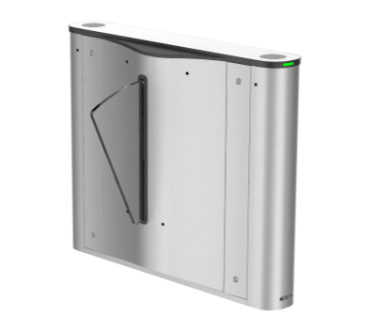

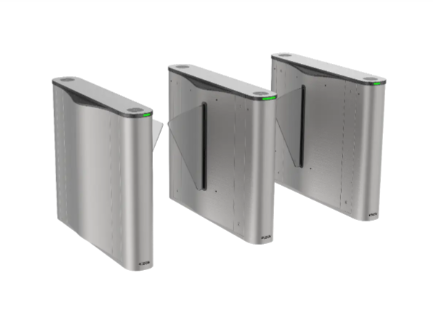

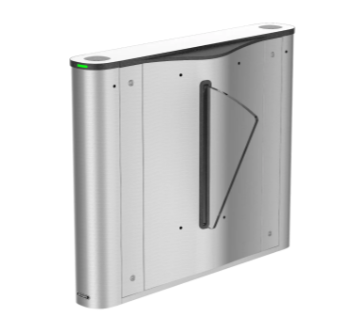

Value Flap Barriers
- Permissions validation and anti-tailgating.
- Remaining open/closed mode selectable.
- The barrier will be open or stop working when people are nipped.
- Self-detection, Self-diagnostics, and automatic alarm .
- Audible and visual alarm will be triggered when detecting intrusion, tailgating reverse passing, and climbing over barrier.
- TCP/IP network communication: The communication data is specially encrypted to relieve the concern of privacy leak.
- LED indicates the entrance/exit and passing status.
- Fire alarm passing: When the fire alarm is triggered, the barrier will be open automatically for emergency evacuation.
Specification
System
- MCBF :＞3 million times
- Motor : Brush motor
Interface
- Network Interface : 1
- RS-485 : 4
- RS-232 : 4
- Lock Output : 2
- IO Input : 2
- IO Output : 2
Capacity
- Card Capacity : 60,000
- Event Capacity : 180,000
General
- Throughput :
20 to 60 persons per minute
The actual throughput is affected by the person passing rate and passing method
- Power Supply Method : 100 to 240 VAC, 50 to 60 Hz
- IR Light Detectors : 6 pairs
- Lane Width : 600 mm (23.62″)
- Working Temperature : -20 °C to 65 °C (-4 °F to 149 °F)
- Barrier Material : Acrylic glass
- Working Humidity : 0% to 95% (No condensing)
- Dimensions :
With packaging: 1360 mm × 440 mm × 1200 mm (53.54″ × 17.32\” × 47.24\”)
Without packaging: 1207 mm × 315 mm × 990 mm (47.52 × 12.40\” × 38.98\”)”
- Pedestal Material : SUS304 stainless steel
- Application Environment : Indoor and outdoor
- Weight :
Net: approximately 50 kg (left)/64 kg (middle)/52 kg (right) (110.3 lb/141.1 lb/114.7 lb)
Rough: approximately 80 kg (left)/94 kg (middle)/83 kg (right) (176.4 lb/207.3 lb/183.0 lb)
- Approval : CE/FCC/CB/RoHS/REACH/WEEE
Configuration
- Module Selection : YES
- Authentication Mode : Card;Face;Fingerprint;QR code
- Card Type : EM;M1
- Wall Distance : 10 mm
- Lane Width : 600
- Recommended Width : 600
- Pedestal Length : 1200 mm
- Pedestal Width : 315 mm
- Barrier Material : Acrylic glass
- Base : YES
- Base Model : DS-K3Y411X-BASE
- Authentication Exclusionary : null
- Product Type : Flap barrier
- Remote Controller Type : 433Mhz;868Mhz
