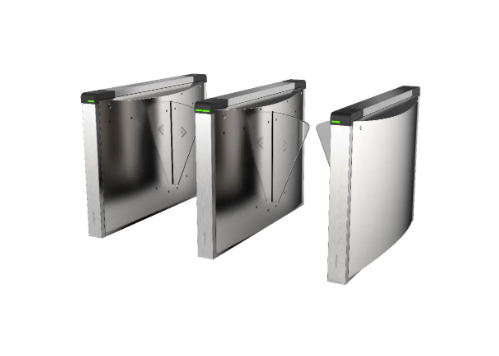

Pro Flap Barriers
- Permissions validation and anti-tailgating.
- Remaining open/closed mode selectable.
- The barrier will be open or stop working when people are nipped.
- Self-detection, Self-diagnostics, and automatic alarm .
- Audible and visual alarm will be triggered when detecting intrusion, tailgating reverse passing, and climbing over barrier.
- TCP/IP network communication: The communication data is specially encrypted to relieve the concern of privacy leak.
- LED indicates the entrance/exit and passing status.
- Fire alarm passing: When the fire alarm is triggered, the barrier will be open automatically for emergency evacuation.
Specification
System
- MCBF : ＞6 million times
- Motor : Servo motor
Interface
- Network Interface : 1
- RS-485 : 4
- RS-232 : 4
- Lock Output : 2
- IO Input : 2
- IO Output : 2
Capacity
- Card Capacity : 60,000
- Event Capacity : 180,000
General
- Throughput :
30 to 60 persons per minute
The actual throughput is affected by the person passing rate and passing method
- Power Supply Method : 100 to 240 VAC, 50 to 60 Hz
- IR Light Detectors : 12 pairs
- Lane Width : 600 mm (23.62″)
- Working Temperature : -20 °C to 70 °C (-4 °F to 158 °F)
- Barrier Material : Acrylic glass
- Working Humidity : 0% to 95% (No condensing)
- Dimensions :
With packaging: 490 mm × 1160 mm × 1640 mm (19.29″ × 45.67\” × 64.57\”)
Without packaging: 300 mm × 1010 mm × 1406.8 mm (11.81 × 39.76\” × 55.38\”)”
- Pedestal Material : SUS304 stainless steel
- Application Environment : Indoor and outdoor
- Weight :
Without packaging: 74 kg (left and right)/90 kg (middle) (163 lb/198 lb)
With packaging: 99 kg (left and right)/115 kg (middle) (218 lb/254 lb)
- Approval : CE/FCC/CB/RoHS/REACH/WEEE
Configuration
- Module Selection : YES
- Authentication Mode : Card;Face;Fingerprint;QR code
- Card Type : EM;M1
- Wall Distance : 130mm
- Lane Width : 600
- Recommended Width : 600
- Pedestal Length : 1410mm
- Pedestal Width : 300mm
- Barrier Material : Acrylic glass
- Base : YES
- Base Model : DS-K3Y501-BASE
- Product Type : Flap barrier
- Remote Controller Type : 433Mhz;868Mhz
