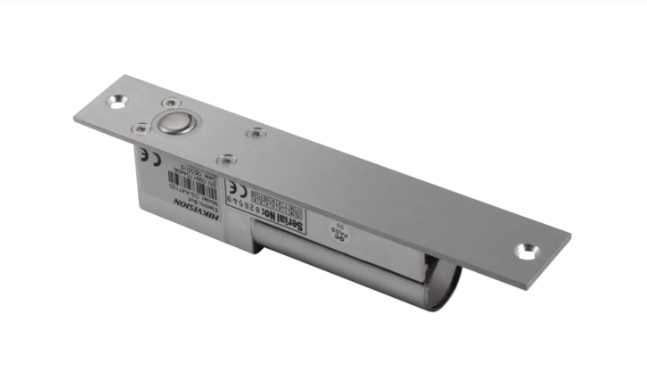

Pro Series Bolt Electric Lock
- Electric bolt, polished and brushed stainless steel, upport thrust of 800kg
- Working current: 900mA(Startup current), 100mA (standby), 12VDC + 10%
- Capable of 500,000 locking operations
- Suitable for wooden door, glass door, metal door and fireproof door
- Signal output of door lock status.
Specification
General
- Power Supply : 12 VDC+10 %, 900 mA (startup current), 100 mA (standby)
- Working Temperature : -10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity : 0 to 95 % (relative humidity)
- Dimensions :
Lock Body (L × W × H): 205×35×40mm (8.07 × 1.38 × 1.57″)
Armature Plate (L×W×H): 90 × 25 × 2 mm (3.54 × 0.98 × 0.07)
Bolt: 16 mm × 16 mm (0.63 × 0.63)”
- Material : Bolt: polished and brushed stainless steel
- Thrust : 800 kg
- Door Type : Wooden door, glass door, metal door, fireproof door
- Signal Output : Signal output NC, COM contact of door status
- Magnetic Induction Distance : 8 mm (0.31″)
- Delay Duration : 0/3/6/9 s Optional
