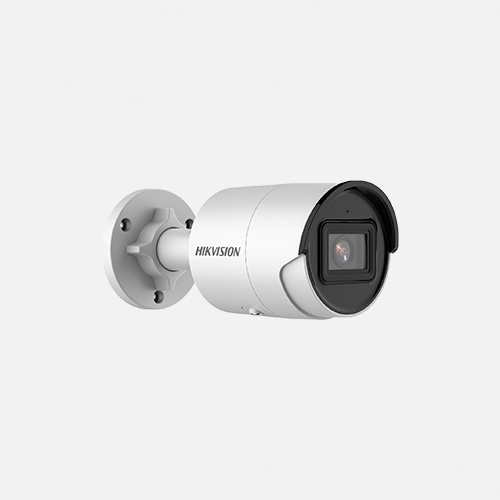

HISVISION DS-2CD2043G2-I(U)

HISVISION DS-2CD2043G2-I(U)

分類: , 標籤: ,

描述

Camera

  • Image Sensor：1/3″ Progressive Scan CMOS
  • Max. Resolution：2688 × 1520
  • Min. Illumination：Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR on
  • Shutter Time：1/3 s to 1/100,000 s
  • Day & Night：IR cut filter
  • Angle Adjustment：Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lens

  • Focal Length & FOV：
    2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 122°
    4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 100°
    6 mm, horizontal FOV 52°, vertical FOV 28°, diagonal FOV 61°
  • Lens Type：Fixed focal lens, 2.8, 4, and 6 mm optional
  • Lens Mount：M12
  • Aperture：F1.6
  • Iris Type：Fixed

DORI

  • DORI：
    2.8 mm: D: 67 m, O: 26 m, R: 13 m, I: 6 m
    4 mm: D: 80 m, O: 31 m, R: 16 m, I: 8 m
    6 mm: D: 120 m, O: 47,m, R: 24,m, I: 12 m

Illuminator

  • Supplement Light Range：Up to 40 m
  • Supplement Light Type：IR
  • IR Wavelength：850 nm
  • Smart Supplement Light：Yes

Video

  • Main Stream：
    50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
    60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
  • Sub-Stream：
    50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
    60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
  • Third Stream：
    50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
    60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • Video Compression：
    Main stream: H.265/H.264/H.264+/H.265+
    Sub-stream: H.265/H.264/MJPEG
    Third stream: H.265/H.264
  • Video Bit Rate：32 Kbps to 8 Mbps
  • H.264 Type：Baseline Profile/Main Profile/High Profile
  • H.265 Type：Main Profile
  • Bit Rate Control：CBR/VBR
  • Scalable Video Coding (SVC)：H.264 and H.265 encoding
  • Region Of Interest (ROI)：1 fixed region for main stream and sub-stream

Audio

  • Audio Compression：-U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Audio Bit Rate：-U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps(G.722.1)/16 Kbps(G.726)/16-64 Kbps(AAC-LC)
  • Audio Sampling Rate：-U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Environment Noise Filtering：-U: Yes

Network

  • Protocols：TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSockets
  • Simultaneous Live View：Up to 6 channels
  • API：Open Network Video Interface (Profile S, Profile G), ISAPI, SDK
  • User/Host：Up to 32 users. 3 user levels: administrator, operator and user
  • Security：Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
  • Network Storage：NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
  • Client：iVMS-4200, Hik-Connect, Hik-Central
  • Web Browser：
    Plug-in required live view: IE 10, IE 11
    Plug-in free live view : Chrome 57.0+, Firefox 52.0+
    Local service: Chrome 57.0+, Firefox 52.0+


  • Image Parameters Switch：Yes
  • Image Settings：Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
  • Day/Night Switch：Day, Night, Auto, Schedule
  • Wide Dynamic Range (WDR)：120 dB
  • Image Enhancement：BLC, HLC, 3D DNR
  • SNR：≥ 52 dB

Interface

  • Ethernet Interface：1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage：Built-in memory card slot, support microSD card, up to 512 GB
  • Built-In Microphone：-U: Yes
  • Reset Key：Yes

Event

  • Basic Event：Motion detection (human and vehicle targets classification), video tampering alarm, exception
  • Smart Event：
    Line crossing detection, intrusion detection (support alarm triggering by specified target types (human and vehicle))，Face detection
  • Linkage：Upload to FTP/memory card/NAS, notify surveillance center, trigger record, trigger capture

General

  • Power：
    12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection
    PoE: 802.3af, Class 3, 36 V to 57 V), 0.2 A to 0.13 A, max. 7 W
  • Dimension：Ø70 × 161.7 mm (Ø2.76″ × 6.37″)
  • Package Dimension：216 mm × 121 mm × 118 mm (8.6″ × 4.8″ × 4.7″)
  • Weight：Approx. 490 g (1.1 lb.)
  • With Package Weight：Approx. 724 g (1.6 lb.)
  • Storage Conditions：-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup And Operating Conditions：-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • General Function：Anti-flicker, heartbeat, password reset via e-mail, pixel counter
  • Language：33 languages
    English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Approval

  • EMC：FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
  • Safety：UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
  • Environment：CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
  • Protection：IP67 (IEC 60529-2013)
