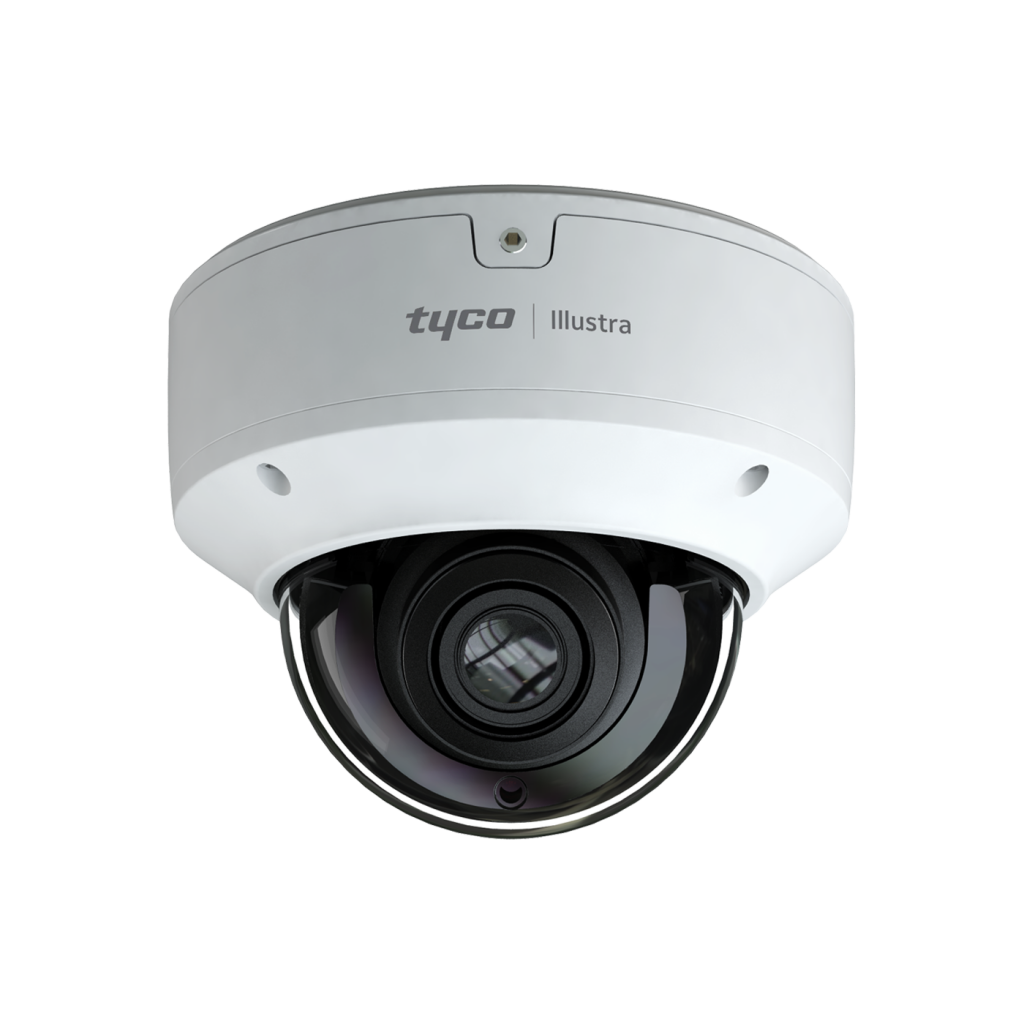

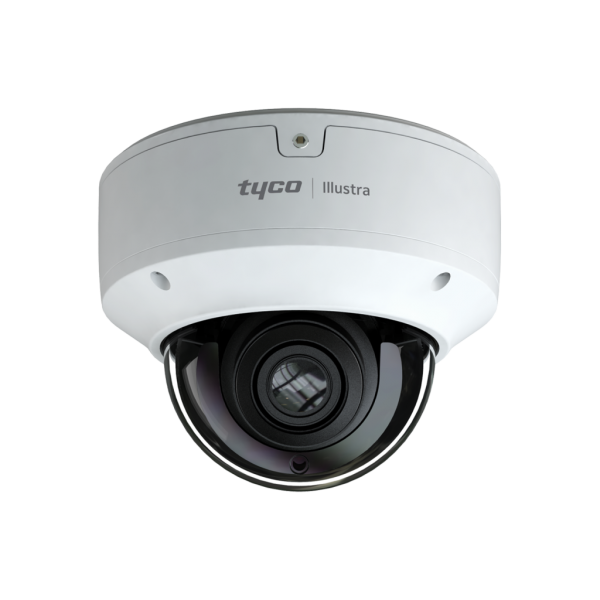

Illustra Standard A Series 2MP Starlight Dome
Camera Features
- Up to 50m IR distance with Smart IR for clear images in low light conditions
- 120dB Wide Dynamic Range, and True Day/Night provide exceptional video quality in challenging lighting conditions
- Support auto focus by motorised varifocal lens
- Smart codec by Region of Interest reduces storage
- Up to 128GB SD card supports on board storage
- Advanced intelligent video analytics automatically analyses captured video and alert users of specific motion detected activities
- IK10-rated vandal resistance and IP67-rated for protection against dust and water damage
- As of August 2020, Illustra Standard cameras support the directives of the National Defence Authorisation Act (NDAA) for sale to U.S. federal and government agencies
Specification
| Camera Features | Illustra Standard A Series 2MP Starlight Dome |
| Audio | Bi-directional audio (2-way) |
| Alarm Input/Output | Alarm 1 in / 1 out |
| API | ONVIF (Profile S/G), HAPI3, iAPI3 |
| Backlight Compensation | Yes |
| Corridor Mode | Yes |
| Cyber Security | HTTPS / IP Filter / IEEE 802.1X /Blacklist & whitelist/account security/telnet access control/serial password |
| Day/Night | Yes – IR cut filter with auto switch |
| Defog | Yes |
| Digital Noise Reduction | 2D/3D DNR |
| Dimensions | Φ150 × 114 |
| Dynamic Range | True WDR, 120dB |
| Effective Pixels | 1920 × 1080 |
| Ethernet | RJ45 |
| Field of View | Horizontal: 96°~ 45.6° Vertical: 64°~26.6° |
| Face Detection | Yes |
| Focal Length | 2.8 ~ 12 mm @F1.4 |
| Focus Control | Auto-focus |
| H.264 | Yes – Base Line / Main Profile / High Profile |
| H.265 | Yes – Main Profile @Leve4.1 High Tier |
| Horizontal FOV | 96°~ 45.6° |
| Imager | 1 / 1.8″ CMOS |
| Image Orientation Settings | ROI, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR,etc. |
Intelligent Video Analytics |
Perimeter Protection：Line crossing, region Entering/Exiting/Intrusion (human/motor vehicle/ non-motor vehicle classification)
Target Counting：Line crossing human/motor vehicle/non-motor vehicle counting Exception Detection：Scene change, video blur and video color cast detection Face Detection：Face detection and face capture |
| IR Distance | Up to 50M |
| IR Filter | IR cut filter with auto switch |
| Lens Type | Motorised Varifocal |
| Max Frame Rate | 30fps @ all resolution,60fps @ 1080P |
| Minimum Illumination | 0.005 Lux,F1.2,AGC ON; 0.008 Lux，F1.6,AGC ON； 0 lux with IR |
| Motion Detection | Yes |
| Multiple Streaming | Main Stream: 60Hz:1080P(1~60fps)/ 720P(1~30fps) 50Hz:1080P(1~50fps)/720P(1~25fps）
Sub Stream: 60Hz:1080P/720P/D1/CIF /480×240 (1~30fps) 50Hz:1080P/720P/D1/CIF/480×240 (1~25fps) Third Stream: 60Hz : D1( 1 ~ 30fps ) / 480×240( 1 ~ 30fps ) / |
| Network Protocol | TCP / IP, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, UPnP, Unicast, Multicast |
| Onboard Storage | Built-in micro SD card slot, up to 128GB |
| ONVIF Compliant | Yes |
| Outdoor Rating | IP67 |
| Pan Travel | Pan : 0°~360° |
| Power Draw | < 9.5W |
| Power Supply | AC24V/DC12V / PoE |
| Privacy Zones | 4 zones video mask |
| Remote Monitoring | Webviewer browsing, Holis Pro, Holis Lite, ExacqVision, victor |
Resolution Options |
1080P ( 1920×1080 ) 720P ( 1280×720 ) D1 CIF 480×240 |
| Shutter Speed | PAL: 1 / 25 s ~ 1 / 100000 s | NTSC: 1 / 30 s ~ 1 / 100000 s |
| Simultaneous Users | Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission |
| Supported Protocols | TCP / IP, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, UPnP, Unicast, Multicast |
| S/N Ratio | ≥52 dB |
| Tilt Travel | 0°~77° |
| Vandal-Resistant | IK10 |
| Video Streams | Triple Streams |
| Weight | Approx. 1050g |
| Wide Dynamic Range | True WDR, 120dB |
