描述
LILIN P3C0122P3 是 1080P 定焦隱藏式網絡鏡頭，2MP CMOS，支援 H.265／H.264、3D 降噪及最高 120 dB HDR。針孔鏡頭須按私隱公署指引評估必要性及相稱性，不應在洗手間、更衣室等私人地方使用。香港防盜為安裝商及經銷商，規格以原廠為準。
相關方案：辦公室及店舖閉路電視員工私隱、閉路電視安裝。

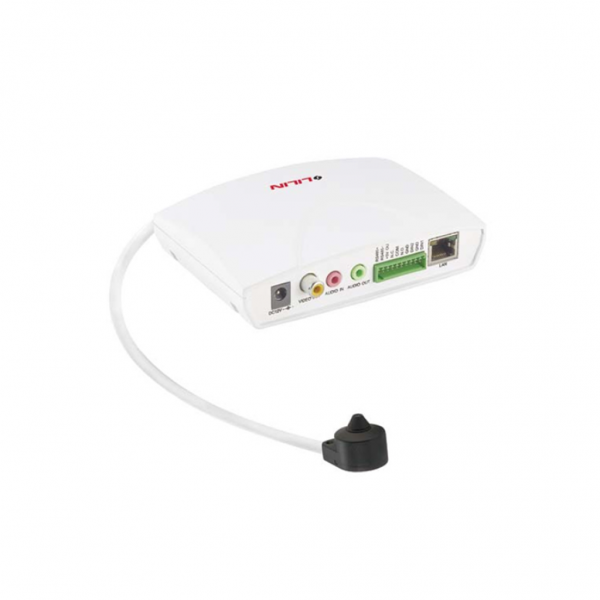

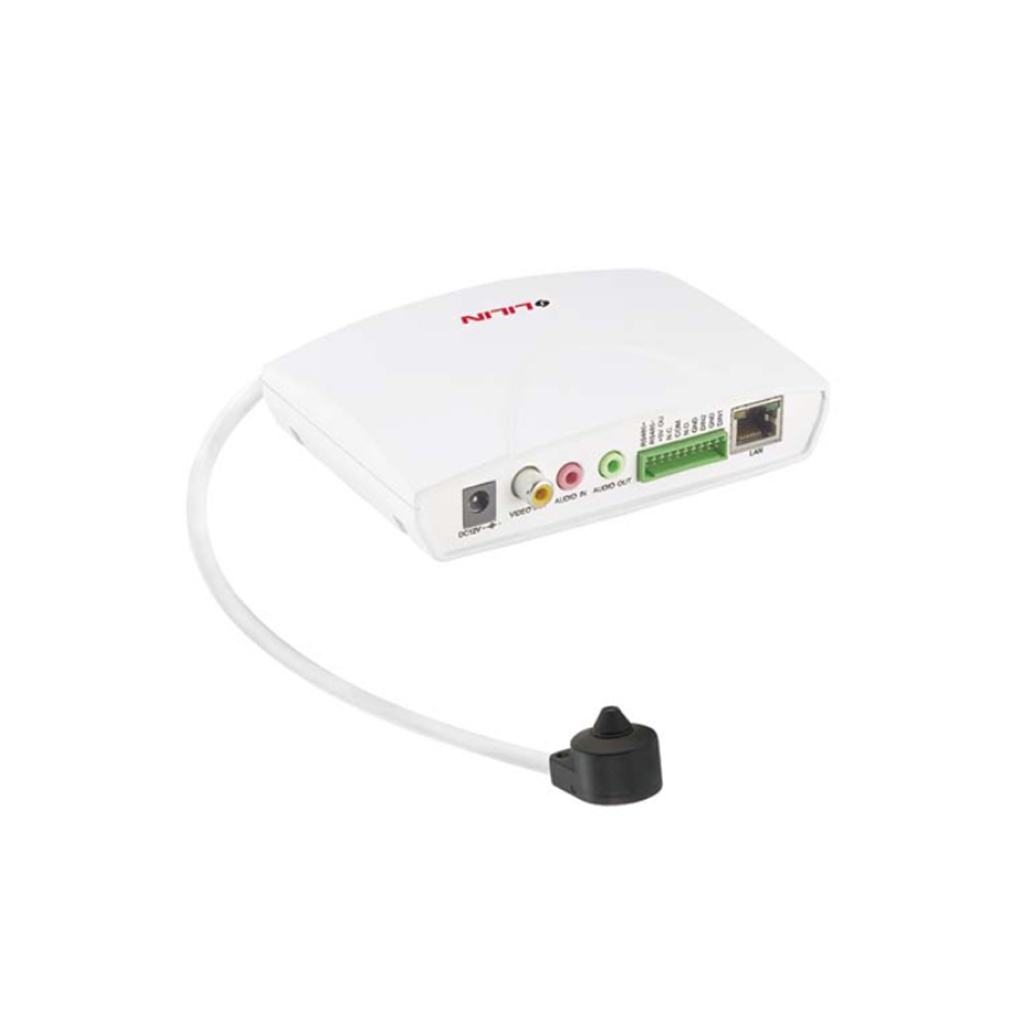

LILIN P3C0122P3
1080P Fixed Covert IP Camera
Features
- Full HD 2 megapixel CMOS image sensor
- 2MP H.265/HEVC and H.264/AVC high-performance video compression
- Simultaneous streaming of H.265 and H.264 encoded streams
- Smart H.264/H.265 supported
- 3D noise reduction (MCTF)
- 2D WDR function
- HDR function up to 120dB
- Digital PTZ supported
- IVS supported
- Motion
- SMART event
- Day & Night
- 2-way audio supported
- Digital I/O : 2 in, 1 out
- ONVIF Profile S, Profile T and Profile G supported
- RS-485 supported
Specifications
| Min. illumination/Low Light Mode (Colour) | Color : 0.1 Lux at F2.8 ; B/W : 0.02 Lux at F2.8 |
| Focal Length | 3.7mm |
| Iris | F2.8 |
| Iris Control | Fixed IRIS |
| Angle of View | 88.5° (H) 45.8° (V) 106.4° (D) |
| Pick Up Element | 1/2.9″ CMOS image sensor |
| Effective pixels | 1920 (H) × 1080 (V) = 2,073,600 (Pixels) |
| CPU | Intel® Core™ i7 or higher grade |
| OS requirement | Windows 7 or above |
| RAM | 8GB or above, Dedicated Graphics Card |
| Video Compression | H.265/HEVC profile, H.264 profile , Motion JPEG |
| Resolution | 2MP(1920 × 1080), 1.3MP(1280 × 960), 1MP(1280 × 720), D1(720 × 480, 720 × 576), VGA(640 × 480), CIF(352 × 240) |
| White Balance | ATW-NARROW / ATW-WIDE / AWC(MANUAL) |
| Electrical Shutter | 1/30(1/25)s – 1/30000s |
| Image Effects | Brightness, Contrast, Hue, Saturation, Sharpness, Mirror, Flip |
| CPU.Memory | Embedded SoC ARM Cortex-A9, 816MHz, 512MB DDR3L, 256MB flash memory |
| OS | Embedded Linux 3.14 |
| Starting Temperature | 0°C – +50°C (32°F – 122°F) |
| Operating temperature | -25°C – +50°C (-13°F – 122°F) |
| Storage temperature | -25°C – +50°C (-13°F – 122°F) |
| Operating humidity | 0% – 90% RH |
| Power Supply | DC12V ±10% / PoE (IEEE 802.3af compliant) |
| Power Consumption | DC12V, 5W / PoE, 6W |
| Dimensions | Main module : 130(W) × 35(H) × 93(D) mm , Image sensor module : Ø25 × 32mm |
| Weight | Main module : 210g , Image sensor module : 188g |
