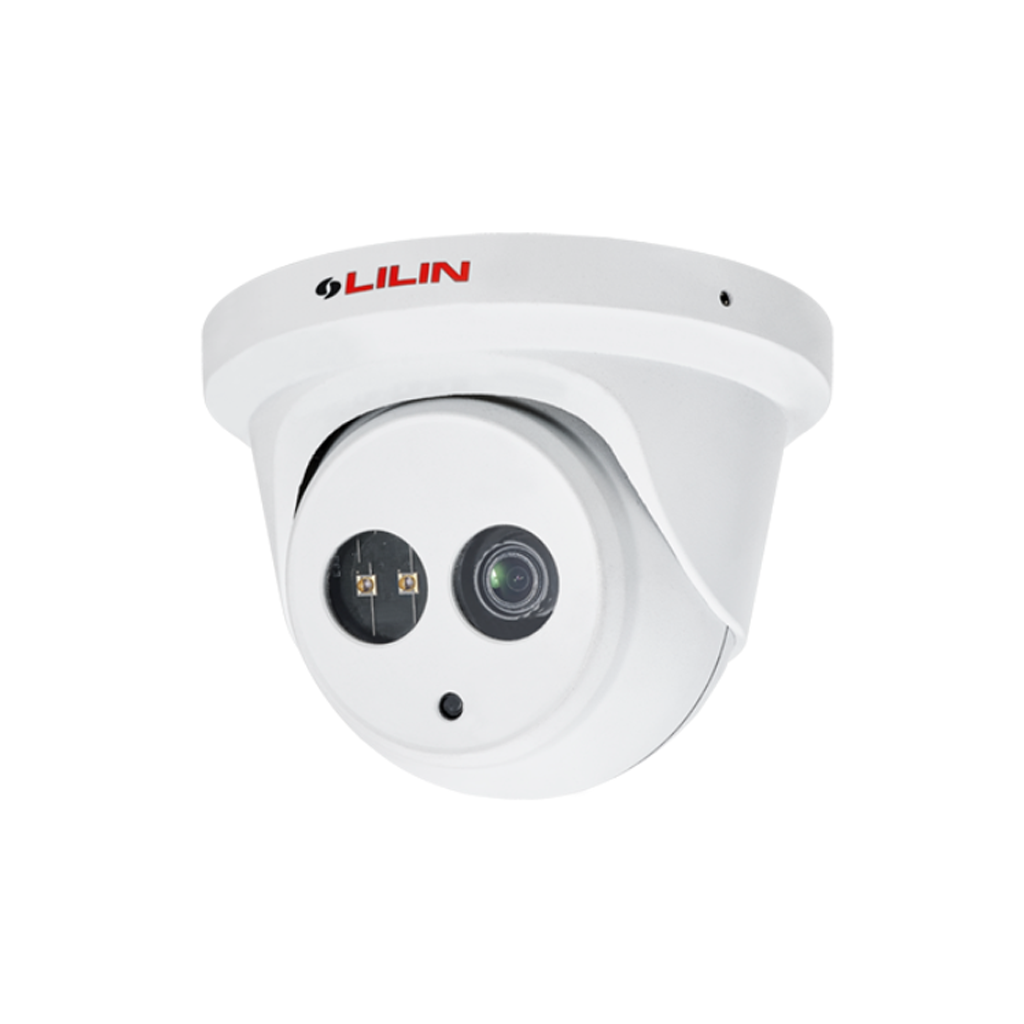

LILIN P5R6522E2
1080P Day & Night Fixed IR Vandal Resistant Dome IP Camera
Features
- Full HD 2 megapixel CMOS image sensor
- 2MP H.265/HEVC and H.264/AVC high-performance video compression
- Simultaneous streaming of H.265 and H.264 encoded streams
- 3D noise reduction (MCTF)
- 2D WDR function
- DWDR function up to 100dB
- High efficiency IR LED, radiant distance up to 30m
- Day & Night (IR cut removable)
- ONVIF Profile S supported
- IP67 rain and dust resistant
Specifications
| Min. illumination/Low Light Mode (Colour) | Color : 0.01 Lux at F2.0 ; B/W : 0.002 Lux at F2.0 ; 0 Lux with IR LED ON |
| Starting Temperature | -10°C – +50°C (14°F – 122°F) |
| Operating temperature | -30°C – +50°C (-22°F – 122°F) |
| Storage temperature | -25°C – +60°C (-13°F – 140°F) |
| Operating humidity | 0% ~ 90% RH |
| Power Supply | DC12V ±10% / PoE (IEEE 802.3af compliant) |
| Power Consumption | DC12V, 6.6W / PoE, 8.5W |
| Focal Length | 2.8mm |
| Iris | F2.0 |
| Iris Control | Fixed IRIS |
| Angle of View | 112.4° (H) 60.2° (V) 129.0° (D) |
| Peak wavelength | 850nm |
| Beam Spread | 60° , 90° |
| Max IR distance | 30M |
| Pick Up Element | 1/2.7″ CMOS image sensor |
| Effective pixels | 1932(H) X 1092(V) = 2,109,744 (Pixels) |
| Light sensor | Yes |
| CPU | Intel® Core™ i7 or higher grade |
| OS | Windows 7 or above |
| RAM | 8GB or more, Dedicated Graphics Card |
| Dimensions | Ø115 × 91 mm |
| Weight | 420g |
| Video Compression | H.265/HEVC Main Profile, H.264 Main Profile , Motion JPEG |
| Resolution | 2MP(1920 × 1080), 1.3MP(1280 × 960), 1MP(1280 × 720), 720 × 576, 720 × 480, 720 × 384, VGA(640 × 480), CIF(352 × 256) |
| White Balance | Auto/ Manual (adjustable) |
| Electrical Shutter | 1/30(1/25)s – 1/20000s |
| S / N Ratio | More than 48dB (AGC off) |
| Image Effects | Brightness, Contrast, Hue, Saturation, Sharpness, Mirror, Flip |
| CPU.Memory | SoC ARM Cortex-A7 Single Core 800MHz, Embedded 128MB DDR3, 128MB flash memory |
