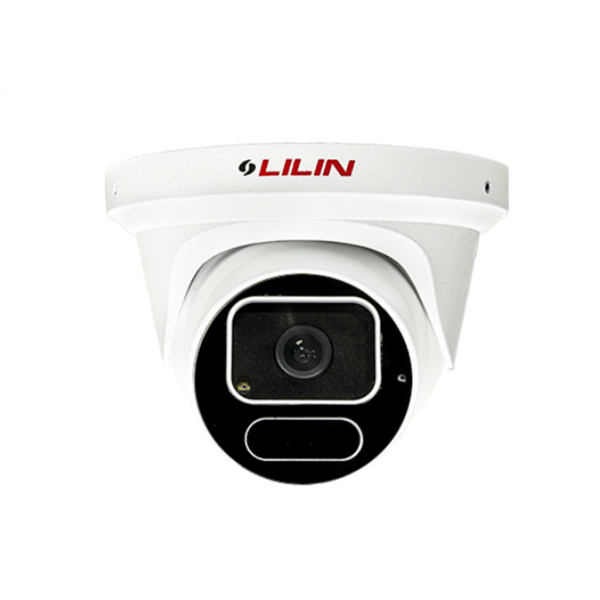

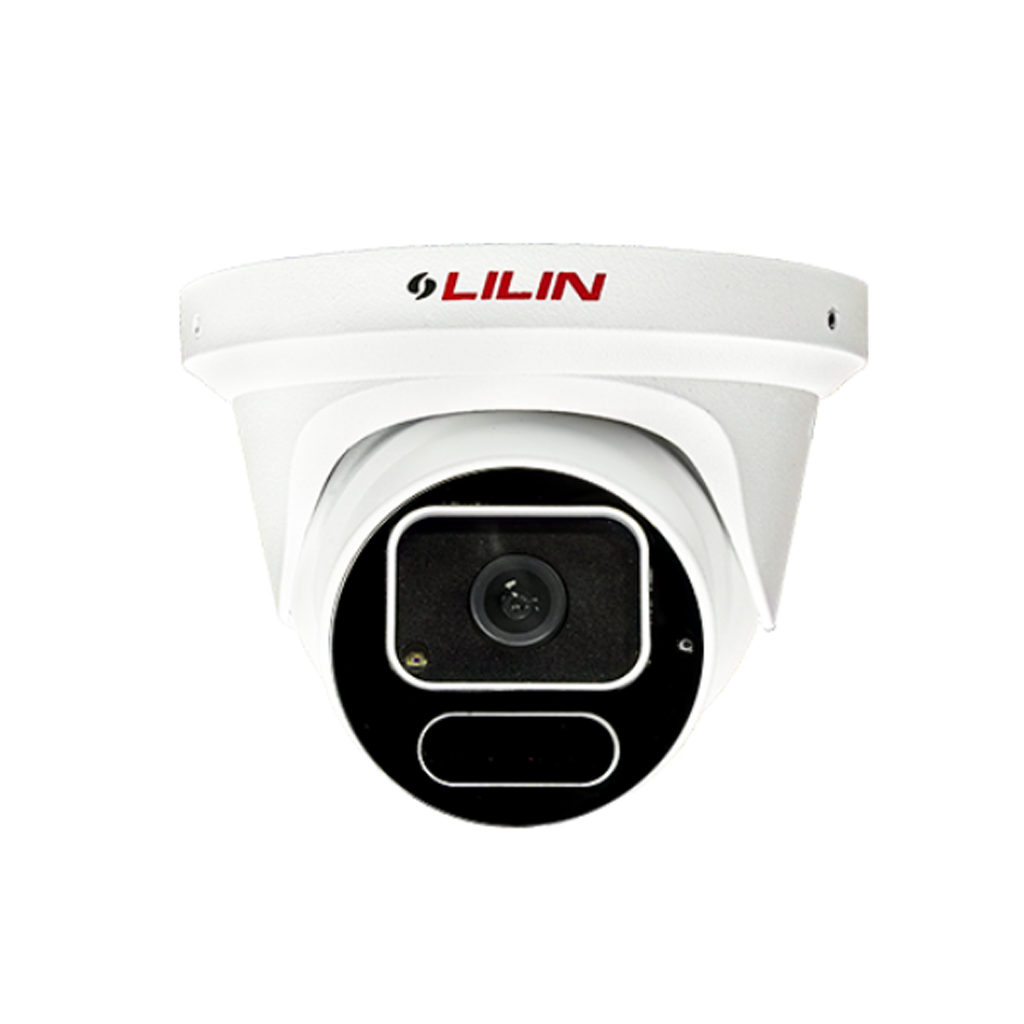

LILIN P6R6582E2
4K Day & Night Fixed IR Vandal Resistant Dome IP Camera
Features
- 8M megapixel CMOS image sensor
- 8MP H.265/HEVC and H.264/AVC high-performance videocompression
- Simultaneous streaming of H.265 and H.264 encodedstreams
- Fixed lens • Fixed
- 3D noise reduction (MCTF)
- 2D WDR function
- HDR function
- IVS
- Motion / Tamper / Audio / Alarm / Network lost detection / Global Counter / Virtual Input / Metadata
- SMART event
- High efficiency IR LED, radiant distance up to 35m
- Day & Night (IR cut removable)
- Digital I/O : 1 in, 1 out
- ONVIF Profile S / T / G
- IP67 rain and dust resistant
- Vandal resistant approve IK10
- Transparent dome cover
- Defog function
- privacy zone mask Support
Specifications
| Min. illumination/Low Light Mode (Colour) | Color: 0.07 Lux at F1.6 ; B/W: 0.01 Lux at F1.6 ; 0 Lux with IR LED ON |
| Focal Length | 2.8mm |
| Iris | F1.6 |
| Iris Control | Fixed IRIS |
| Angle of View (H) | 105.7 (H) |
| Angle of View (V) | 56.3 (V) |
| Angle of View (D) | 126.2 (D) |
| Peak wavelength | 850nm |
| Beam Spread | 60°, 90° |
| Max IR distance | 35M |
| Pick Up Element | 1/2.8″ CMOS image sensor |
| Effective pixels | 3864 (H) × 2176 (V) = 8,408,064 (Pixels) |
| CPU | Intel® Core™ i7 or higher grade |
| OS | Windows 7 or above |
| RAM | 8GB or above, Dedicated Graphics Card |
| Video Compression | H.265/HEVC main profile, H.264 main and high profile , Motion JPEG |
| Resolution | 4K(3840 × 2160), 6M(3072 × 2048), 5MP(2592 × 1944), 4MP(2304 × 1728), 3.1MP(2048 × 1536), 3MP(2304 × 1296), 2MP(1920 × 1080), |
| White Balance | Auto / Manual |
| Electrical Shutter | 1/30(1/25)s – 1/20000s |
| Image Effects | Brightness, Contrast, Hue, Saturation, Sharpness, Mirror, Flip, Rotation, Defog |
| CPU.Memory | Embedded Dual-core ARM Cortex-A9 1.2GHz CPU & (DDR 1024MB/Flash 512MB) |
| Starting Temperature | -10°C – +50°C (-14°F – 122°F) |
| Operating temperature | -30°C – +50°C (-22°F – 122°F) |
| Storage temperature | -25°C – +60°C (-13°F – 140°F) |
| Operating humidity | 0% – 90% RH |
| Power Supply | DC12V ±10% / PoE (IEEE 802.3af compliant) |
| Power Consumption | DC12V, 7.4W / PoE, 8.2W |
| Dimensions | Ø115 × 91 mm |
| Weight | 435g |
