描述
LILIN PMH-MSR420MX3 是 20MP 360° 多感應器全景網絡鏡頭，四個 5MP 感應器配電動變焦鏡頭（2.7–13.5 mm），紅外最遠 40 米，單一 IP 地址輸出。香港防盜為安裝商及經銷商，規格以原廠為準。

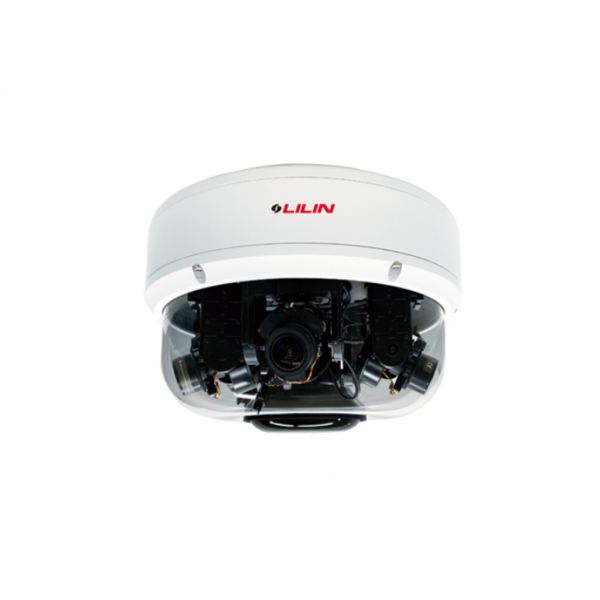

LILIN PMH-MSR420MX3
20MP 360° PTZ Multi-sensor Panoramic Camera with IR
Features
- 360°/270° Coverage for various applications
- Motorized Lens
- IR distance is effective up to 40M
- Single IP Address Output for Ease of Integration with VMS
Specifications
| Pick Up Element | 20MP, 4pcs 1/2.8” 5MP CMOS progressive sensor Sony IMX 335 |
| Focal Length | 4 Motorized Lens 2.7~13.5mm F1.4 Min. Object Distance 1 Meter |
| Angle of View | H: 107°, V: 77°, D:145° |
| Resolution | 2592×1944 to 640×480 each channel |
| Max IR distance | 40M(131ft) if powered by IEEE802.3bt PoE |
| Electrical Shutter | Auto / Manual 1/7~1/20000 |
| White Balance | Auto/Manual |
| Image Effects | Brightness, Contrast, Staturation, Sharpness, Mirror, Flip |
| Video Compression | H.265 / H.264 / M-JPEG |
| Ethernet | 10/100/1000Mbps Ethernet, RJ45 |
| Power Supply | 24V DC, 24V AC 24V DC, 24V AC |
| Weight | 3425g |
| Dimensions | Ø 247.5 mm x 142.3 mm (H) |
| Operating temperature | -40°C ~ 55°C ( -40°F ~ 131°F )(IR OFF) |
| Storage temperature | -40°C ~ 60°C ( -40°F ~ 140°F ) |
| Operating humidity | 90%RH (no condensation) |
