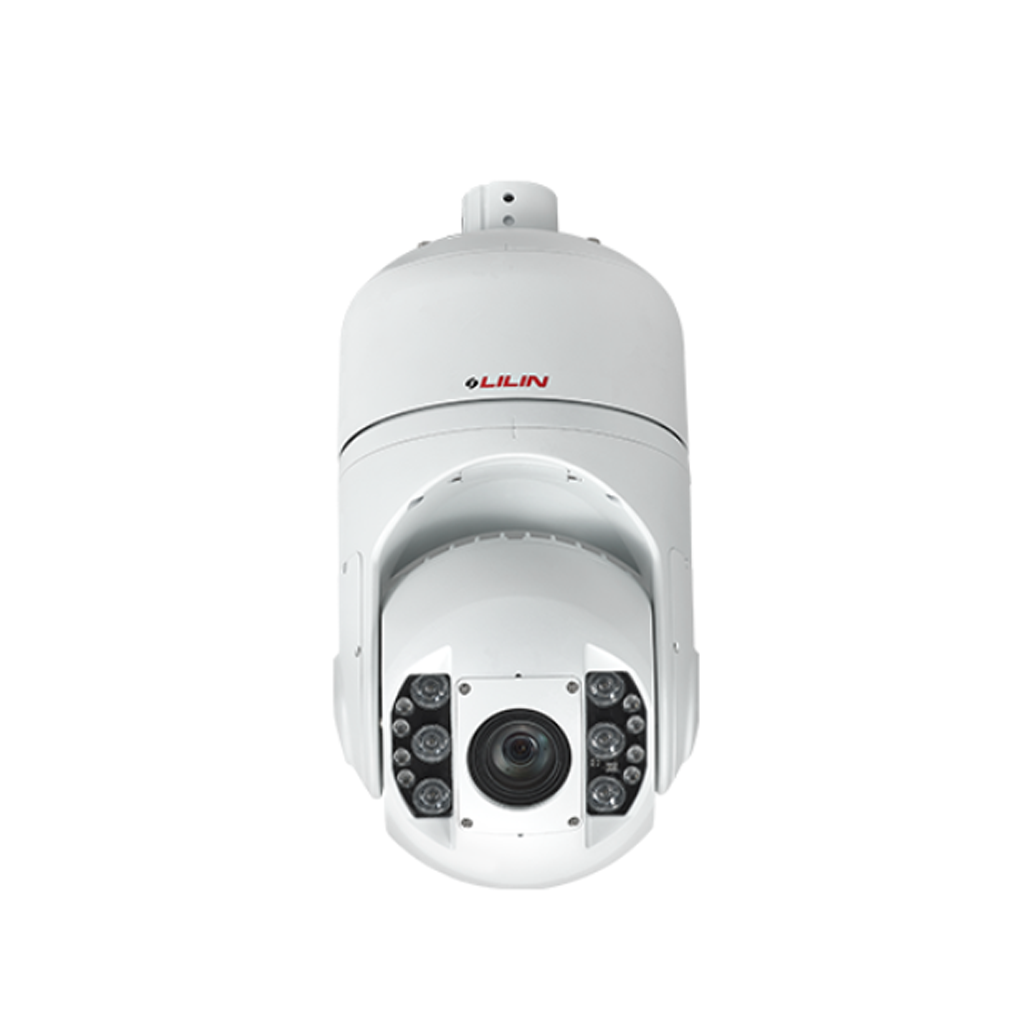

LILIN PSR5528X30
30X 1080P Day & Night 60 FPS IR Vandal Resistant PTZ IP Camera
Features
- 30X Optical Zoom Lens(4.3 – 129.0mm)
- 16X Digital Zoom
- Day & Night (IR cut removable)
- Full HD 2.14 megapixel CMOS image sensor
- 60 FPS @ 1080P True H.264 AVC High Profile video compression
- H.264 and Motion JPEG multi-profile video streaming
- Digital Noise Reduction function
- HDR function up to 90dB
- IVS supported
- Alarm(1 – 4) / Motion / Tamper / Audio / Network loss detection
- Smart event support
- 200-metre infrared night vision
- Digital image stabilization
- Defog function
- Dynamic privacy zone mask
- Horizontal Flip
- 360° Endless panning
- Tilting range up to 210∘
- Up to 256 Programmable Preset Positions
- 2-way audio supported
- ONVIF supported
- RS-485 supported
- Weatherproof IP66
- Vandal resistant approve IK10
- Rain repellent glass
Specifications
| Min. illumination/Low Light Mode (Colour) | 0.5 lux (1/30 sec, F1.6(Wide), 50IRE, AGC-Gain: 30dB ICR-OFF Color mode) 0.2 lux (1/30 sec, F1.6(Wide), 50IRE, AGC-Gain: 30dB ICR-ON B/W mode) 0.1 lux (1/8 sec, F1.6(Wide), 50IRE, AGC-Gain: 30dB ICR-OFF Color mode) 0.01 lux (1/8 sec, F1.6(Wide), 50IRE, AGC-Gain: 30dB ICR-ON B/W mode) 0 Lux with IR LED ON |
| Zoom ratio | 30X Optical |
| Focal Length | 4.3 (WIDE) – 129.0 (TELE) mm |
| Minimum Aperture Ratio | 1 : 1.6 (Wide) – 4.7 (Tele) |
| Iris Range | F1.6 – 32 , Close |
| Iris Control | DC IRIS , ALC ( Adjustable Output Target Level ) / Manual |
| Minimum object distance | 10 cm (WIDE end), 1.5M (TELE end) |
| Angle of View | 64.45°(W) – 2.41°(T) (H) 39.27°(W) – 1.36°(T) (V) – (D) |
| Zoom Speed | 0 – 7 Selectable [ Fast : Approx. 6.0 Second ( Tele to Wide ) in Manual Mode ] |
| Focus Speed | 0 – 7 Selectable [ Fast : Approx. 6.0 Second ( Far to Near ) in Manual Mode ] |
| Focus | Auto ( Continue / Interval / Zoom Trigger / One Push), Manual Focus |
| Peak wavelength | 850nm |
| Beam Spread | Automatically adjusted, Depending on the zoom ratio |
| Max IR distance | 200M |
| Pick Up Element | 1/2.8″ CMOS image sensor |
| Effective pixels | 1944 (H) × 1224 (V) = 2,379,456 (pixels) |
| CPU | Intel® Core™ i3 or higher grade |
| OS | Windows 7 or above |
| RAM | 4GB or above, Dedicated Graphics Card |
| Video Compression | H.264 Main and High Profile, Motion JPEG |
| Resolution | 2MP(1920 × 1080), 1.3MP(1280 × 960), 1MP(1280 × 720), D1(720 × 480, 720 × 576), VGA(640 × 480), CIF(352 × 240) |
| White Balance | ATW / Indoor(3200K) / Outdoor(5800K) / Manual(1800K – 10500K) |
| Electrical Shutter | Auto / manual(1/30(25) – 1/10,000) |
| Image Effects | Contrast, Sharpness, Mirror, Flip, Defog, DIS, Digital Zoom(x16) |
| PTZ Control | Pan , tilt , zoom in / out , absolute position, and video-click-n-move |
| CPU.Memory | Embedded SoC, ARM Cortex-A9 1.0GHz, 512MB DDR3, 256MB flash memory |
| Starting Temperature | – 40°C – + 50°C ( -40°F – 122°F ) |
| Operating temperature | – 40°C – + 50°C ( -40°F – 122°F ) |
| Storage temperature | – 20°C – + 60°C ( -4°F – 160°F ) |
| Operating humidity | 0% – 90% |
| Power Supply | AC100 – 240V ±10% |
| Power Consumption | AC100 – 240V, 46.8W (Heater OFF) AC100 – 240V, 85W (Heater ON) |
| Dimensions | 395 (H) × 198 (D) mm |
| Weight | 7000 g |
