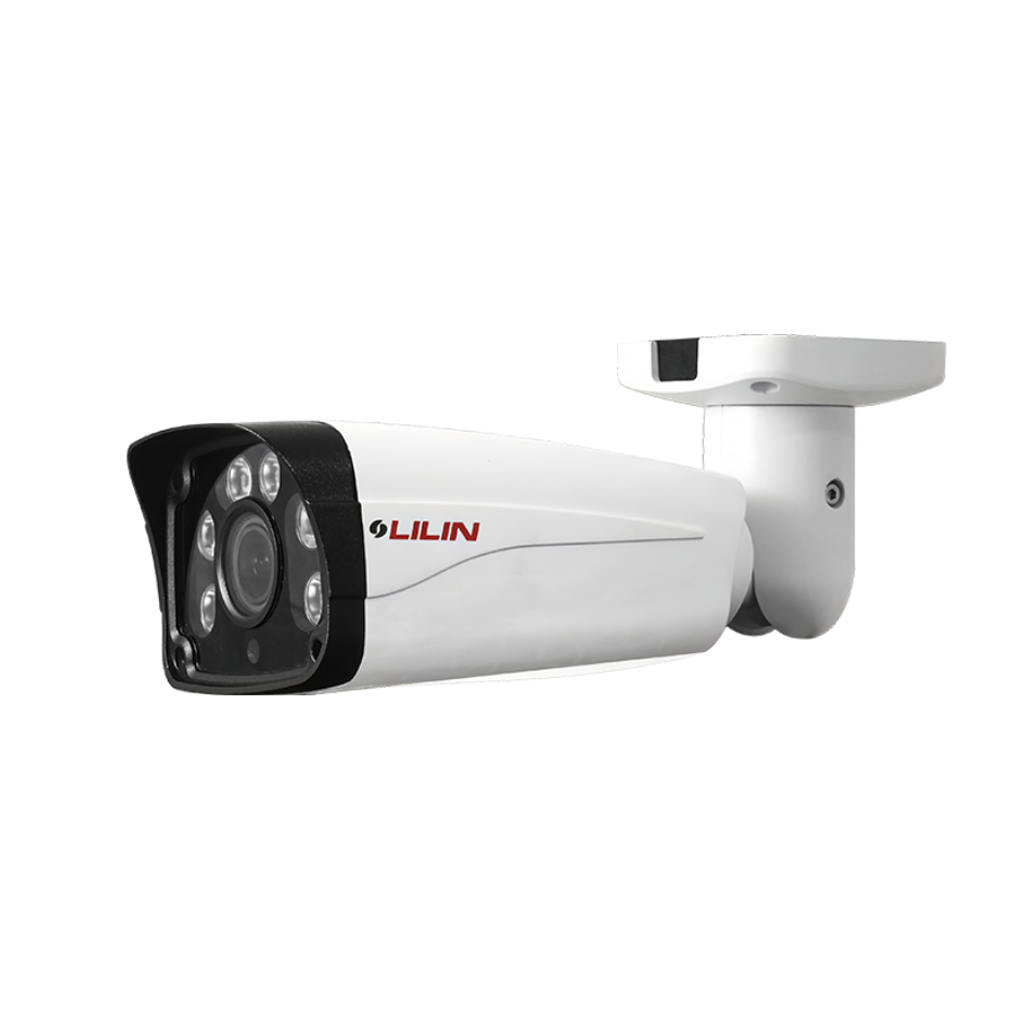

LILIN V1R9552X3

5MP Day & Night Auto Focus IR IP Bullet Camera

5 megapixel CMOS image sensor
5MP H.265/HEVC and H.264/AVC high-performance video compression
Simultaneous streaming of H.265 and H.264 encoded streams
Auto focus with zoom / focus motorized lens
3D noise reduction
2D WDR function
HDR function up to 120dB
IVS
Motion / Tamper / Network lost detection / Global Counter / Virtual Input / Metadata
SMART event
High efficiency IR LED, radiant distance up to 55m
Day & Night (IR cut removable)
ONVIF Profile S , T , G , M supported
IP67 rain and dust resistant
Vandal resistant approve IK10

Min. illumination/Low Light Mode (Colour)	Color: 0.1 Lux at F1.6 ; B/W: 0.01 Lux at F1.6 ; 0 Lux with IR LED ON
Focal Length	2.8 – 12 mm (zoom / focus motorized)
Iris	F1.6 (W) – F3.1 (T)
Iris Control	Fixed IRIS
Angle of View (H)	107.6° (W) – 38.1° (T) (H)
Angle of View (V)	56.5° (W) – 21.4° (T) (V)
Angle of View (D)	129.1° (W) – 43.5° (T) (D)
Peak wavelength	850nm
Beam Spread	60° , 90°
Max IR distance	55M
Pick Up Element	1/2.7″ CMOS image sensor
Effective pixels	2880 (H) × 1620(V) = 4,665,600 (Pixels)
CPU	Intel® Core™ i7 or higher grade
OS	Windows 7 or above
RAM	8GB or above, Dedicated Graphics Card
Video Compression	H.265/HEVC main profile, H.264 main and high profile , Motion JPEG
Resolution	5MP(2880 x 1616), 4MP(2304 × 1728), 3.1MP(2048 × 1536), 3MP(2304 × 1296), 2MP(1920 × 1080), 1.3MP(1280 × 960), 1MP(1280 × 720), D1(720 × 480, 720 × 576), VGA(640 × 480), CIF(352 × 240)
White Balance	Auto / Manual
Electrical Shutter	1/30(1/25)s – 1/30000s
CPU.Memory	Embedded Single core ARM Cortex-A9 960MHz CPU & (DDR 512MB / Flash 128MB)
OS requirement	Embedded Linux 4.19
Starting Temperature	-10°C – +50°C (-14°F – 122°F)
Operating temperature	-30°C – +50°C (-22°F – 122°F)
Storage temperature	-25°C – +60°C (-13°F – 140°F)
Operating humidity	0% – 90% RH
Power Supply	PoE (IEEE 802.3af compliant)
Power Consumption	POE, 9.9W
Dimensions	100(W) x 85(H) x 284(D) mm
Weight	930g
