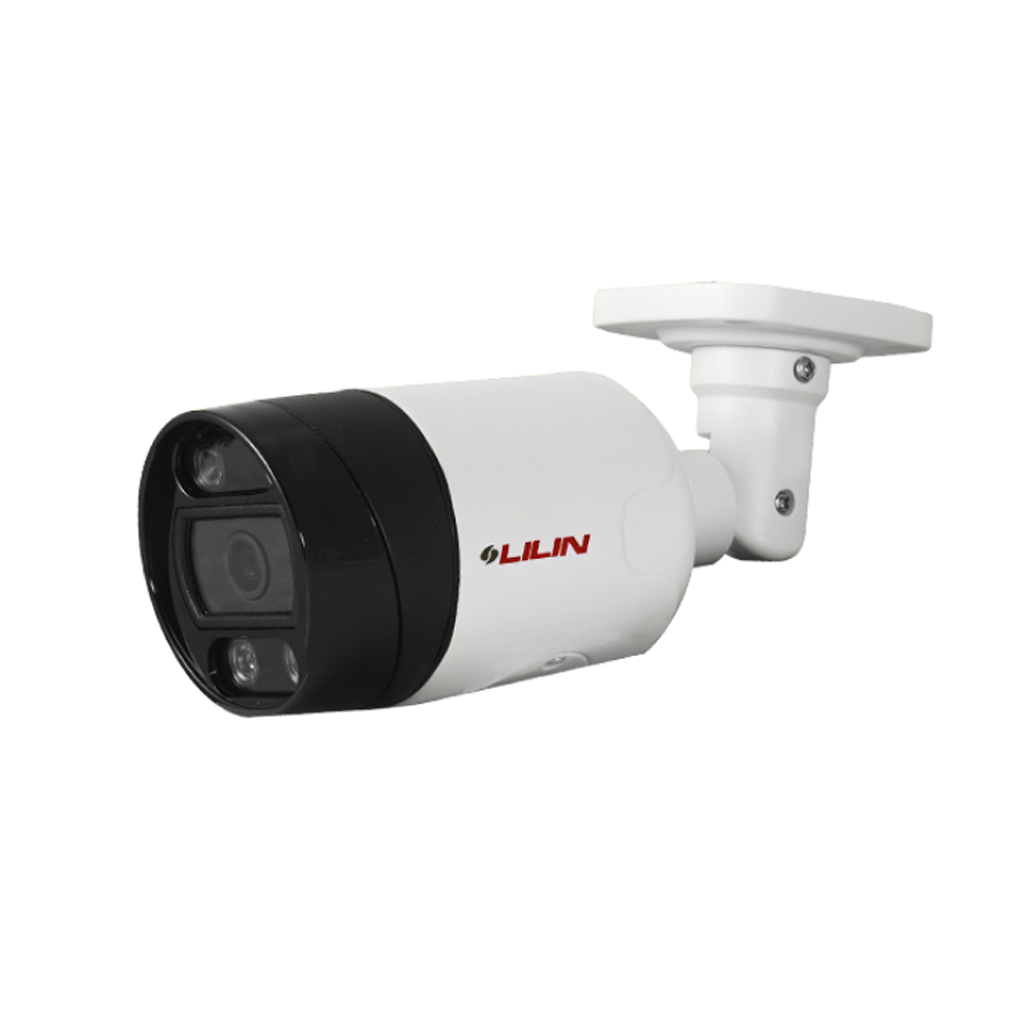

LILIN V1W9452E2
5MP Day & Night Fixed Smart Dual Light Bullet IP Camera
Features
- 5 megapixel CMOS image sensor
- 5MP H.265/HEVC and H.264/AVC high-performance video compression
- Simultaneous streaming of H.265 and H.264 encoded streams
- 3D noise reduction (MCTF)
- 2D WDR function
- HDR function up to 120dB
- IVS • Motion / Tamper / Network lost detection / Global Counter / Virtual Input / Metadata
- SMART event
- High efficiency IR LED, radiant distance up to 30m, WarmLight viewable length up to 25m
- Day & Night (IR cut removable)
- ONVIF Profile S , T , G , M supported
- IP67 rain and dust resistant
- Vandal resistant approve IK10
Specifications
| Min. illumination/Low Light Mode (Colour) | Color : 0.06 Lux at F1.3 ; B/W : 0.007 Lux at F1.3 ; 0 Lux with Light LED ON |
| Focal Length | 2.8mm |
| Iris | F1.3 |
| Iris Control | Fixed IRIS |
| Angle of View | 111.5° (H) , 58.9° (V) , 134.8° (D) |
| Peak wavelength | IR : 850nm, Warm Light : 3000K |
| Beam Spread | 60° , 90° |
| Max IR distance | IR : 30M, Warm Light : 25M |
| Pick Up Element | 1/2.7″ CMOS image sensor |
| Effective pixels | 2880 (H) × 1620(V) = 4,665,600 (Pixels) |
| CPU | Intel® Core™ i7 or higher grade |
| OS | Windows 7 or above |
| RAM | 8GB or above, Dedicated Graphics Card |
| Video Compression | H.265/HEVC main profile, H.264 main and high profile , Motion JPEG |
| Resolution | 5MP(2880 x 1616), 4MP(2304 × 1728), 3.1MP(2048 × 1536), 3MP(2304 × 1296), 2MP(1920 × 1080), 1.3MP(1280 × 960), 1MP(1280 × 720), D1(720 × 480, 720 × 576), VGA(640 × 480), CIF(352 × 240) |
| White Balance | Auto / Manual |
| Electrical Shutter | 1/30(1/25)s – 1/30000s |
| Image Effects | Brightness, Contrast, Hue, Saturation, Sharpness, Mirror, Flip, Rotation, Defog |
| CPU.Memory | Embedded Single core ARM Cortex-A9 960MHz CPU & (DDR 512MB / Flash 128MB) |
| Starting Temperature | -10°C – +50°C (-14°F – 122°F) |
| Operating temperature | -30°C – +50°C (-22°F – 122°F) |
| Storage temperature | -25°C – +60°C (-13°F – 140°F) |
| Operating humidity | 0% – 90% RH |
| Power Supply | PoE (IEEE 802.3af compliant) |
| Power Consumption | POE, 6.9W |
| Dimensions | 70(W) x 70(H) x 193(D) mm |
| Weight | 370g |
