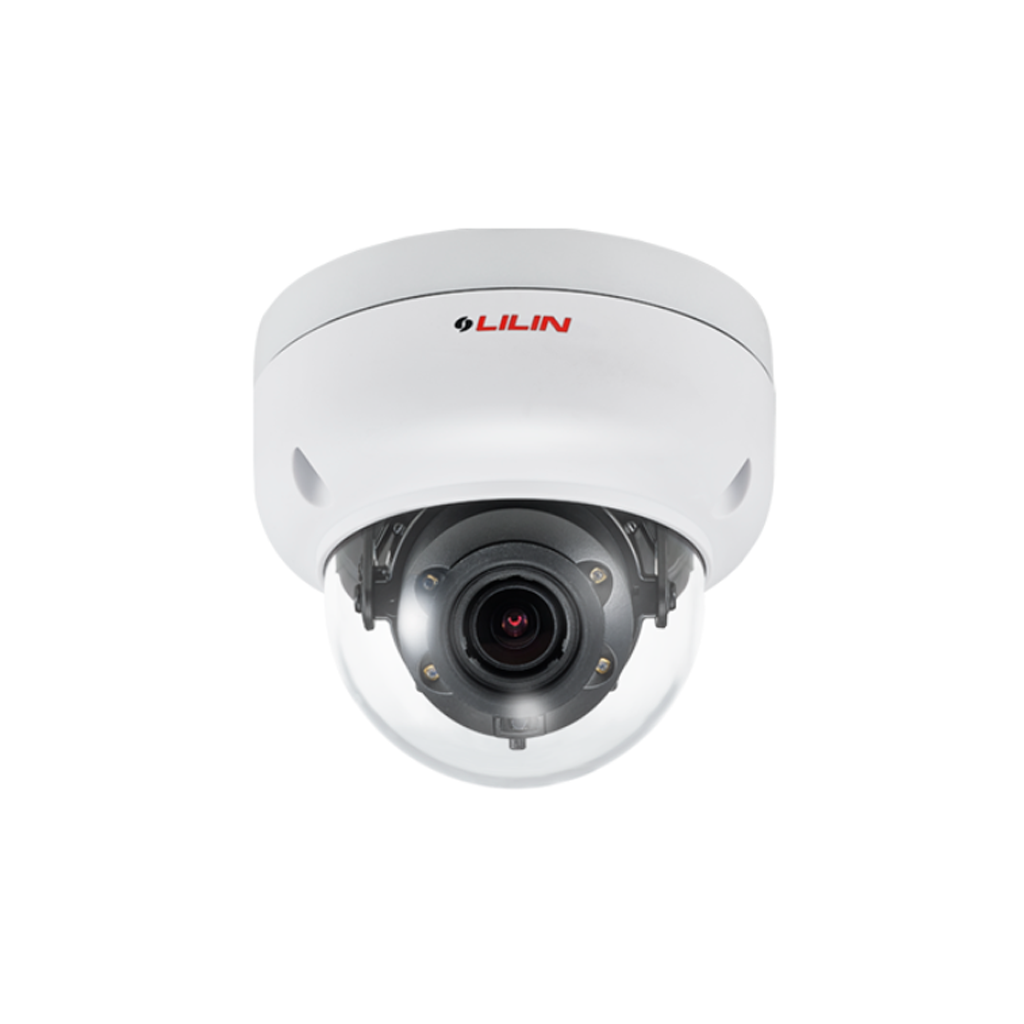

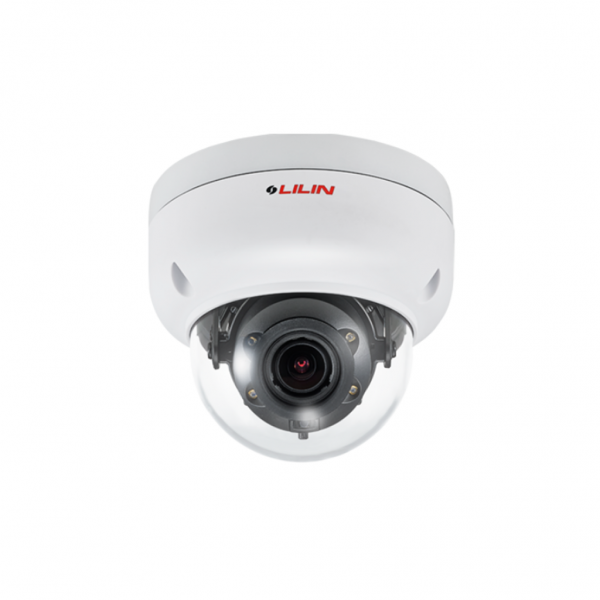

LILIN Z2R6452AX
5MP Day & Night Auto Focus IR Vandal Resistant Dome IP Camera
Features
- 5 megapixel CMOS image sensor
- 5MP H.265/HEVC and H.264/AVC high-performance video compression
- Simultaneous streaming of H.265 and H.264 encoded streams
- Auto focus with zoom / focus motorized lens
- Smart H.264/H.265 supported
- 3D noise reduction (MCTF)
- 2D WDR function
- HDR function up to 120dB
- Digital PTZ supported
- IVS supported
- Tampering / Audio / Alarm / Motion / Network lost detection event function
- SMART event
- High efficiency IR LED, radiant distance up to 30m
- Day & Night (IR cut removable)
- 2-way audio supported
- Digital I/O : 1 in, 1 out
- Impact Resistant Polycarbonate Dome Cover
- 3-Axis construction
- ONVIF Profile S and Profile T supported
- IP67 rain and dust resistant
Specifications
| Min. illumination/Low Light Mode (Colour) | Color : 0.01 Lux at F1.6 ; B/W : 0.005 Lux at F1.6 ; 0 Lux with IR LED ON |
| Focal Length | 2.8 – 8 mm (zoom / focus motorized) |
| Iris | F1.6 |
| Iris Control | Fixed IRIS |
| Angle of View | 95.3° (W) – 51.8°(T) (H) 69.4° (W) – 38.6°(T) (V) 124.2° (W) – 64.6°(T) (D) |
| Peak wavelength | 850nm |
| Beam Spread | 60° , 90° |
| Max IR distance | 30M |
| Pick Up Element | 1/2.8″ CMOS image sensor |
| IP Rating | IP67 |
| Vandal Resistant Rating / IK Rating | IK10 |
| CPU | Intel® Core™ i7 or higher grade |
| OS | Windows 7 or above |
| RAM | 8GB or above, Dedicated Graphics Card |
| Audio Input / Output | Mono, 1.98 Vp-p , 2.2KΩ , Terminal Block |
| Audio | Two-way Audio, G.711 u-law / PCM / AAC, SIP, External Microphone Required |
| Alarm Input / output | Digital 1 input (TTL, +3 – 5VDC) / 1 Output (MOS Relay contact N.O., Load.max. 40VDC,450mW/300mA,450mW), Terminal block |
| Video Compression | H.265/HEVC main profile, H.264 main and high profile , Motion JPEG |
| Video streaming | RTP/HTTP, RTP/TCP, RTP/UDP, Multicast 4 configurable streams in H.265 and H.264 and Motion JPEG, configurable frame rate and bandwidth |
| Number of streams | 4 |
| User accounts | 10 user accounts available |
| Resolution | 5MP(2592 × 1944), 4MP(2304 × 1728), 3.1MP(2048 × 1536), 3MP(2304 × 1296), 2MP(1920 × 1080), 1.3MP(1280 × 960), 1MP(1280 × 720), D1(720 × 480, 720 × 576), VGA(640 × 480), CIF(352 × 240) |
| White Balance | ATW-NARROW / ATW-WIDE / AWC(MANUAL |
| Back Light Compensation | Yes |
| Electrical Shutter | 1/30(1/25)s – 1/30000s |
| Sense Up | Off / x2 / x4 / x8 / x16 |
| Sense Up+ | Yes |
| Auto Gain Control | 60 dB Variable Gain |
| S / N Ratio | More than 50dB (AGC off) |
| 3D Noise Reduction | Off / 1 – 32 Selectable |
| 2D WDR | Off / Auto / x2 / x3 / x4 (by normal mode) Support Onvif |
| High Dynamic Range(HDR) | Up to 120dB (by HDR mode, 2 shutter line interleave) |
| Privacy Masking | Off / On (4 zones) |
| EV (Exposure Value) | Adjustable |
| Protocols | IPv4, IPv6, TCP, UDP, HTTP, HTTPS, SMTP, SIP, MQTT, QoS, SNMP V1/V2/V3, SNMP Trap and heart beat, NTP, DDNS, UPnP, FTP, ARP, DHCP, PPPoE, DNS, RTSP, RTCP, Telnet, ICMP, IGMP, ONVIF Profile S , ONVIF Profile T, SDDP, Bonjour , 802.1x, SSL/TLS |
| Max number of online users | 10 simultaneous users |
| Starting Temperature | -10°C – +50°C (14°F – 122°F) |
| Operating temperature | -40°C – +50°C (-40°F – 122°F) |
| Storage temperature | -25°C – +60°C (-13°F – 140°F) |
| Operating humidity | 0% – 90% RH |
| Power Supply | DC12V ±10% / PoE (IEEE 802.3af compliant) |
| Power Consumption | DC12V, 7.5W / PoE, 9W |
| Dimensions | Ø120 × 106 mm |
| Weight | 760g |
| Casing Material | Aluminum alloy |
