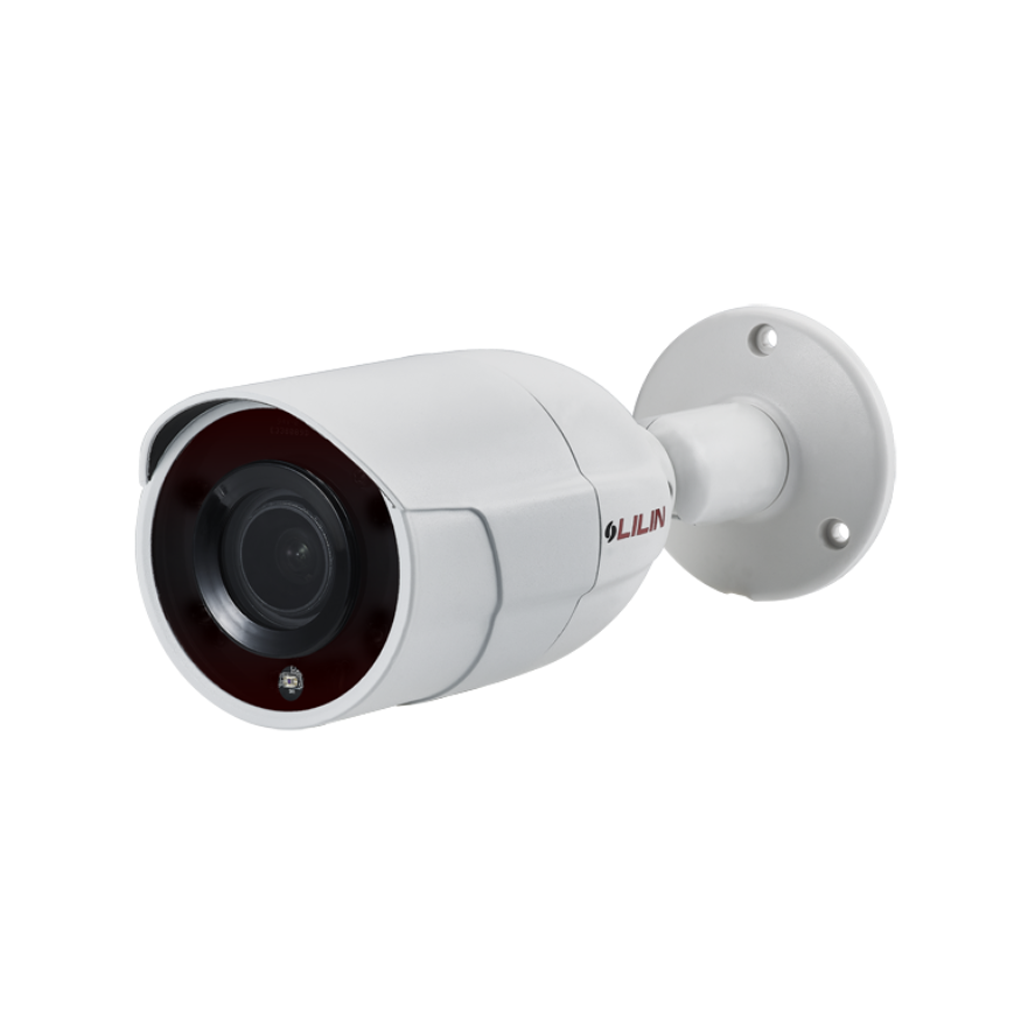

LILIN Z2R8952LPR-H
LPR 5MP Day & Night Auto Focus IR Bullet IP Camera
Features
- 5 megapixel CMOS image sensor
- 5MP H.265/HEVC and H.264/AVC high-performance video compression
- Simultaneous streaming of H.265 and H.264 encoded streams
- Auto focus with zoom / focus motorized lens
- Smart H.264/H.265 supported
- 3D noise reduction (MCTF)
- 2D WDR function
- HDR function up to 120dB
- Digital PTZ supported
- IVS supported
- Tampering / Audio / Alarm / Motion / Network lost detection event function
- SMART event
- High efficiency IR LED, radiant distance up to 35m
- Day & Night (IR cut removable)
- 2-way audio supported
- Digital I/O : 1 in, 1 out
- ONVIF Profile S, Profile T and Profile G supported
- License plate recognition on the edge
- Log list: 1000, denial list: 100, allowed list: 2000, visitor list: 2000 and LPR Snapshot: 100
- IP67 rain and dust resistant
- Vandal resistant approve
- Detection speed: Under 50KM/h.
- Supported countries: EU, UK, Russia ,Belgium, Bosnia, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Israel, Italy, Luxembourg, Macedonia, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Spain, Slovakia, United Kingdom, Vatican City, Slovenia, Sweden, Switzerland, Turkey, Armenia, Azerbaijan, Belarus, Estonia, Georgia, Kazakhstan, Latvia, Lithuania, Moldova, Turkmenistan, Ukraine, Uzbekistan
- Plate number length supported: from 5 to 9 characters (A~Z and 0~9).
- Support limited hour access for recognition
- Built-in database for denial and allowed lists, no need computer can operate alone
- LPR Mapping Table: 1,000 groups of incorrectly recognized license plates can be edited to correct license plates
Specifications
| Min. illumination/Low Light Mode (Colour) | Color : 0.03 Lux at F1.6 ; B/W : 0.006 Lux at F1.6 ; 0 Lux with IR LED ON |
| Focal Length | 7 – 22 mm (zoom / focus motorized) |
| Iris | F1.6 |
| Iris Control | Fixed IRIS |
| Angle of View | 42.4° (W) – 16.9° (T) (H) 31.3° (W) – 12.7° (T) (V) 53.8° (W) – 21.3° (T) (D) |
| Peak wavelength | 850nm |
| Beam Spread | 60° , 90° |
| Max IR distance | 35M |
| Pick Up Element | 1/2.8″ CMOS image senso |
| Effective pixels | 2616 (H) × 1964 (V) = 5,137,824 (Pixels) |
| CPU | Intel® Core™ i7 or higher grade |
| OS | Windows 7 or above |
| RAM | 8GB or above, Dedicated Graphics Card |
| Video Compression | H.265/HEVC main profile, H.264 main and high profile , Motion JPEG |
| Resolution | 5MP(2592 × 1944), 4MP(2304 × 1728), 3.1MP(2048 × 1536), 3MP(2304 × 1296), 2MP(1920 × 1080), 1.3MP(1280 × 960), 1MP(1280 × 720), D1(720 × 480, 720 × 576), VGA(640 × 480), CIF(352 × 240) |
| White Balance | ATW-NARROW / ATW-WIDE / AWC(MANUAL) |
| Electrical Shutter | 1/30(1/25)s – 1/30000s |
| Image Effects | Brightness, Contrast, Hue, Saturation, Sharpness, Mirror, Flip, Rotation, Overexposure Reduction |
| CPU.Memory | Embedded SoC ARM Cortex-A9, 816MHz, 512MB DDR3L, 256MB flash memory |
| Starting Temperature | -10°C – +50°C (14°F – 122°F) |
| Operating temperature | -40°C – +50°C (-40°F – 122°F) |
| Storage temperature | -25°C – +60°C (-13°F – 140°F) |
| Operating humidity | 0% – 90% RH |
| Power Supply | DC12V ±10% / PoE (IEEE 802.3af compliant) |
| Power Consumption | DC12V, 7.1W / PoE, 8.7W |
| Dimensions | Ø75 × 206(D) mm |
| Weight | 575g |
