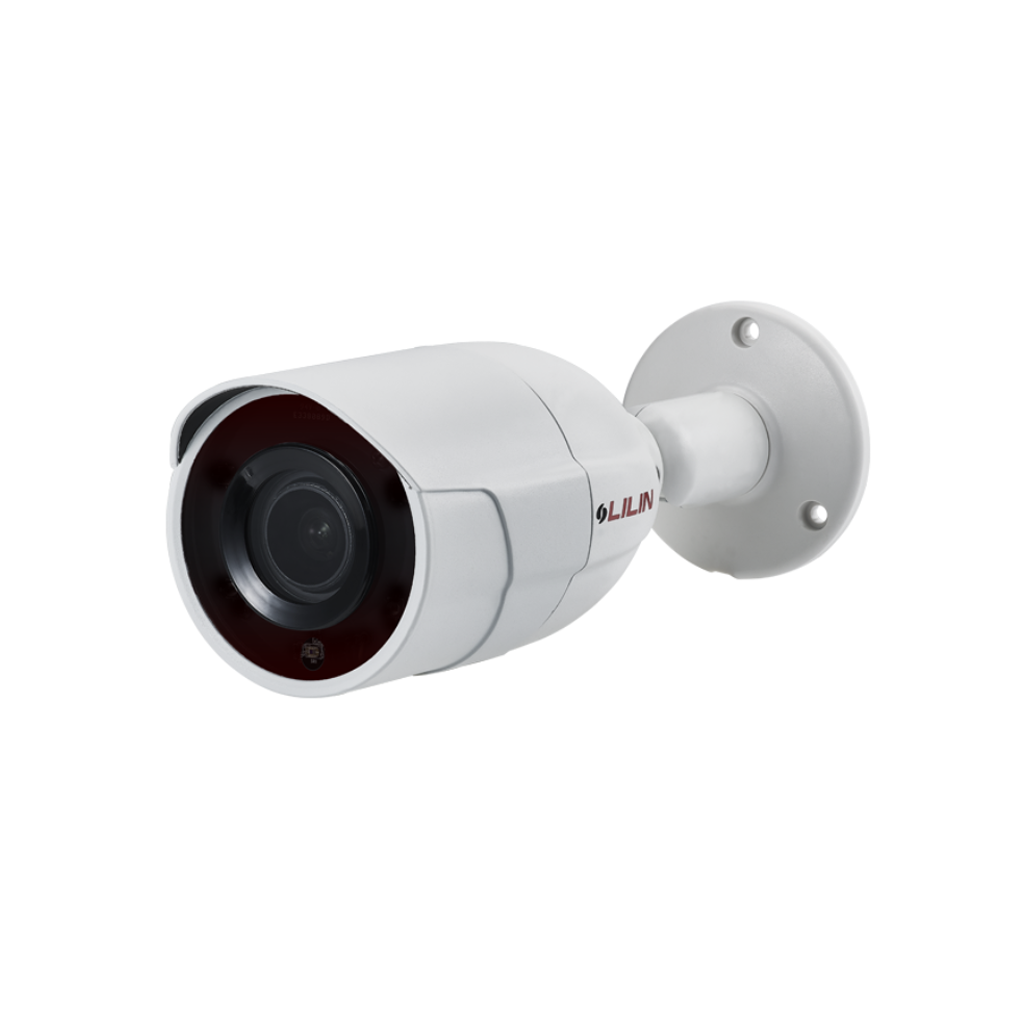

LILIN Z2R8952X-P
5MP Day & Night Auto Focus IR Bullet IP Camer
Features
- 5 megapixel CMOS image sensor
- 5MP H.265/HEVC and H.264/AVC high-performance video compression
- Simultaneous streaming of H.265 and H.264 encoded streams
- Auto focus with zoom / focus motorized lens
- Smart H.264/H.265supported
- 3D noise reduction (MCTF)
- 2D WDR function
- HDR function up to 120dB
- Digital PTZ supported
- IVS supported
- Tampering / Audio / Alarm / Motion / Network lost detection event function
- SMART event
- High efficiency IR LED, radiant distance up to 35m
- Day & Night (IR cut removable)
- 2-way audio supported
- Digital I/O : 1 in, 1 out
- ONVIF Profile S, Profile T and Profile Gsupported
- IP67 rain and dust resistant
- Vandal resistant approve
Specifications
Min. illumination/Low Light Mode (Colour) | Color : 0.03 Lux at F1.4 ; B/W : 0.006 Lux at F1.4 ; 0 Lux with IR LED ON |
Focal Length | 2.8 – 12 mm (zoom / focus motorized) |
Iris | F1.4 (W) – F2.8 (T) |
Iris Control | P-IRIS |
Angle of View | 91.6° (W) – 34.9°(T) (H) 68.6° (W) – 29.3°(T) (V) 119.6° (W) – 48.5°(T) (D) |
Peak wavelength | 850nm |
Beam Spread | 60°, 90° |
Max IR distance | 35M |
Pick Up Element | 1/2.8″ CMOS image sensor |
Effective pixels | 2616 (H) × 1964 (V) = 5,137,824 (Pixels) |
IP Rating | IP67 |
Vandal Resistant Rating / IK Rating | IK10 |
CPU | Intel® Core™ i7 or higher grade |
OS | Windows 7 or above |
RAM | 8GB or above, Dedicated Graphics Card |
Audio Input / Output | Mono, 1.98 Vp-p , 2.2KΩ , Terminal Block |
Audio | Two-way Audio, G.711 u-law / PCM / AAC, SIP, External Microphone Required |
Alarm Input / output | Digital 1 input (TTL, +3 – 5VDC) / 1 Output (MOS Relay contact N.O., Load.max. 40VDC,450mW/300mA,450mW), Terminal block |
Video Compression | H.265/HEVC main profile, H.264 main and high profile , Motion JPEG |
Video streaming | RTP/HTTP, RTP/TCP, RTP/UDP, Multicast 4 configurable streams in H.265 and H.264 and Motion JPEG, configurable frame rate and bandwidth |
Number of streams | 4 |
User accounts | 10 user accounts available |
Resolution | 5MP(2592 × 1944), 4MP(2304 × 1728), 3.1MP(2048 × 1536), 3MP(2304 × 1296), 2MP(1920 × 1080), 1.3MP(1280 × 960), 1MP(1280 × 720), D1(720 × 480, 720 × 576), VGA(640 × 480), CIF(352 × 240) |
Maximum Frame Rate | Normal mode: up to 25 fps @ 2592 × 1944 HDR mode: up to 25 fps @ 2592 × 1944 |
White Balance | ATW-NARROW / ATW-WIDE / AWC(MANUAL) |
Back Light Compensation | Yes |
Electrical Shutter | 1/30(1/25)s – 1/30000s |
Sense Up | Off / x2 / x4 / x8 / x16 |
Sense Up+ | Yes |
Auto Gain Control | 60 dB Variable Gain |
S / N Ratio | More than 50dB (AGC off) |
3D Noise Reduction | Off / 1 – 32 Selectable |
2D WDR | Off / Auto / x2 / x3 / x4 (by normal mode) Support Onvif |
High Dynamic Range(HDR) | Up to 120dB (by HDR mode, 2 shutter line interleave) |
Privacy Masking | Off / On (4 zones) |
EV (Exposure Value) | Adjustable |
Protocols | IPv4, IPv6, TCP, UDP, HTTP, HTTPS, SMTP, SIP, MQTT, QoS, SNMP V1/V2/V3, SNMP Trap and heart beat, NTP, DDNS, UPnP, FTP, ARP, DHCP, PPPoE, DNS, RTSP, RTCP, Telnet, ICMP, IGMP, ONVIF Profile S, ONVIF Profile T, ONVIF Profile G, SDDP, Bonjour , 802.1x, SSL/TLS |
Max number of online users | 10 simultaneous users |
Starting Temperature | -10°C – +50°C (14°F – 122°F) |
Operating temperature | -40°C – +50°C (-40°F – 122°F) |
Storage temperature | -25°C – +60°C (-13°F – 140°F) |
Operating humidity | 0% – 90% RH |
Power Supply | DC12V ±10% / PoE (IEEE 802.3af compliant) |
Power Consumption | DC12V, 7.4W / PoE, 8.7W |
Dimensions | 75(W) × 75(H) × 206(D) mm |
Weight | 575g |
Casing Material | Aluminum alloy |
