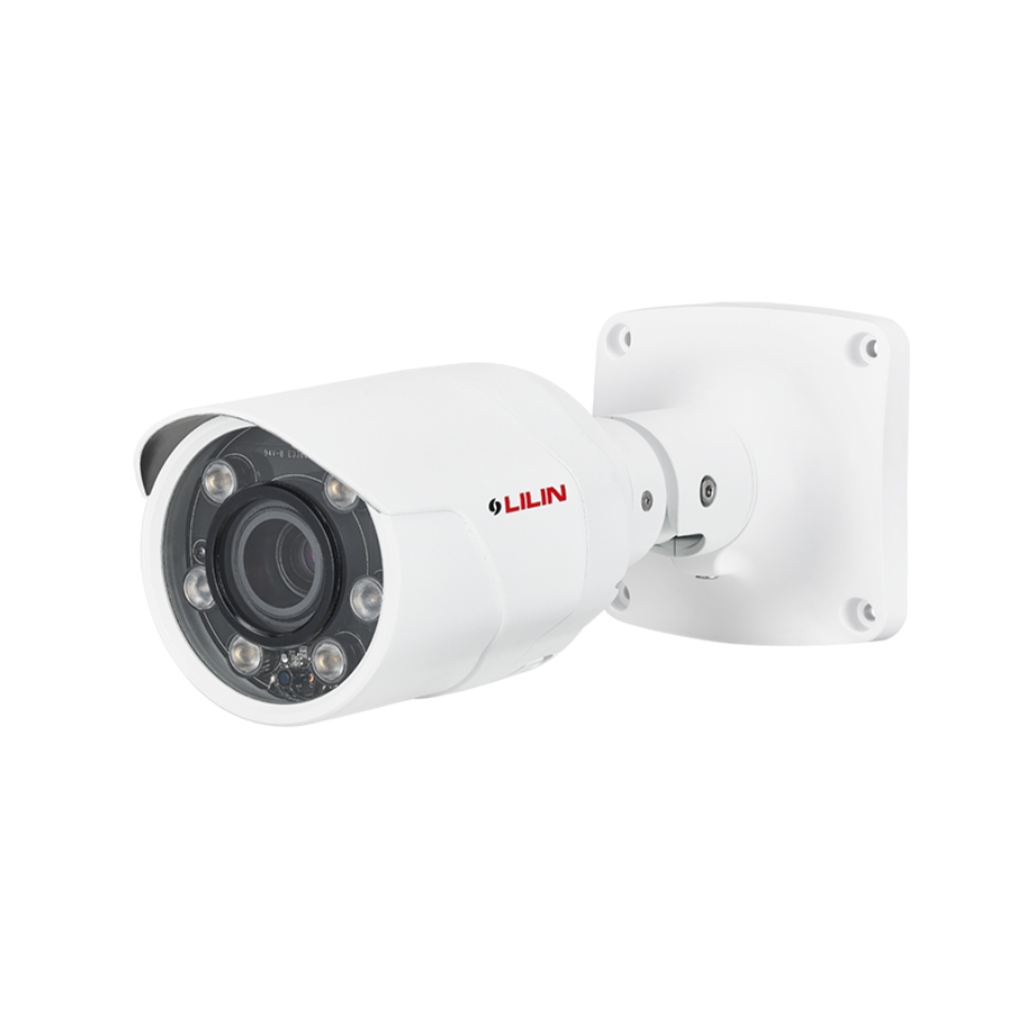

LILIN Z6R8152X3-P
5MP Day & Night Auto Focus IR Vandal Resistant Bullet IP Camera
Features
- 5M megapixel CMOS image sensor
- 5MP H.265/HEVC and H.264/AVC high-performance video compression
- Simultaneous streaming of H.265 and H.264 encoded streams
- Auto focus with zoom / focus motorized lens
- P-IRIS • 3D noise reduction (MCTF)
- 2D WDR function
- HDR function
- IVS / AI supported
- Motion / Tamper / Audio / Alarm / Network lost detection / Global Counter / Virtual Input / Metadata
- SMART event • High efficiency IR LED, radiant distance up to 55m
- Day & Night (IR cut removable)
- Digital I/O : 1 in, 1 out
- ONVIF Profile S , T , G , M supported
- IP68 rain and dust resistant
- Vandal resistant approve IK10
- Transparent dome cover
- Defog function
- privacy zone mask Support
Specifications
| Min. illumination/Low Light Mode (Colour) | Color: 0.1 Lux at F1.6 ; B/W: 0.03 Lux at F1.6 ; 0 Lux with IR LED ON |
| Focal Length | 2.8 – 12 mm (zoom / focus motorized) |
| Iris | F1.6 (W) – F3.3 (T) |
| Iris Control | P-IRIS |
| Angle of View (H) | 102.8° (W) – 32° (T) (H) |
| Angle of View (V) | 55.2° (W) – 17.8° (T) (V) |
| Angle of View (D) | 120.2° (W) – 36.3° (T) (D) |
| Peak wavelength | 850nm |
| Beam Spread | 60°, 90° |
| CPU | Intel® Core™ i7 or higher grade |
| OS | Windows 7 or above |
| RAM | 8GB or above, Dedicated Graphics Card |
| Video Compression | H.265/HEVC main profile, H.264 main and high profile , Motion JPEG |
| Resolution | 5MP(2880 x 1616), 4MP(2304 × 1728), 3.1MP(2048 × 1536), 3MP(2304 × 1296), 2MP(1920 × 1080), 1.3MP(1280 × 960), 1MP(1280 × 720), D1(720 × 480, 720 × 576), VGA(640 × 480), CIF(352 × 240) |
| Maximum Frame Rate | Normal mode : 60Hz: 30 FPS @ 2880 x 1616 50Hz: 25 FPS @ 2880 x 1616 HDR mode : 60Hz: 30 FPS @ 2880 x 1616 50Hz: 25 FPS @ 2880 x 1616 |
| White Balance | Auto / Manual |
| Electrical Shutter | 1/30(1/25)s – 1/30000s |
| Image Effects | Brightness, Contrast, Hue, Saturation, Sharpness, Mirror, Flip, Rotation, Defog |
| CPU.Memory | Embedded Dual-core ARM Cortex-A9 1.2GHz CPU & (DDR 1024MB/Flash 512MB) |
| Starting Temperature | -10°C – +50°C (-14°F – 122°F) |
| Operating temperature | -30°C – +50°C (-22°F – 122°F) |
| Storage temperature | -25°C – +60°C (-13°F – 140°F) |
| Operating humidity | 0% – 90% RH |
| Power Supply | DC12V ±10% / PoE+ (IEEE 802.3at compliant) |
| Power Consumption | DC12V, 14.6W / PoE+, 15.9W |
| Dimensions | 103(W) × 103(H) × 258(D) mm |
| Weight | 1120g |
