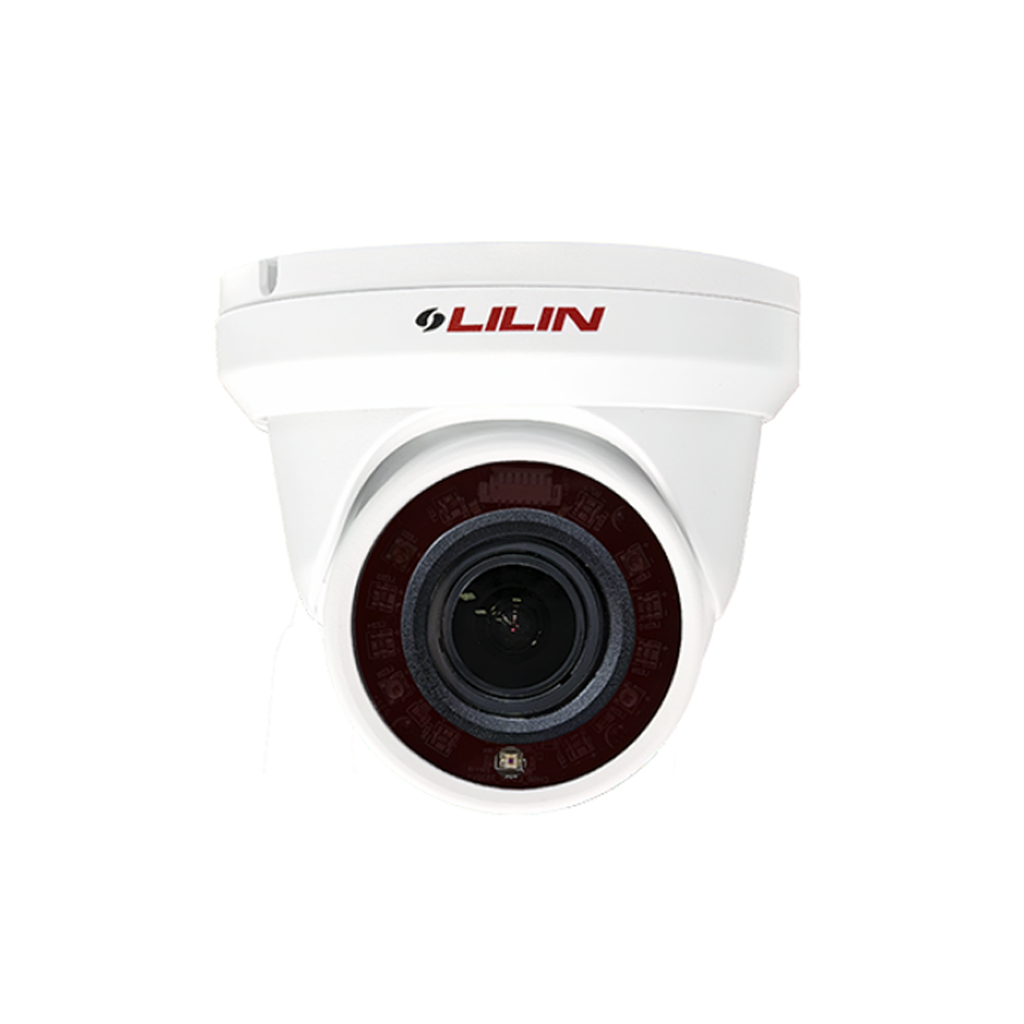

LILIN Z6W4582X3
4K Day & Night Auto Focus Smart Dual Light Turret IP Camera
Features
- Ultra HD 8M megapixel CMOS image sensor
- 8MP H.265/HEVC and H.264/AVC high-performance video compression
- Simultaneous streaming of H.265 and H.264 encoded streams
- Auto focus with zoom / focus motorized lens
- 3D noise reduction (MCTF)
- 2D WDR function
- HDR function up to 140dB
- IVS / AI supported
- Motion / Tamper / Audio / Alarm / Network lost detection / Global Counter / Virtual Input / Metadata
- SMART event
- High efficiency IR LED, radiant distance up to 40m, WarmLight viewable length up to 40m
- Day & Night (IR cut removable)
- Built-in highly sensitive microphone
- 2-way audio supported
- Digital I/O : 1 in, 1 out
- ONVIF Profile S , T , G , M supported
- IP67 rain and dust resistant
- Vandal resistant approve IK10
Specifications
| Min. illumination/Low Light Mode (Colour) | Color: 0.01 Lux at F1.35 ; B/W: 0.005 Lux at F1.35 ; 0 Lux with Light LED ON |
| Focal Length | 2.8 – 12 mm (zoom / focus motorized) |
| Iris | F1.4 (W) – F2.2 (T) |
| Iris Control | Fixed IRIS |
| Angle of View | 109.8° (W) – 46.2° (T) (H) , 57.2° (W) – 25.9° (T) (V) , 126.3° (W) – 53° (T) (D) |
| Peak wavelength | IR : 850nm, Warm Light : 3000K |
| Beam Spread | 60° , 90° |
| Max IR distance | IR : 40M, Warm Light : 40M |
| Pick Up Element | 1/1.8″ CMOS image sensor |
| Effective pixels | 3856 (H) × 2176(V) = 8,390,656 (Pixels) |
| CPU | Intel® Core™ i7 or higher grade |
| OS | Windows 7 or above |
| RAM | 8GB or above, Dedicated Graphics Card |
| Video Compression | H.265/HEVC main profile, H.264 main and high profile , Motion JPEG |
| Resolution | 4K(3840 × 2160), 6M(3072 × 2048), 5MP(2592 × 1944), 4MP(2304 × 1728), 3.1MP(2048 × 1536), 3MP(2304 × 1296), 2MP(1920 × 1080), 1.3MP(1280 × 960), 1MP(1280 × 720), D1(720 × 480, 720 × 576), VGA(640 × 480), CIF(352 × 240) |
| White Balance | Auto / Manual |
| Electrical Shutter | 1/30(1/25)s – 1/30000s |
| Image Effects | Brightness, Contrast, Hue, Saturation, Sharpness, Mirror, Flip, Rotation, Defog |
| CPU.Memory | Embedded Dual-core ARM Cortex-A9 1.2GHz CPU & (DDR 1024MB/Flash 512MB) |
| Starting Temperature | -10°C – +50°C (-14°F – 122°F) |
| Operating temperature | -30°C – +50°C (-22°F – 122°F) |
| Storage temperature | -25°C – +60°C (-13°F – 140°F) |
| Operating humidity | 0% – 90% RH |
| Power Supply | DC12V ±10% / PoE (IEEE 802.3af compliant) |
| Power Consumption | DC12V, 8.7W / PoE, 10.1W |
| Dimensions | Ø111 x 120(H) mm |
| Weight | 500g |
