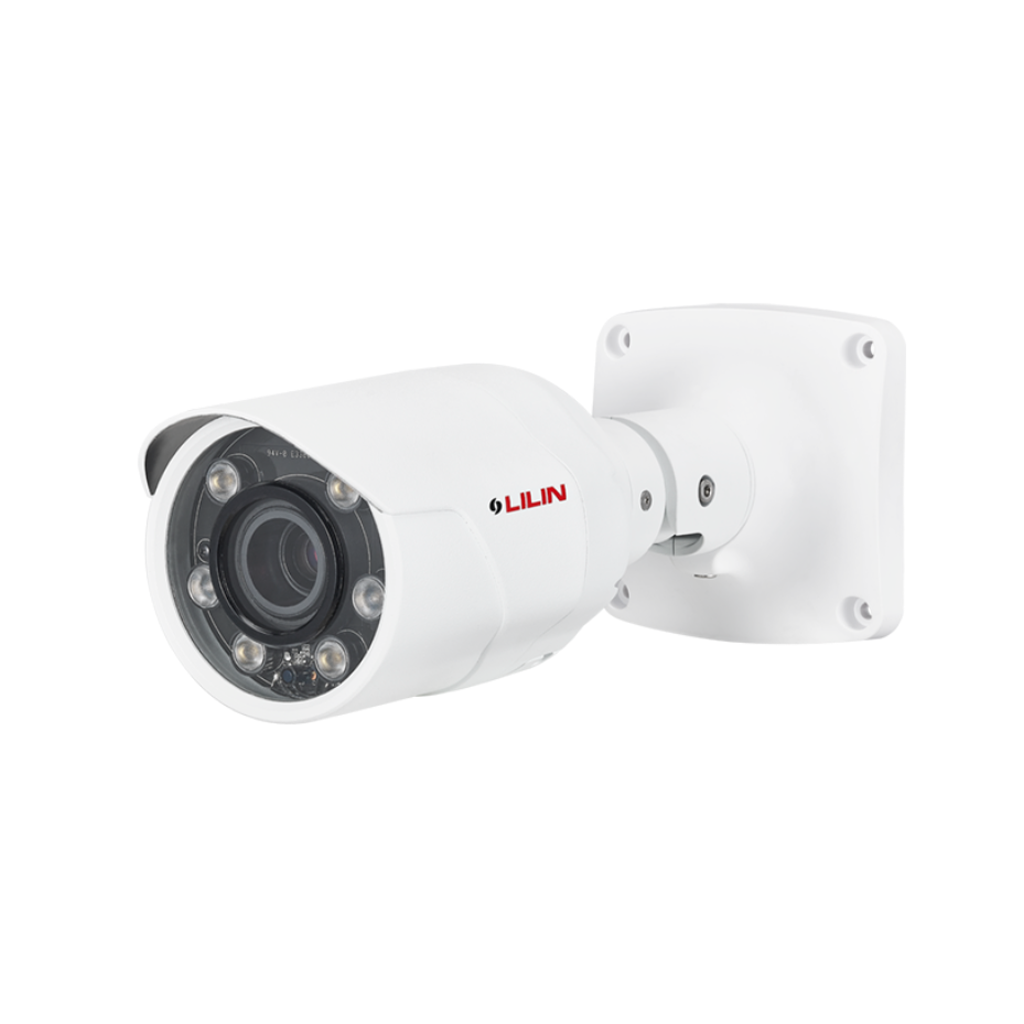

LILIN Z7R8182X3-P
Starvis 4K P-Iris Auto Focus IR AI Smart IP Camera
Features
- 8MP H.265/HEVC and H.264/AVC high-performance video compression
- Simultaneous streaming of H.265 and H.264 encoded streams
- Auto focus with zoom / focus motorized lens
- P-IRIS supported
- 3D noise reduction (MCTF)
- HDR function up to 140dB
- Digital PTZ supported
- AI supported (need purchase license)
- Motion / Tamper / Audio / Alarm / Network lost detection / Global Counter / Virtual Input / Metadata
- SMART event
- High efficiency IR LED, radiant distance up to 55m
- Day & Night (IR cut removable
- 2-way audio supported
- Digital I/O : 1 in, 1 out
- Cable managed housing and bracket
- ONVIF Profile S, Profile T and Profile G, Profile M supported
- IP68 rain and dust resistant
- Vandal resistant approve IK10
Specifications
| Min. illumination/Low Light Mode (Colour) | Color : 0.04 Lux at F1.6 ; B/W : 0.008 Lux at F1.6 ; 0 Lux with IR LED ON |
| Focal Length | 2.8 – 12mm (zoom / focus motorized) |
| Iris | F1.6 (W) – F3.3 (T) |
| Iris Control | P-IRIS |
| Angle of View | 108.0° (W) – 31.5° (T) (H) , 56.3° (W) – 18.0° (T) (V) , 130.8° (W) – 36.7° (T) (D) |
| Peak wavelength | 850nm, White LED |
| Beam Spread | 60° , 90° |
| Max IR distance | 55M |
| Pick Up Element | 1/2.8″ CMOS image sensor |
| Effective pixels | 3864 (H) × 2176 (V) = 8,408,064 (Pixels) |
| CPU | Intel® Core™ i7 or higher grade |
| OS | Windows 7 or above |
| RAM | 8GB or above, Dedicated Graphics Card |
| Video Compression | H.265/HEVC main profile, H.264 main and high profile , Motion JPEG |
| Resolution | 4K(3840 × 2160), 6M(3072 × 2048), 5MP(2592 × 1944), 4MP(2304 × 1728), 3.1MP(2048 × 1536), 3MP(2304 × 1296), 2MP(1920 × 1080), 1.3MP(1280 × 960), 1MP(1280 × 720), D1(720 × 480, 720 × 576), VGA(640 × 480), CIF(352 × 240) |
| White Balance | Auto / Manual one push |
| Electrical Shutter | 1/30(1/25)s – 1/20000s |
| Image Effects | Brightness, Contrast, Hue, Saturation, Sharpness, Mirror, Flip, Rotation, Overexposure Reduction |
| CPU.Memory | Embedded Quad-core ARM Cortex-A53 1.0GHz CPU & 2GB LPDDR4X, 8GB e.MMC memory |
| Starting Temperature | -10°C – +50°C (14°F – 122°F) |
| Operating temperature | -40°C – +50°C (-40°F – 122°F) |
| Storage temperature | -25°C – +60°C (-13°F – 140°F) |
| Operating humidity | 0% – 90% RH |
| Power Supply | DC12V ±10% (Terminal connector) / PoE+ (IEEE 802.3at compliant) |
| Power Consumption | DC12V,13.2W / PoE+, 14.0W |
| Dimensions | 103(W) × 103(H) × 258(D) mm |
| Weight | 1120g |
