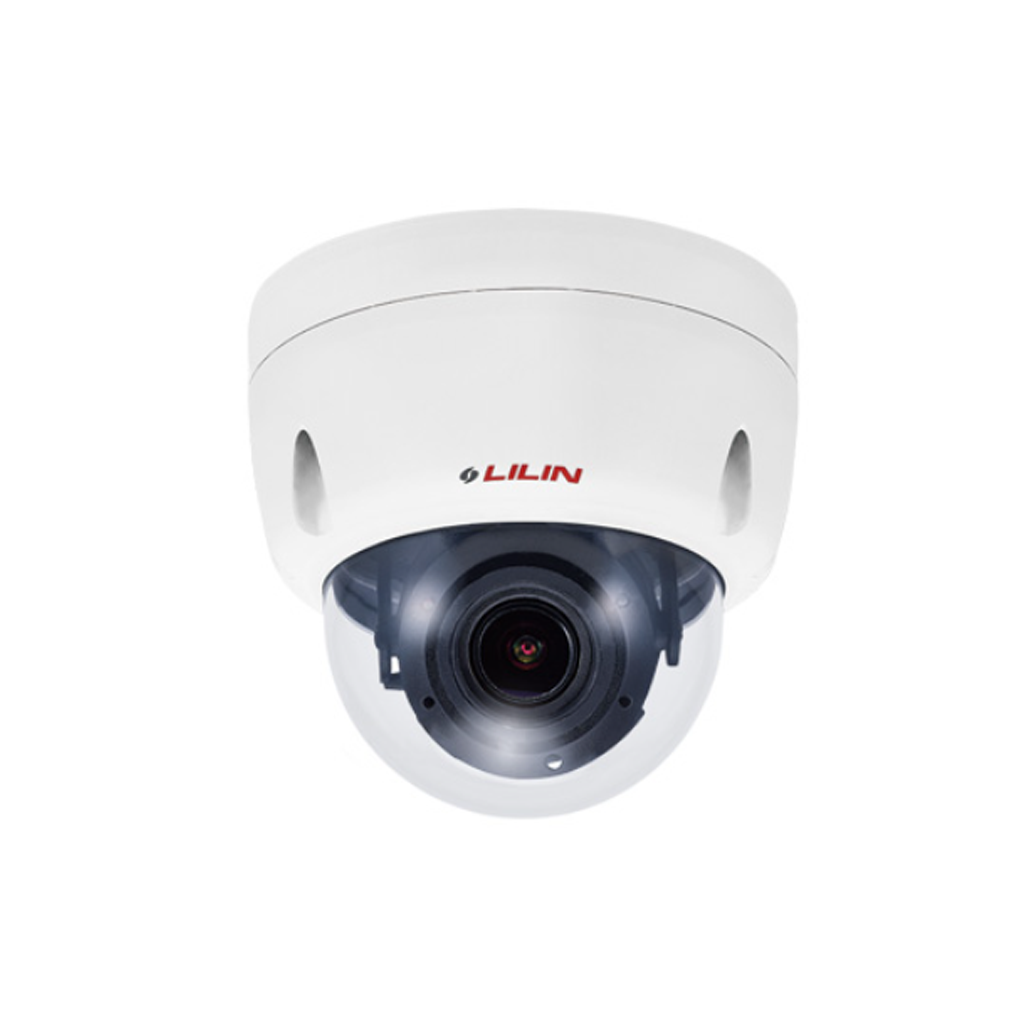

LILIN ZHR6482EX2
4K Day & Night Auto Focus IR Vandal Resistant IP Dome Camera
Features
- 4K Ultra High Definition resolution
- 4K True H.264 AVC High Profile video compression
- H.264 and Motion JPEG multi-profile video streaming
- Auto focus with zoom / focus motorized lens
- 3D noise reduction (MCTF)
- 2D WDR function
- HDR function up to 100dB
- Digital PTZ supported
- IVS supported
- Motion / Tamper / Audio / Alarm / Network lost detection function
- High efficiency IR LED, radiant distance up to 30m
- Day & Night (IR cut removable)
- 2-way audio supported
- Digital I/O : 1 in, 1 out
- Impact Resistant Polycarbonate Dome Cover
- 3-Axis construction
- ONVIF Profile S supported
- IP67 rain and dust resistant
- Vandal resistant approve
Specifications
| Min. illumination/Low Light Mode (Colour) | Color : 0.5 Lux at F1.5 ; B/W : 0.05 Lux at F1.5 ; 0 Lux with IR LED ON |
| Starting Temperature | -10°C – +50°C (14°F – 122°F) |
| Operating temperature | -40°C – +50°C (-40°F – 122°F) |
| Storage temperature | -25°C – +60°C (-13°F – 140°F) |
| Operating humidity | 0% – 90% RH |
| Power Supply | DC12V ±10% / PoE (IEEE 802.3af compliant) |
| Power Consumption | DC12V, 9.5W / PoE, 10.5W |
| Focal Length | 3.6mm – 10mm (zoom / focus motorized) |
| Iris | F1.5(W) – F2.8(T) |
| Iris Control | DC-IRIS |
| Angle of View | 98° (W) – 42° (T) (H) 54° (W) – 24° (T) (V) 113° (W) – 48° (T) (D) |
| Peak wavelength | 850nm |
| Beam Spread | 60°, 90° |
| Max IR distance | 30M |
| Pick Up Element | 1/1.7″ CMOS image sensor |
| Effective pixels | 4072 (H) × 3046 (V) = 12,403,312 (Pixels) |
| CPU | Intel® Core™ i5 or higher grade |
| OS | Windows 7 or above |
| RAM | 8GB or above, Dedicated Graphics Card |
| Dimensions | Ø 120 × 106 mm |
| Weight | 720g |
| Video Compression | H.264 main and high profile, Motion JPEG |
| Resolution | 4K(3840 x 2160), 2MP(1920 × 1080), 1.3MP(1280 × 960), 1MP(1280 × 720), D1(720 × 480, 720 × 576), VGA(640 × 480), CIF(352 × 240) |
| White Balance | Auto / Tungsten / Indoor / Fluorescents1 / Fluorescents2 / Outdoor1 / Custom |
| Electrical Shutter | 1/30(1/25)s – 1/30000s |
| Image Effects | Brightness, Contrast, Hue, Saturation, Sharpness, Mirror, Flip |
| CPU.Memory | Embedded SoC 1.0GHz Dual ARM Cortex-A9 & 600MHz ARM11, 1GB DDR3, 256MB flash memory |
