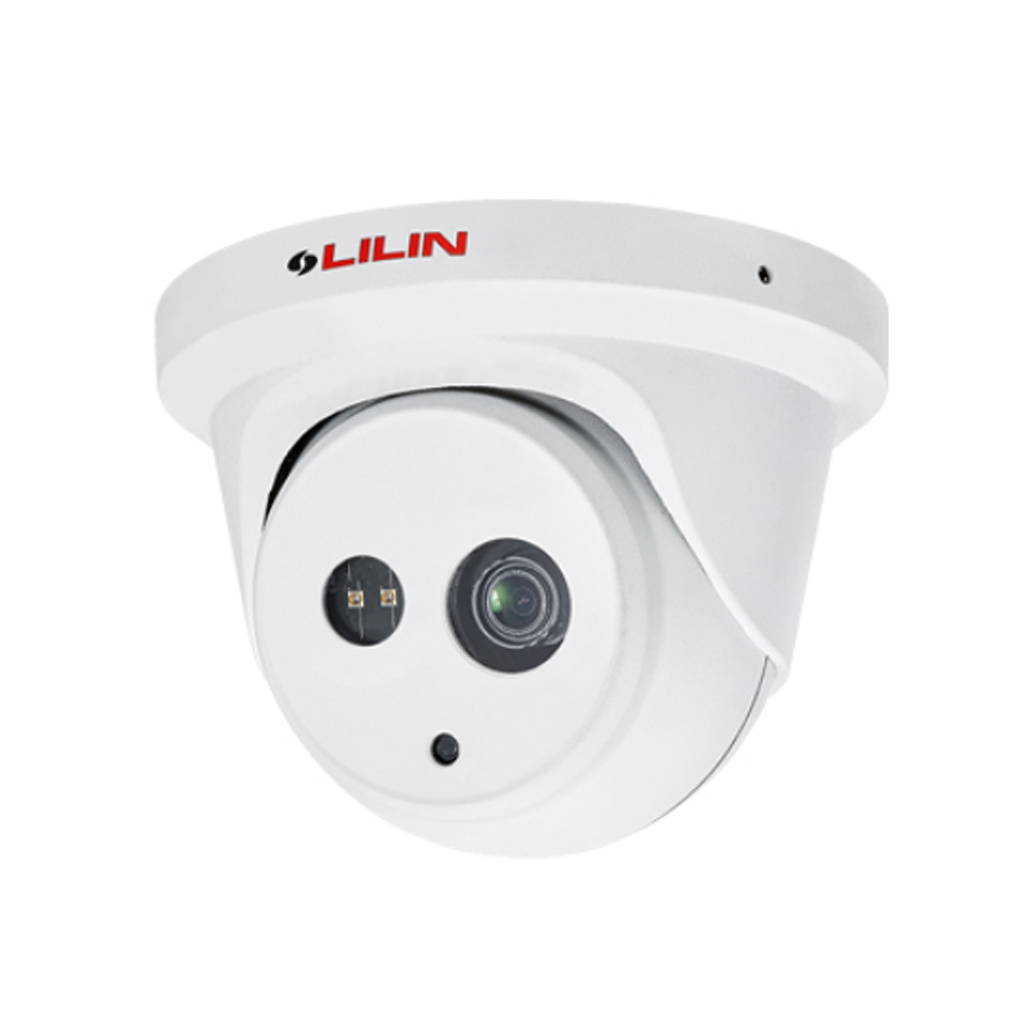

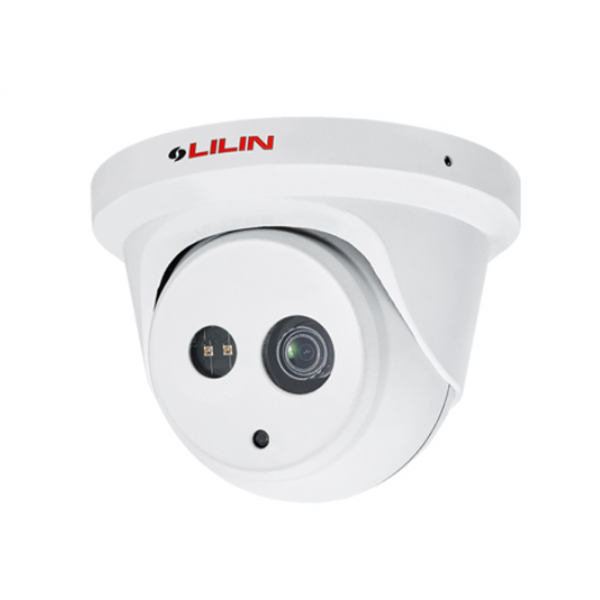

LILIN ZMR6522X
1080P Day & Night Auto Focus IR Vandal Resistant IP Dome Camera
Features
- Full HD 2.0 megapixel CMOS image sensor
- 1080P True H.264 AVC High Profile video compression
- H.264 and Motion JPEG multi-profile video streaming
- Auto focus with zoom / focus motorized lens
- Smart H.264 supported
- 3D noise reduction (MCTF)
- 2D WDR function
- HDR function up to 100dB
- Digital PTZ supported
- IVS supported
- Tampering / Motion detection alarm function
- High efficiency IR LED, radiant distance up to 30m
- Day & Night (IR cut removable)
- ONVIF Profile S supported
Specifications
| Pick Up Element | 1/2.8″ CMOS image sensor |
| Effective pixels | 1945 (H) x 1097 (V) = 2,133,665 (pixels) |
| Video Compression | H.264 Main and High Profile, Motion JPEG |
| Resolution | 1080p HD ( 1920×1080 ) , 720p HD ( 1280×960, 1280×720 ) , D1 ( 720×480, 720×576 ) , CIF ( 640×480, 352×240 ) |
| Maximum Frame Rate | H.264 / Motion JPEG: up to 30 fps @ 1920×1080 |
| Focal Length | 2.8 – 8 mm (zoom / focus motorized) |
| Iris | F1.6 |
| Angle of View | H : 102.3° (W) – 51.6° (T) , V : 51.3° (W) – 24.9° (T) , D : 128.2° (W) – 57.3° (T) |
| Auto Focus | One Push |
| Max IR distance | 30M |
| White Balance | Auto / Tungsten / Indoor / Fluorescents1 / Fluorescents2 / Outdoor1 / Custom |
| Electrical Shutter | 1/30(1/25)s – 1/30000s |
| CPU | Embedded SoC ARM Cortex-A9, 600MHz, 256MB DDR3, 256MB flash memory |
| OS requirement | Windows 7, Windows 8, Windows 10 |
| Web browser | Microsoft® Internet Explorer® 9.0 and later |
| CPU requirement | Intel i3 or above |
| RAM requirement | 4GB or above, Dedicated Graphics Card |
| OS | Embedded Linux 3.10 |
| IP Rating | IP67 |
| Vandal Resistant Rating / IK Rating | IK10 |
| Operating temperature | -40°C – +50°C (-40°F – 122°F) |
| Dimensions | Φ115 x 91mm |
| Weight | 435g |
| Power Supply | DC12V ±10% |
