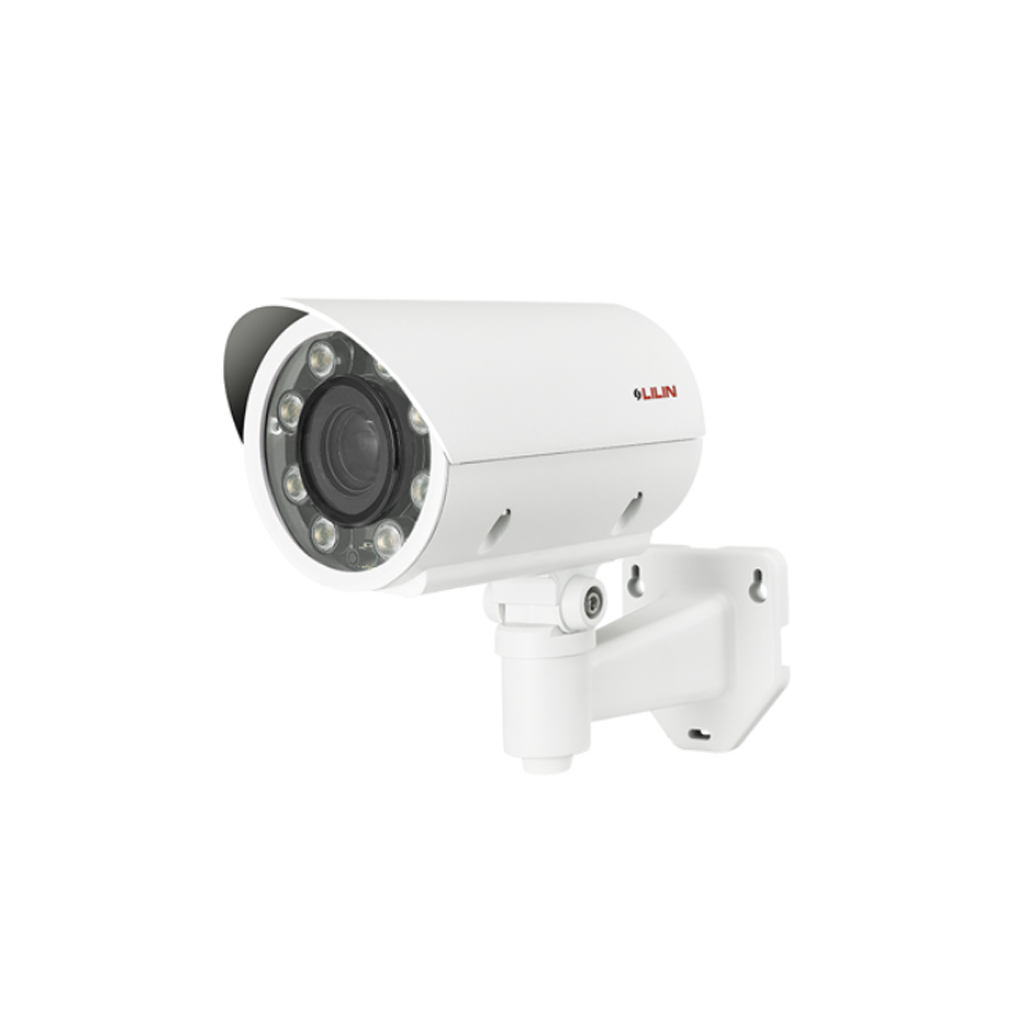

LILIN ZMR7442X-P
4MP Day & Night Auto Focus IR IP Bullet Camera
Features
- Full HD 4.0 megapixel CMOS image sensor
- 4MP True H.264 AVC High Profile video compression
- H.264 and Motion JPEG multi-profile video streaming
- Auto focus with zoom / focus motorized lens
- P-iris supported
- 3D noise reduction (MCTF)
- 2D WDR function
- HDR function up to 100dB
- Digital PTZ supported
- IVS supported
- Tampering / Motion detection alarm function
- High efficiency IR LED, radiant distance up to 50m
- Day & Night (IR cut removable)
- ONVIF Profile S supported
- 2-way audio supported
- Digital I/O : 1 in, 1 out
Specifications
| Min. illumination/Low Light Mode (Colour) | Color : 0.2 Lux at F1.4 , B/W : 0.04 Lux at F1.4 , 0 Lux with IR LED ON |
| 2D WDR | Off / Auto / x2 / x3 / x4 (by normal mode) |
| Power Consumption | DC12V, 13.5W PoE+, 14.5W |
| Power Supply | DC12V ±10% , PoE+ (IEEE 802.3at compliant) |
| Pick Up Element | 1/3″ CMOS image sensor |
| Effective pixels | 2688 (H) x 1520 (V) = 4,085,760 (pixels) |
| Focal Length | 2.8 – 12 mm (zoom / focus motorized) |
| Iris | F1.4(W) ~ F2.8(T), P-IRIS |
| Angle of View | H : 94.8° (W) – 36.4° (T) , V : 51.9° (W) – 20.6° (T) , D : 110.5° (W) – 42.0° (T) |
| Max IR distance | 50m |
| Peak wavelength | 850nm |
| Beam Spread | 60°, 90° |
| Operating temperature | -10°C – +50°C (14°F – 122°F) |
| CPU | Intel® Core™ i3 or higher grade |
| OS requirement | Windows 7 or above |
| RAM requirement | 4GB or above, Dedicated Graphics Card |
| Dimensions | Body : 121.5mm(W) × 109mm(H) × 231mm(D), Bracket : 160mm(L) |
| Weight | 1700g approx. |
| Video Compression | H.264 main and high profile, Motion JPEG |
| Resolution | 4MP (2688×1520) , 3.6MP (2560×1440) , 3MP (2304×1296) , 1080p(1920×1080) , 1280×960 , 720p(1280×720) , D1(720×480, 720×576) , CIF(640×480, 352×240) |
| White Balance | Auto / Tungsten / Indoor / Fluorescents1 / Fluorescents2 / Outdoor1 / Custom |
| Electrical Shutter | 1/30(1/25)s – 1/20000s |
| CPU.Memory | Embedded SoC ARM Cortex-A9, 600MHz, 256MB DDR3, 256MB flash memory |
