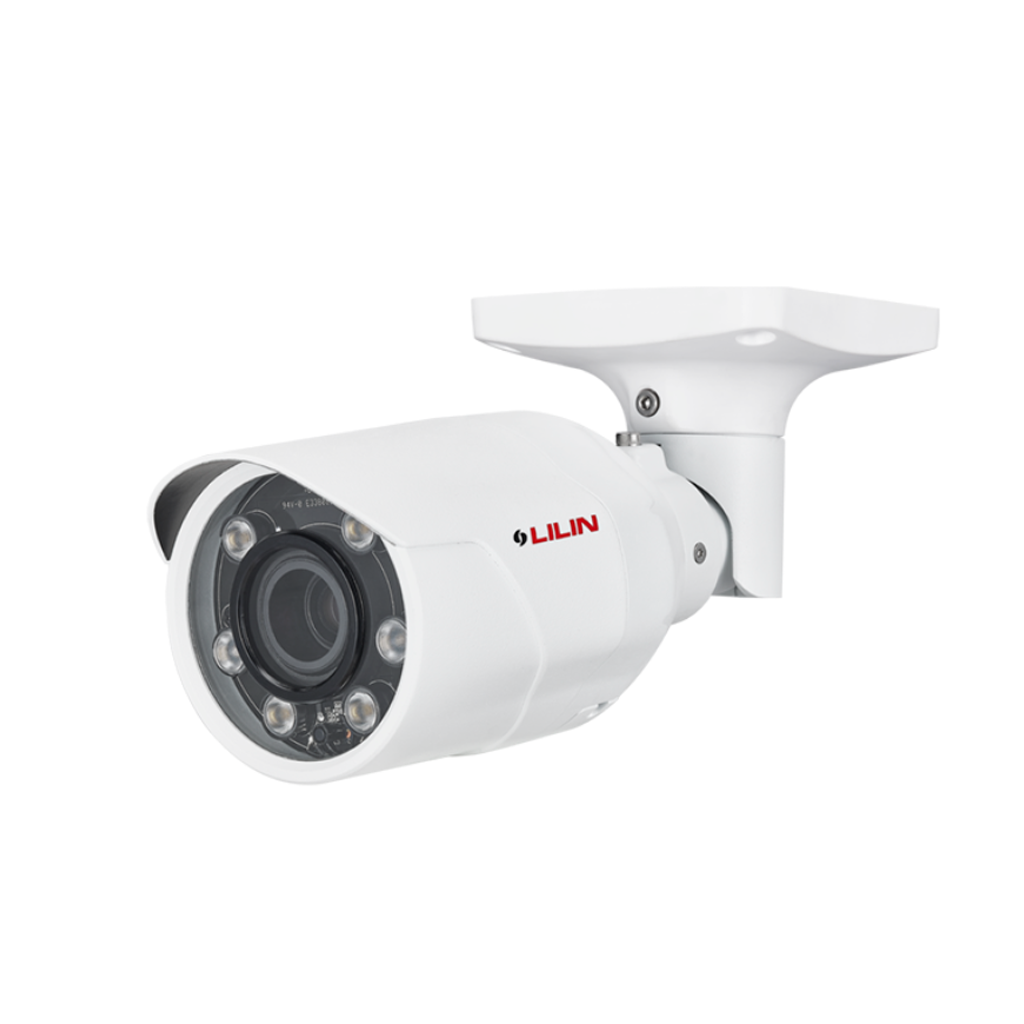

LILIN ZMR8122X2-P
1080P Day & Night Auto Focus IR IP Bullet Camera
Features
- Full HD 2.0 megapixel CMOS image sensor
- 1080P True H.264 AVC High Profile video compression
- H.264 and Motion JPEG multi-profile video streaming
- Auto focus with zoom / focus motorized lens
- P-IRIS supported
- Smart H.264 supported
- 3D noise reduction (MCTF)
- 2D WDR function
- HDR function up to 100dB
- Digital PTZ & ROI supported
- IVS supported
- Cable managed housing and bracket
- Tampering / Motion detection alarm function
- High efficiency IR LED, radiant distance up to 55m
- Day & Night (IR cut removable)
- 2-way audio supported
- Digital I/O: 1 in, 1 out
- ONVIF Profile S supported
Specifications
| Pick Up Element | 1/2.8″ CMOS image sensor |
| Effective pixels | 1945 (H) x 1097 (V) = 2,133,665 (pixels) |
| Video Compression | H.264 Main and High Profile, Motion JPEG |
| Resolution | 1080p HD(1920×1080) , 720p HD(1280×960, 1280×720) , D1(720×480, 720×576) , CIF(640×480, 352×240) |
| Maximum Frame Rate | H.264 / Motion JPEG: up to 30 fps @ 1920×1080 |
| Focal Length | 7.0mm – 22 mm (zoom / focus motorized) |
| Iris | F1.8 (W) – F2.8 (T), P-IRIS |
| Angle of View | H : 41° (W) – 14° (T) , V : 22° (W) – 8° (T) , D : 48° (W) – 18° (T) |
| White Balance | Auto / Tungsten / Indoor / Fluorescents1 / Fluorescents2 / Outdoor1 / Custom |
| Electrical Shutter | 1/30(1/25)s – 1/30000s |
| CPU | Embedded SoC ARM Cortex-A9, 600MHz, 256MB DDR3, 256MB flash memory |
| CPU requirement | Intel i3 or above |
| Operating temperature | -40°C – +50°C (-40°F – 122°F) |
| Dimensions | 103(W) × 103(H) × 258(D) mm |
| Weight | 1150g |
| Power Supply | DC12V ±10% |
