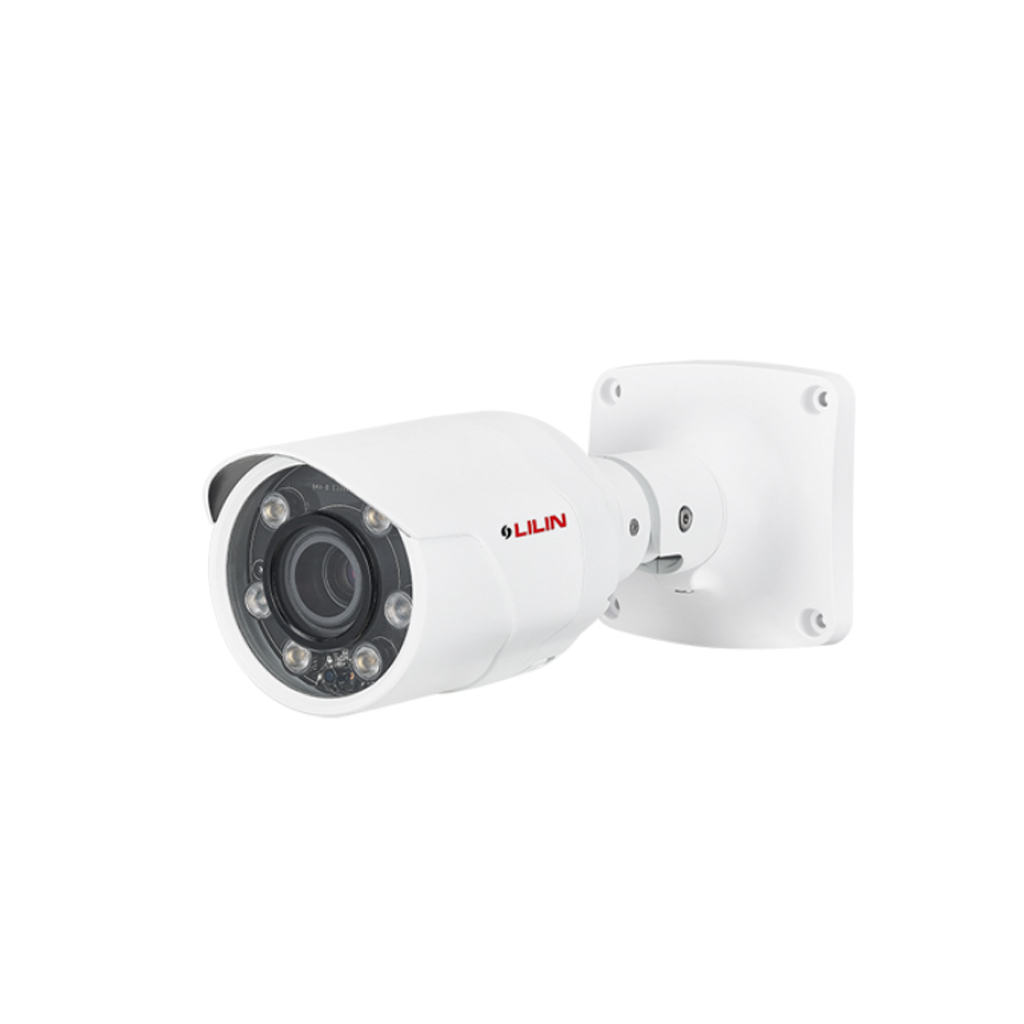

LILIN ZMR8142X-P
4MP Day & Night Auto Focus IR IP Bullet Camera
Features
- Full HD 4.0 megapixel CMOS image sensor
- Auto focus with zoom / focus motorized lens
- P-IRIS supported
- Smart H.264 supported
- 3D noise reduction (MCTF)
- 2D WDR function
- HDR function up to 100dB
- IVS supported
- Tampering / Audio / Motion detection alarm function
- High efficiency IR LED, radiant distance up to 55m
- Day & Night (IR cut removable)
- 2-way audio supported
- Digital I/O: 1 in, 1 out
- ONVIF Profile S supported
Specifications
| Min. illumination/Low Light Mode (Colour) | Color : 0.2 Lux at F1.4 ; B/W : 0.04 Lux at F1.4 ; 0 Lux with IR LED ON |
| Starting Temperature | -10°C – +50°C (14°F – 122°F) |
| Operating temperature | -40°C – +50°C (-40°F – 122°F) |
| Storage temperature | -25°C – +60°C (-13°F – 140°F) |
| Operating humidity | 0% – 90% RH |
| Power Supply | DC12V ±10% / PoE (IEEE 802.3af compliant) |
| Power Consumption | DC12V, 11.2W / PoE, 12.5W |
| Focal Length | 2.8 – 12 mm (zoom / focus motorized) |
| Iris | F1.4 (W) – F2.8 (T), P-IRIS |
| Iris Control | P-IRIS |
| Angle of View | H : 89.3° (W) – 30.4° (T) , V : 47.5° (W) – 17.1° (T) , D : 101.7° (W) – 34.2° (T) |
| Peak wavelength | 850nm |
| Beam Spread | 60° , 90° |
| OS requirement | Windows 7 or above |
| RAM | 4GB or above, Dedicated Graphics Card |
| Dimensions | 103(W) × 103(H) × 258(D) mm |
| Weight | 1120g |
| Video Compression | H.264 Main and High Profile, Motion JPEG |
| Resolution | 4MP (2688×1520) , 3.6MP (2560×1440) , 3MP (2304×1296) , 1080p(1920×1080) , 720p(1280×720) , D1(720×480, 720×576) , CIF(640×480, 352×240) |
| White Balance | Auto / Tungsten / Indoor / Fluorescents1 / Fluorescents2 / Outdoor1 / Custom |
| Electrical Shutter | 1/30(1/25)s – 1/20000s |
| Image Effects | Brightness, Contrast, Hue, Saturation, Sharpness, Mirror, Flip, Lens Distortion Correction |
| CPU.Memory | Embedded SoC ARM Cortex-A9, 600MHz, 256MB DDR3, 256MB flash memory |
