描述

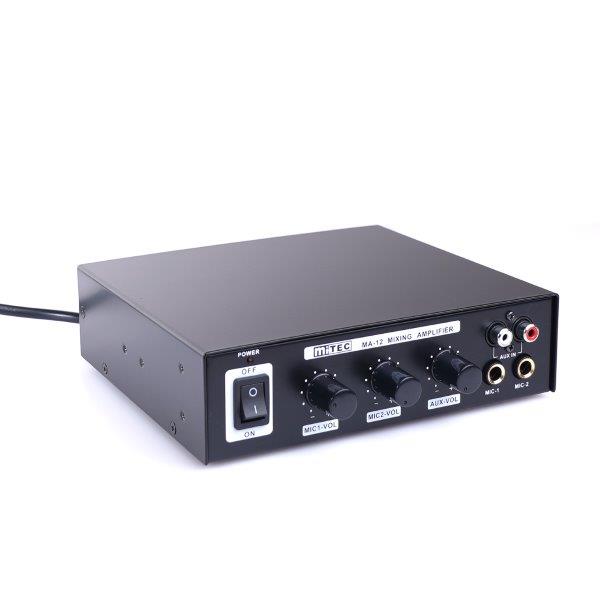

MA-12
12Wmax MINI AMPLIFIER
MA-12 屬miTEC廣播及音響產品。傑成系統有限公司（香港防盜）為miTEC產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考視像及音響工程。規格以原廠資料為準。
產品資料
Specifications:
- Rated Power Output (RMS): 12 Watts
- Frequency Response: 15Hz~45KHz ± 2dB
-
Signal-to-Noise Ratio:
- MIC.1: >70dB
- MIC.2: >70dB
- AUX: >75dB
- Distortion: <0.6% (THD at 1KHz)
-
Sensitivity:
- MIC.1~2: 1.5mV
- AUX: 100mV
-
Input Impedance:
- MIC.1~2 (Unbalance): 2KΩ
- AUX: 47KΩ
- Output Impedance: 4~16Ω
-
Power Supply:
- AC220V 50Hz
- DC12~24V
- Power Consumption: 20W
- Standby Power Consumption: 4.3W
- Dimensions (mm): 168(W) x 45(H) x 140(D)
- Weight: 1.4kg
