MEC-P20EP
20-ZONE EMERGENCY ALARM MONITOR EXPANSION PANEL
MEC-P20EP 屬miTEC緊急求助及護士呼叫產品。傑成系統有限公司（香港防盜）為miTEC產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考安老院保安方案。規格以原廠資料為準。
產品資料

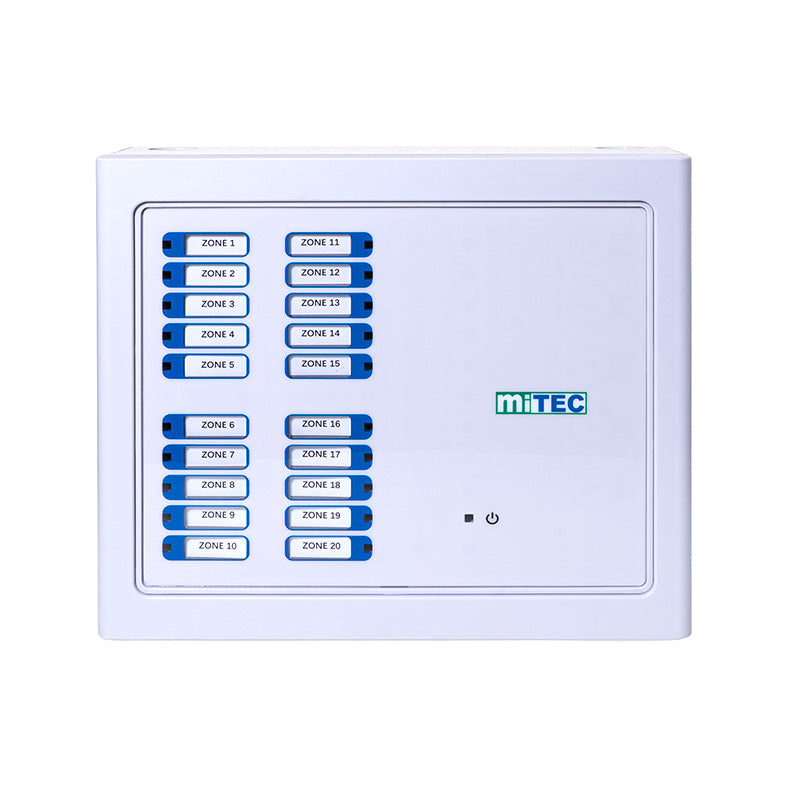

MEC-P20EP ABS EXPANSION PANEL
The MEC-P20EP Expansion Panel is designed to work in conjunction with the MEC-P20MS or MEC-P20MP main control units, extending the system’s alarm monitoring capability. Each module provides real-time status display for up to 20 zones, and when connected via RS-485 communication, up to four expansion panels can be cascaded to achieve a total monitoring capacity of 100 zones, offering a flexible configuration for projects of various scales.
Built with an ABS enclosure, the MEC-P20EP delivers a professional appearance and long-term operational reliability even under demanding environmental conditions. It mirrors the visual alarm indications of the main panel, allowing users to remotely view and monitor zone status across different locations. (Note: Call Accept and Reset functions are available only on the main control panels MEC-P20MS and MEC-P20MP.)
Key Features
-
20 Monitoring Zones: Monitor up to 20 alarm zones with one panel.
-
Expandable System: Add up to 4 expansion panel, monitor up to 100 zones total.
-
Flexible Input Options: Works with NO/NC switches, MECK-KIT, and water level sensors.
-
Easy Zone Labeling: Change zone names using editable or handwritten labels.
-
Backup Power Ready: Built-in battery slot supports miTEC MPE-CH for 2 hours of emergency backup.
-
Quick Setup: DIP switches allow fast configuration — no calibration needed.
-
Compatible with Old Systems: Use the MEC-SB board to connect older devices for individual alarm output for each zone.
Technical Specifications
| Parameter | Details |
|---|---|
| Number of Zones | 20 zones per panel (expandable up to 100 with 4 expansions) |
| Power Input (Expansion Panel) | DC 12V |
| Power Output | N / A |
| External PSU Input | N / A |
| Panel Standby Current | 90mA |
| Panel Alarm Current | 100mA |
| MECK Alarm Current per Zone | 80mA |
| Communication Protocol | RS485 |
| Relay Output Type | N / A |
| Panel Modes | Master Mode / Repeater Mode (configurable via DIP B1) |
| Material | ABS surface |
| Dimension | 220 x 190 x 76mm |
Applications
-
Fire Door Monitoring : Instantly report whether the fire door is not closed or has been forced open to enhance the efficiency of fire response.
-
Toilet Emergency Call Monitoring : Elderly or disabled persons press the help button, an audio-visual alarm will be sent out immediately and the management office will be notified.
-
Pump Room / Elevator Slot Water Leakage Detection Monitoring : When flooding is detected, the system will immediately issue an alarm to prevent property loss and electrical hazards.
Upgrade Compatibility : MEC-SB Signal Board
- Converts signals from legacy emergency buttons and magnetic contacts
- Plug & play setup with DIP A configuration — no rewiring required
MEC-P20 : The Smarter Alarm Monitoring Choice
Designed for Hong Kong’s high-density urban landscape, the MEC-P20 series offers:
-
Cost Efficiency: RS485 wiring reduces installation labor; built-in battery support avoids external units
-
Smart Management: Remote viewing via phone or PC reduces patrol workload by 30%
-
Enhanced Safety: Early alerting from water level, fire, and unauthorized access sensors
