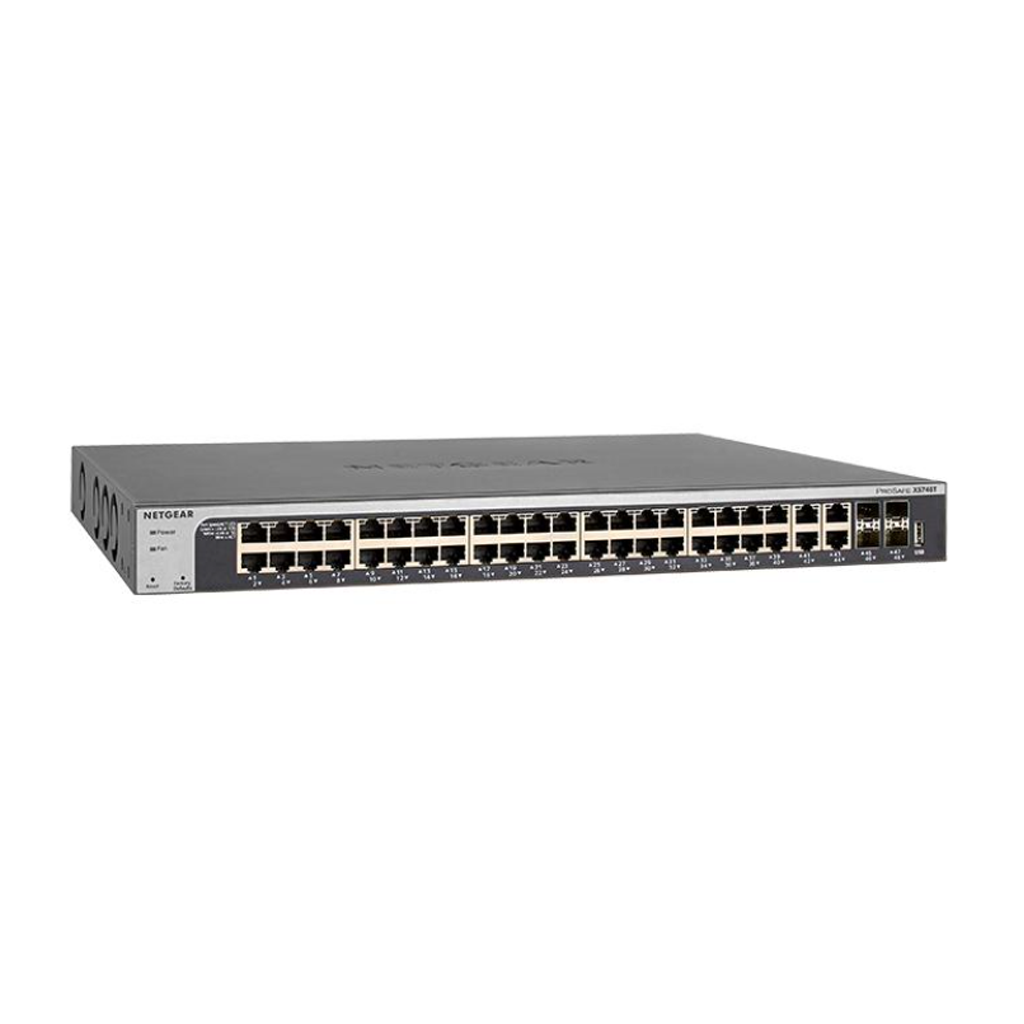

NETGEAR XS748T
48-Port 10-Gigabit Ethernet Smart Switch with 4 Dedicated SFP+ Ports
Features
- Designed as Core Switch for SMB Network
- Act as Aggregation Switch for Medium Sized Networks
- Smart IT, not Big IT
Specifications
| 10-Gigabit copper ports | 44 10GBASE-T copper |
| SFP ports | 4 SFP+ 1000/10GBASE-X fiber ports (shared) |
| Buffer size | 3 MB |
| MAC address database size | 16K |
| VLAN (# supported) | 512 |
| Number of LAGs & number of members | 24 LAGS with max 8 members in each LAG (LACP) |
| Number of priority queues | 8 |
| Access Control Lists (ACLs) | 164 shared for MAC, IP and IPv6 ACLs |
| IPv4 Static routes | 64 |
| IPV6 Static routes | 64 |
| Power supply | Internal 100-240VAC 50-60Hz |
| Max power consumption (Watts) | 262.8 W |
| VLAN routing | Yes |
| Dynamic VLAN assignment | Yes |
| MLD Snooping | Yes |
| Static route | Yes (32) |
| Host ARP table | 512 ARP |
| EEE | Yes |
| DoS Prevention | Yes |
| Internal/External | External DC 54V 1.25A |
| Max consumption (Watts) | 15.1W |
| FAN | 4 |
| Acoustic Noise Level @25C (dBA) | 47.8 dBA |
| Operating Temperature | 0° to 50°C (32° to 122°F) |
| MTBF (@ 25° C) | 483,808 hours |
| Electromagnetic compliance (A or B) | Class A |
| Dimensions (WxDxH) | 440 x 347 x 43 mm (17.3 x 13.7 x 1.7 in) |
| Weight (kg) | 6.25 kg (13.78 lb) |
