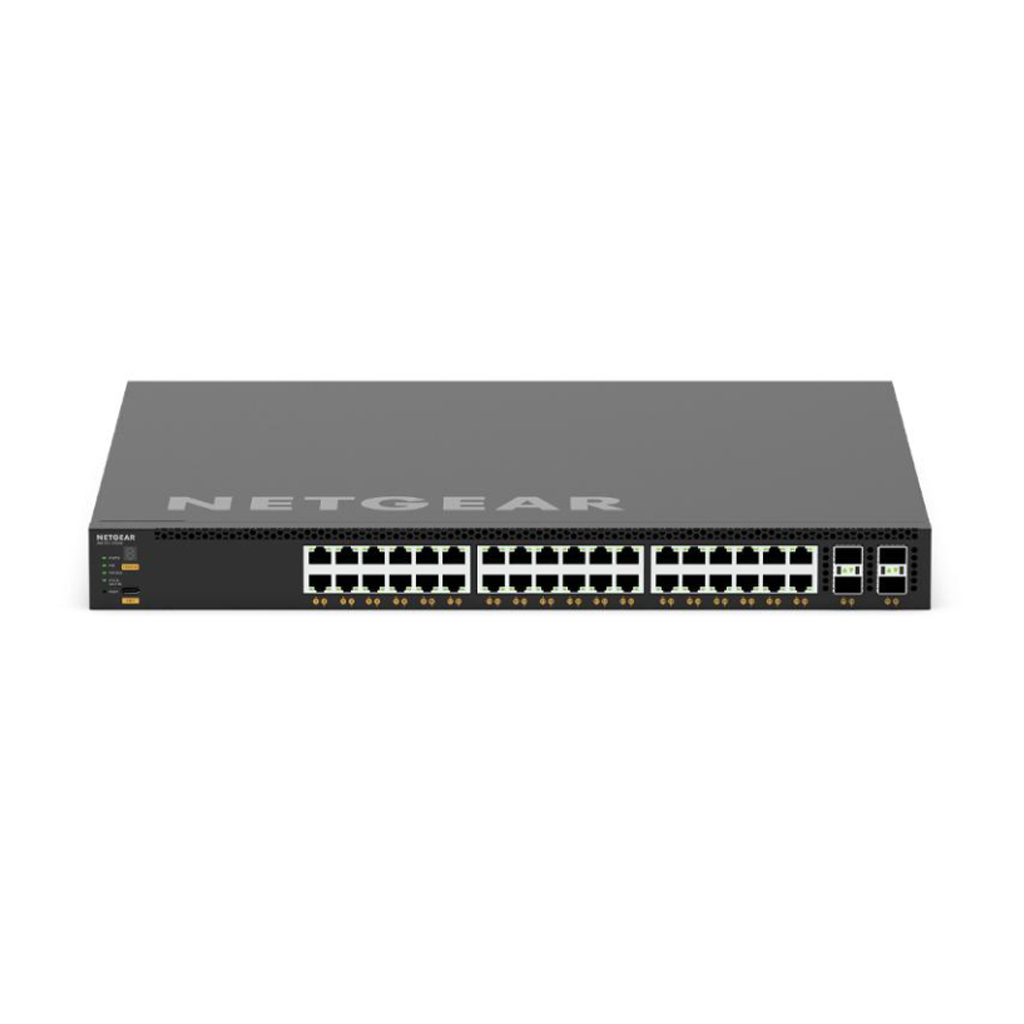

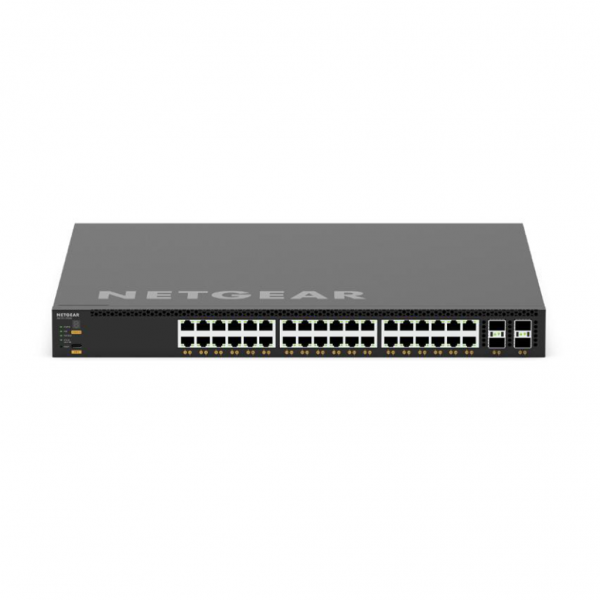

NETGEAR XSM4340CV
36x10G/Multi-Gig PoE++ (280W base, up to 1,760W) and 4xSFP28 25G Managed Switch
Features
- 36 10G/Multi-Gig PoE++ ports with 4 25GBASE-X SFP28 uplinks
- 750W internal power supply providing 280W of PoE budget
- 1 slot for modular power supply (1+1 redundancy and/or EPS share)
- Any APS600Wv3, APS1200Wv2, or APS2000Wv2 can be used
- The PoE budget can reach 1,760W, when the redundant PoE budget remains 280W
- Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover
- Layer 3 feature set includes static, policy-based, and dynamic routing
- NETGEAR IGMP Plus™, AV User Interface, and Engage Controller speed up AV installations
- NETGEAR ProSAFE® Limited Lifetime Hardware Warranty
- Lifetime Next Business Day Hardware Replacement
Specifications
| Width | 440mm |
| Depth | 400mm |
| Height | 43.2mm |
| Weight | 7.33kg (16.16lb) |
| Primary Port Speed | 10 Gigabit / Multi-Gig |
| Number of Ports | 40 (36 x 10G/Multi-Gig PoE++, 4 x 25G SFP28) |
| PoE Ports / Budget | 36 PoE++ (90W/port), 280W Base, up to 1,760W Budget |
| IGMP Support | Enhanced (NETGEAR IGMP Plus™) |
| Jumbo Frame Support | Yes, up to 12kb |
| AVB Support | Yes, included |
| Acoustics | Quiet Mode 32.1dB@25ºC |
| Power Consumption | With PoE: 454W/1548.14Btu/hr Without PoE: 148W/464.72Btu/hr Standby without any port connection: 59.3W/186.2Btu/hr |
| PSU Compatible Models | APS600Wv3 APS1200Wv2 APS2000Wv2 |
