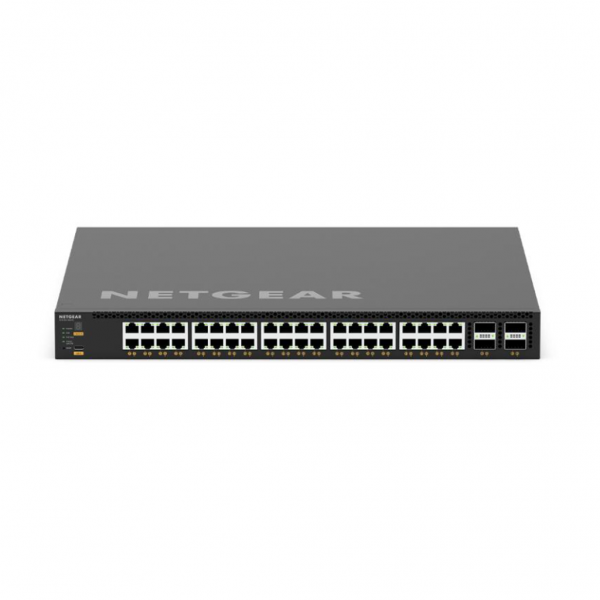

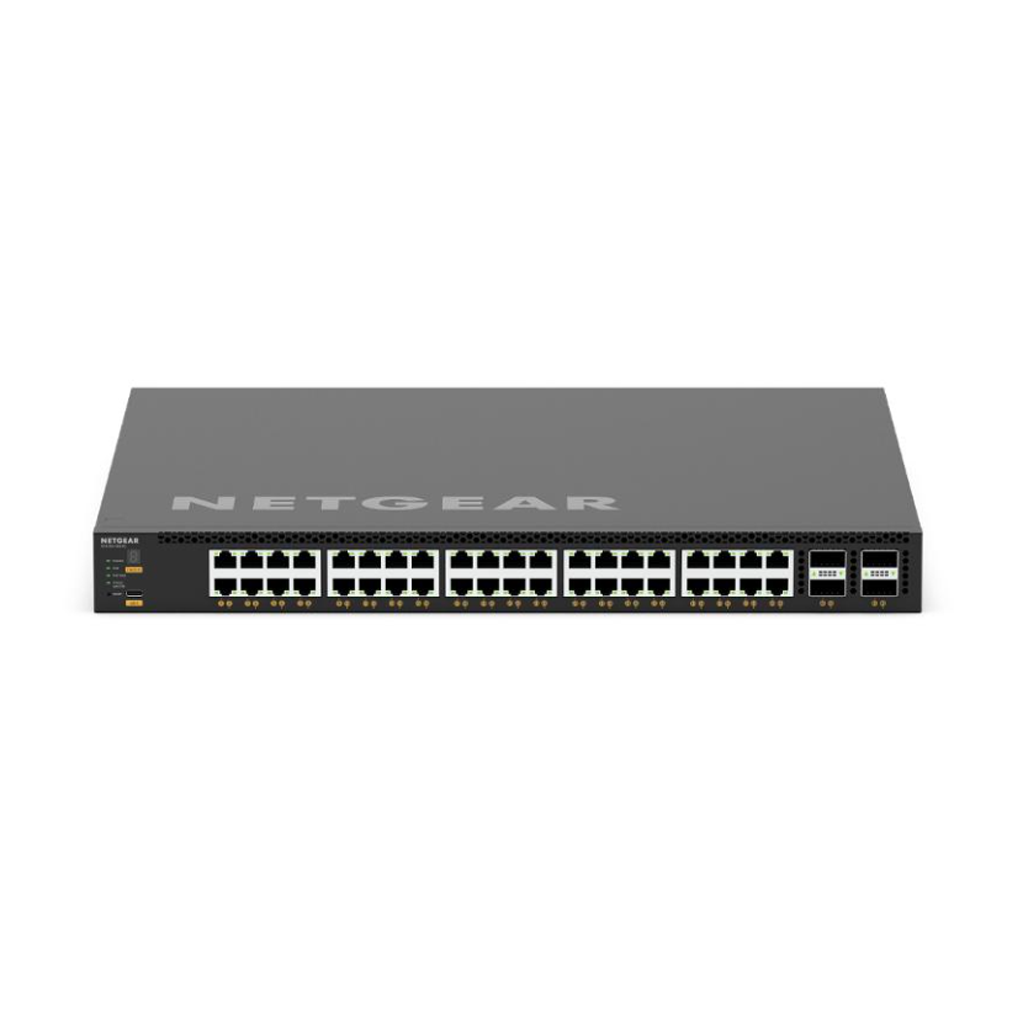

NETGEAR XSM4344C
40x10G/Multi-Gig PoE++ (196W base, up to 1,676W) and 4xQSFP28 100G Managed Switch
Features
- 40 10G/Multi-Gig PoE++ ports with 4 100GBASE-X QSFP28 uplinks
- 750W internal power supply providing 196W of PoE budget
- 1 slot for modular power supply (1+1 redundancy and/or EPS share)
- Any APS600Wv3, APS1200Wv2, or APS2000Wv2 can be used
- The PoE budget can reach 1,676W, when the redundant PoE budget remains 196W
- Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover
- Layer 3 feature set includes static, policy-based, and dynamic routing
- NETGEAR IGMP Plus™, AV User Interface, and Engage Controller speed up AV installations
- Supports SMPTE ST2110 IP broadcast protocol
- NETGEAR ProSAFE® Limited Lifetime Hardware Warranty
- Lifetime Next Business Day Hardware Replacement
- TAA compliant SKU is available. Contact your sales representative
Specifications
| Width | 440mm |
| Depth | 400mm |
| Height | 43.2mm |
| Weight | 7.76kg (17.11lb) |
| Primary Port Speed | 10 Gigabit / Multi-Gig |
| Number of Ports | 44 (40 x 10G/Multi-Gig PoE++, 4 x 100G QSFP28) |
| PoE Ports / Budget | 40 PoE++ (90W/port), 196W Base, up to 1,676W Budget |
| IGMP Support | Enhanced (NETGEAR IGMP Plus™) |
| Jumbo Frame Support | Yes, up to 12kb |
| AVB Support | Yes, included |
| Acoustics | Quiet Mode 34.1dB@25ºC |
| Power Consumption | With PoE: 413W/1408.33Btu/hr Without PoE: 200.4W/629.26Btu/hr Standby without any port connection: 98.8W/310.23Btu/hr |
| PSU Compatible Models | APS600Wv3 APS1200Wv2 APS2000Wv2 |
