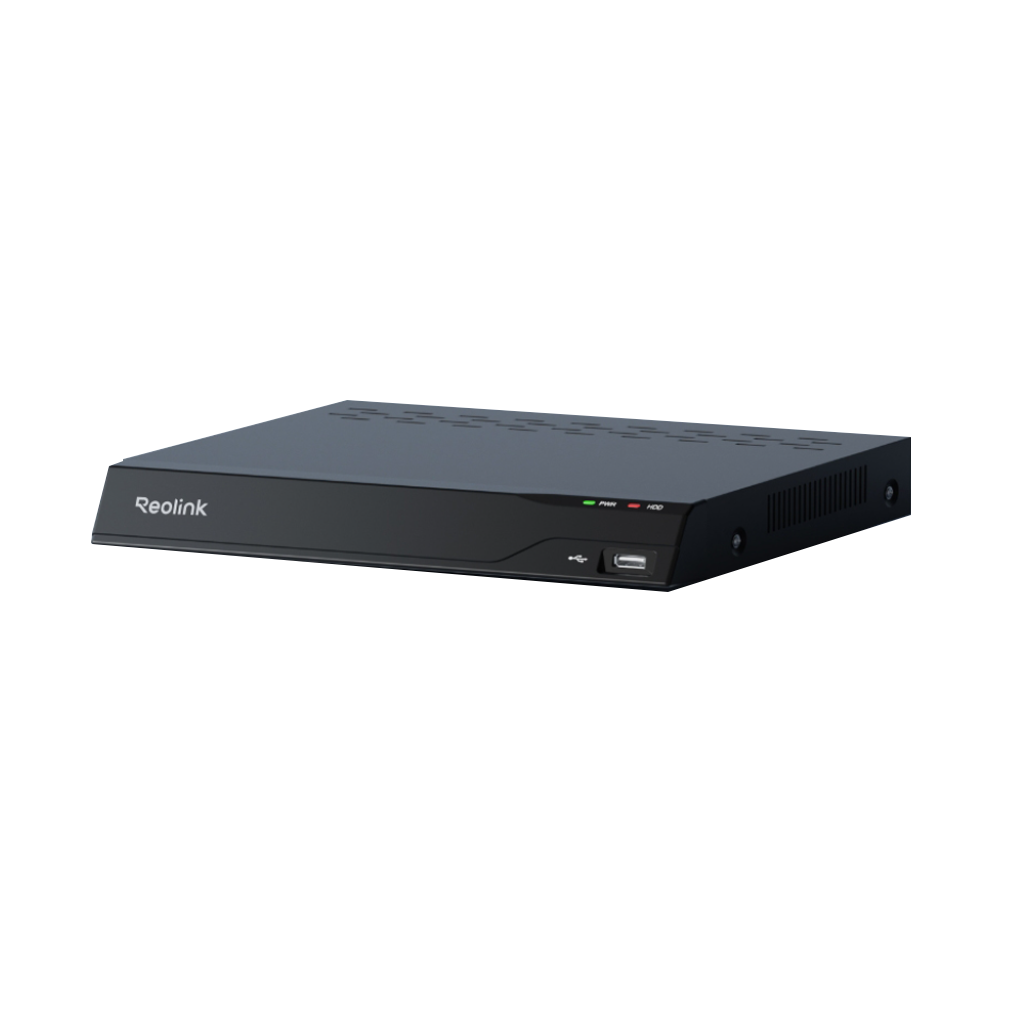

Reolink NVS16
16-Channel PoE NVR for 24/7 Continuous Recording
Features
- Support up to 16MP
- Power over Ethernet
- 16-Channel
- 4TB HDD Built-in
Specification
| Hardware | 4TB HDD: N6MB01 |
| Video/Audio Input | |
| IP Video Input | PoE IP camera x 16 |
| Audio Input | Cameras with built-in mic |
| Video/Audio Output | |
| Video Output | VGA, HDMI |
| Display Resolution |
• HDMI: 3840*2160, 1920*1080, 1280*1024, 1280*720, 1024*768 • VGA: 1920*1080, 1280*1024, 1280*720, 1024*768 |
| Audio Output | 1-channel, RCA |
| Decoding | |
| Video Compression | H.264/H.265 |
| Live View/Playback Resolution | 7680×2160, 4608X1728,4512X2512,4096X3072,3840 X2160, 2560X2560, 2560X1920, 2560X1440,2048X1536, 2304X1296,1080P, 720P |
| Synchronous Playback | Up to 4 channels |
| HDD | |
| SATA | 2 x SATA interface (1 x 4TB HDD included) |
| Capacity | Up to 12TB (max. 6TB capacity for each HDD) |
| External HDD | No |
| External Interface | |
| USB Interface | 2 x USB 2.0 |
| Network Interface |
• 1, RJ-45 10/1000 Mbps self-adaptive Ethernet interface for LAN/WAN • 16, RJ-45 10/100 Mbps self-adaptive PoE Ethernet interface for IP camera |
| PoE | |
| Max. Power Per Port | 25W |
| Supported Standard | IEEE 802.3af/at |
| Network | |
| Network Protocols | HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP |
| Browsers Supported | Edge, Firefox, Chrome, Safari |
| OS Supported | PC: Windows, Mac OS; smartphone: iOS, Android |
| Max. User Access | 20 users (1 admin account & 19 user accounts); up to 12 simultaneous video streams (10 substreams & 2 mainstreams) |
| General | |
| Power Supply | DC 48V~54V |
| Power Consumption | <10W (Without HDD & PoE) |
| Working Environment | Temperature: -10°C ~ +45°C (14°F ~113°F); Humidity: 10% ~ 90% |
| Dimensions | 330 x 45 x 285mm |
| Weight | 2.4kg |
