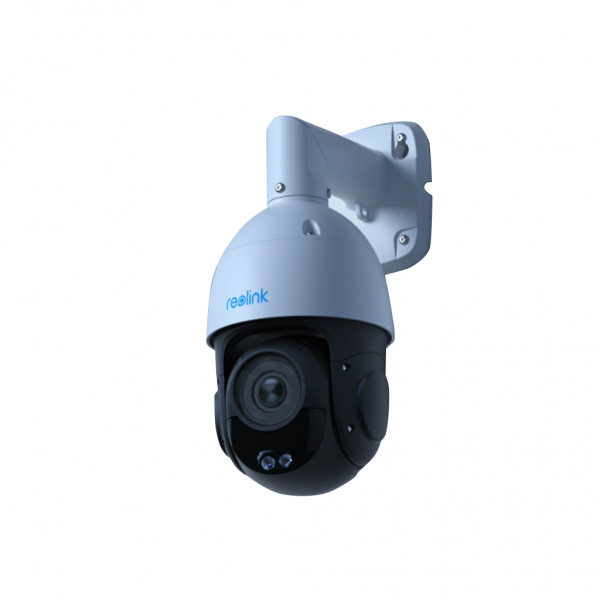

Reolink P840
4K 360° Auto-Tracking PoE Camera
Features
- 360° Coverage with Auto Tracking
- 4K UHD with 5X Optical Zoom
- Color Night Vision
- Person/Vehicle/Animal Detection
Specification
| Video & Audio | |
| Image Sensor | 1/2.8″ CMOS sensor |
| Resolution | 3840×2160(8 Megapixels)@25FPS |
| Lens | f=2.7-13.5mm/Max. F1.6 |
| Video Format | H.265/H.264 |
| Zoom | 5X Optical Zoom |
| Field of View | Horizontal: 100°-31° Vertical: 55°-17° Diagonal: 123°-39° |
| Infrared Night Vision | Up tp 60 meters(196ft); LED: 7pcs/Max. 5.5W/850nm (Auto-switching with IR-cut filter) |
| Color Night Vision | With spotlights: 2pcs/4w/4000K (Adjustable) |
| Frame Rate | Main stream: 2fps – 25fps (default: 25fps) Sub stream: 4fps – 15fps (default: 10fps) |
| Code Rate | Main stream: 2048Kbps – 8192Kbps (default: 6144Kbps) Sub stream: 64Kbps – 512Kbps (default: 256Kbps) |
| Audio | Two-way audio |
| Power Requirements | |
| PoE | IEEE 802.3af, 48V Active |
| DC Power | DC 12V23 93 2A, <24W |
| Interface | |
| Power | DC power port |
| Ethernet Port | One 10M/100Mbps; RJ45 |
| SD Card Slot | Supports Max. 256GB microSD card |
| Reset Button | YES |
| Audio In/Out | Built-in microphone and speaker |
| Working Environment | |
| Operating Temperature | -10°C~+50°C (14°F~126°F) |
| Operating Humidity | 10% ~ 90% |
| Waterproof | IP66 |
| Mechanical | |
| Dimensions | 373*177*140mm (ceiling mount) |
| Weight | 2.34kg |
