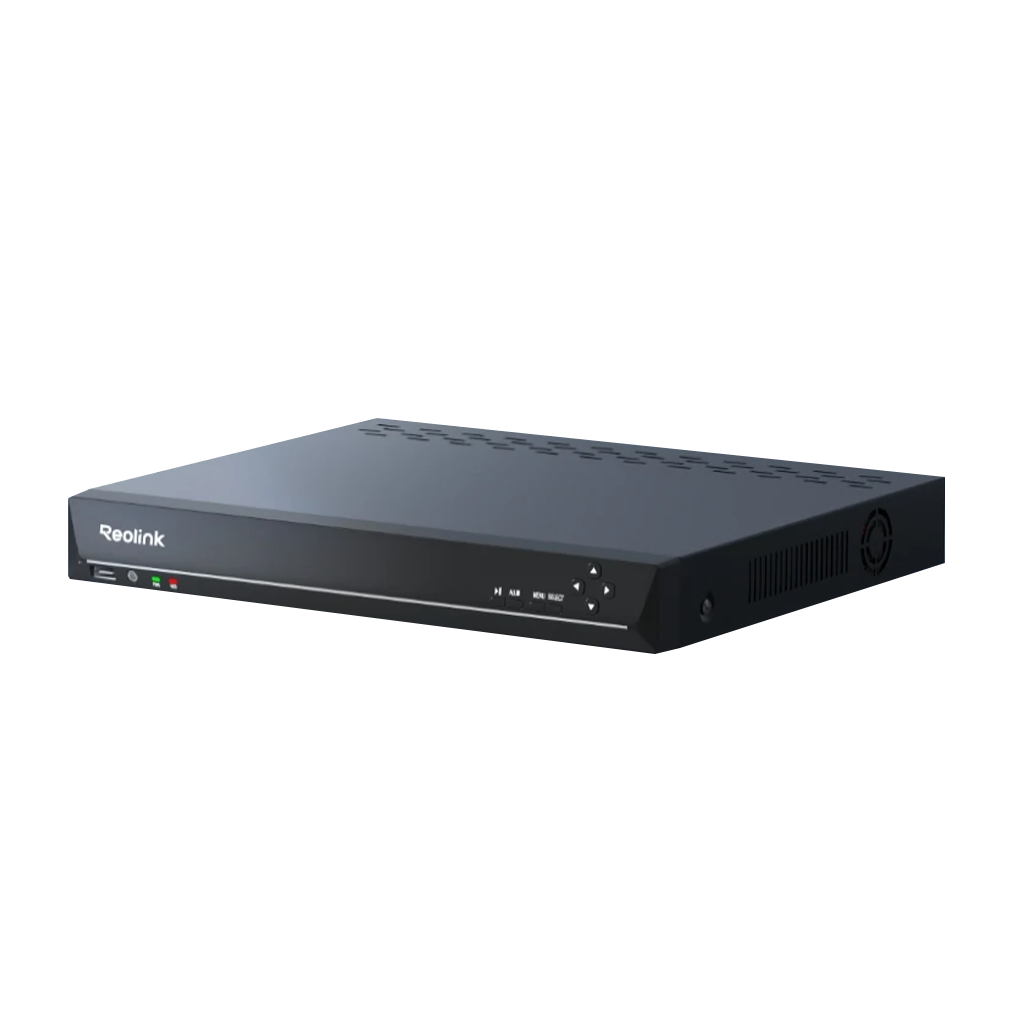

Reolink RLN16-410
24-Channel PoE NVR for 24/7 Continuous Recording
Features
- Supporting Up to 16MP
- Power over Ethernet
- Pre-installed 4TB HDD
- Expandable Storage up to 16TB
Specification
| Hardware | N6MB01 |
| Video/Audio Input | |
| IP Video Input | 16× Wired IP Camera + 8× Battery Wi-Fi Camera; 24× Battery Wi-Fi Camera |
| Audio Input | Cameras with built-in mic |
| Video/Audio Output | |
| HDMI Output Resolution | 3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768 |
| VGA Output Resolution |
1920×1080, 1280×1024, 1280×720, 1024×768 |
| Audio Output | 1-channel, RCA |
| Decoding | |
| Video Compression | H.264/H.265 |
| Live View/Playback Resolution | 16MP/12MP/8MP/5MP/4MP/3MP/1080P/720P |
| Synchronous Playback | 1-4 channels (Supports only 1-channel playback if you view it in 8MP or higher resolution) |
| Storage | |
| Internal HDD | 2 SATA interfaces for 2 HDDs (1× 4TB HDD included) |
| Capacity | 16TB (up to 8TB capacity for each HDD) |
| External HDD | NO |
| External Interface | |
| USB Interface | 2 x USB 2.0 |
| Network Interface |
16 x RJ-45, 10/100 Mbps self-adaptive |
| PoE | |
| Max. Power Per Port | 25W |
| Supported Standard | IEEE 802.3af/at |
| Network | |
| Network Protocols | HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTMP, SMTP, SSL/TLS, DNS, DDNS, NTP |
| Browsers Supported | Edge, Firefox, Chrome, Safari |
| OS Supported | PC: Windows, Mac OS; smartphone: iOS, Android |
| Max. User Access | 20 users (1 admin account & 19 user accounts); up to 12 simultaneous video streams (10 substreams & 2 mainstreams) |
| General | |
| Power Supply | DC 48 ~ 54V |
| Power Consumption | <10W (Without HDD & PoE) |
| Working Environment | Temperature: -10°C ~ +45°C (14°F ~113°F); Humidity: 10% ~ 90% |
| Dimensions | 330 × 45 × 285mm |
| Weight | 1.8kg (without HDD) |
