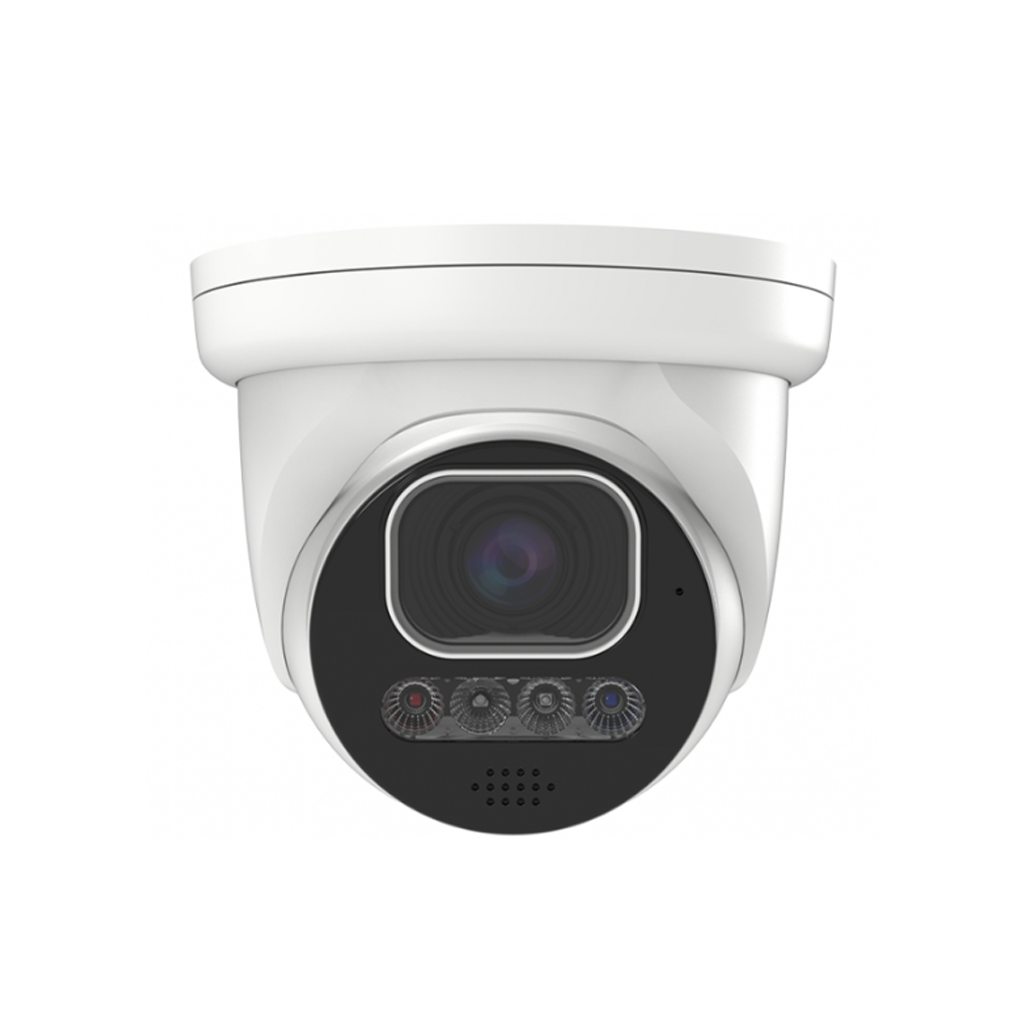

RIFATRON TBO1-NMU4-XO
IP Camera
Features
- Series : O Series
- Category : Ultra Low Light
- Appearance : Turret
- Resolution : 4MP
- Lens Type : Motorized
Specification
| Camera | ||
| Image Sensor | 1/1.8″ Progressice Scan CMOS | |
| Effective Pixels | 4MP (2688×1520) | |
| Min. Illumination | Color: 0.0005Lux @ (F1.0, AGC ON), B/W 0 Lux with IR on | |
| Shutter Speed | 1/5s to 1/20,000s | |
| Lens | ||
| Type / Focal Length | Motorized / 3mm -10mm | |
| Filed of View(FOV) | H: 105°(W) -56°(T), V: 54°(W) -32°(T), D: 131°(W) -65°(T) | |
| Aperture | F1.0 | |
| Illuminator | ||
| Light Type | Warm Light, Red/Blue Light | |
| Range(IR/WARM) | None / Up to 30m | |
| Video | ||
| 1st stream | 4MP(2688×1520), 3MP(2304×1296), 1080P(1920×1080) | |
| 2nd stream | 1080P(1920×1080), 720P(1280×720), VGA(640×480) | |
| 3rd stream | VGA(640×480), QVGA(320×240) | |
| Compression | H.265 / H.264 | |
| Video Quality Ajustment | Full Color Mode / Day&Night Mode / Schedule | |
| Bitrate Control | VBR / CBR | |
| Audio | ||
| Sampling Rate | 8k | |
| Compression | G.711ulaw / G.711alaw | |
| Bitrate | 64kbps | |
| Network | ||
| API | ONVIF (Profile S, G, T) | |
| Protocols | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP | |
| Security | IP address filter; complicated password; Authenticated username and password | |
| Image | ||
| Day & Night | Yes | |
| WDR | Yes | |
| Image Enhancement | 3D DNR, White Balance | |
| Image Settings | Full Color Mode | |
| Interface | ||
| Ethernet | RJ45 (10/100BASE-T) | |
| On-Board Storage | Micro SD slot, up to 256GB | |
| General | ||
| Material | Metal | |
| Power | D12V / POE (IEEE802.3af) | |
| Operating Conditions | -35～+60°C / less than 90% RH | |
| Ingress Protection / IK code | IP67 | |
