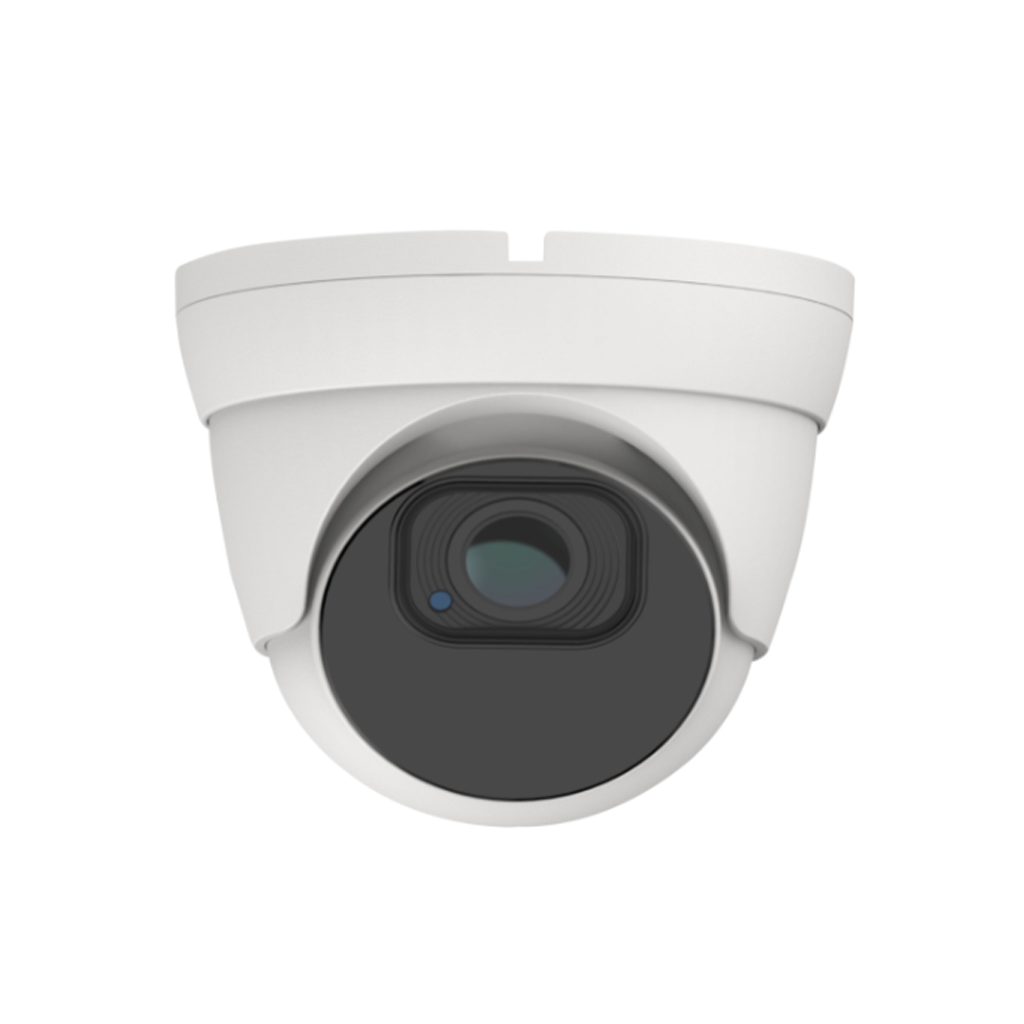

RIFATRON TMT2-AMD2-FS
Analog Camera
Features
- Series : T Series
- Category : Day&Night
- Appearance : Turret
- Resolution : 2MP
- Lens Type : Motorized
Specification
| Camera | |
| Image Sensor | 1/2.8″ Progressice Scan CMOS |
| Effective Pixels | 2MP (1920 x 1080) |
| Min. Illumination | 0.002Lux@F1.6(AGC ON), B/W 0 Lux IR on |
| Electronic Shutter | Auto |
| Lens | |
| Type / Focal Length | Motorized / 2.8-12mm |
| Filed of View(FOV) | H:110.6-32.6° / V:57.3-18.3° / D:134.1-37.4° |
| Aperture | F1.8-3.3 |
| Illuminator | |
| Light Type | IR |
| Range(IR/WARM) | Up to 35m |
| General | |
| Power Supply | DC 12V |
| Power Consumption | IR OFF ≤1W，IR ON ≤4W |
| Operating Temp. | -35 °C to 55 °C |
| Ingress Protection / IK code | IP66 |
