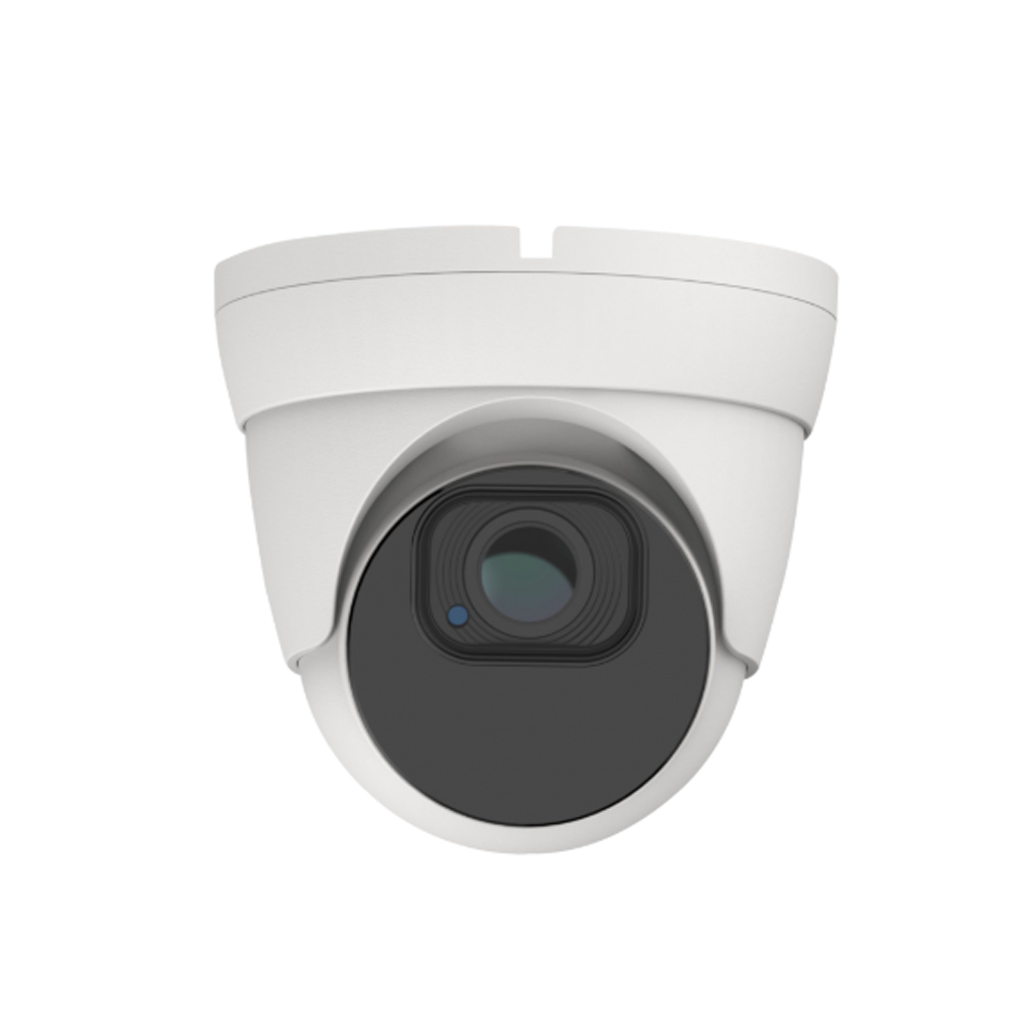

RIFATRON TMT2-NMD2-NM
IP Camera
Features
- Series : T Series
- Category : Day&Night
- Appearance : Turret
- Resolution : 2MP
- Lens Type : Motorized
Specification
| Camera | ||
| Image Sensor | 1/2.8″ Progressice Scan CMOS | |
| Effective Pixels | 2MP (1920 x 1080) | |
| Min. Illumination | 0.002Lux@F1.6(AGC ON), B/W 0 Lux IR on | |
| Shutter Speed | 1/5s to 1/20,000s | |
| Lens | ||
| Type / Focal Length | Motorized / 2.7 ~ 13.5mm | |
| Filed of View(FOV) | H: 111° to 33°, V: 57° to 18°, D: 134° to 37° | |
| Aperture | F1.6 | |
| Illuminator | ||
| Light Type | IR | |
| Range(IR/WARM) | Up to 45m | |
| Video | ||
| 1st stream | 30fps (1920×1080, 1280×960, 1280×720) | |
| 2nd stream | 30fps (1280×720, 640×480, 320×240) | |
| 3rd stream | 30fps (640×480, 320×240) | |
| Compression | H.265 / H.264 | |
| Video Quality Ajustment | 256Kbps to 8Mbps | |
| Bitrate Control | CBR / VBR | |
| Audio | ||
| Sampling Rate | 8k | |
| Compression | G.711ulaw / G.711alaw | |
| Bitrate | 64kbps | |
| Network | ||
| API | ONVIF (Profile S, T) | |
| Protocols | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP,NTP, UPnP, SNMP, HTTPS, FTP | |
| Security | IP address filter; complicated password; Authenticated username and password | |
| Image | ||
| Day & Night | Day / Night / Auto / Image / Schedule | |
| WDR | TWDR | |
| Image Enhancement | 3D DNR | |
| Image Settings | Saturation, brightness, contrast, sharpness, white balance | |
| Interface | ||
| Ethernet | 1-RJ45, 10M / 100Mbps | |
| On-Board Storage | Micro SD, up to 256 GB | |
| General | ||
| Material | Metal | |
| Power | DC12V | |
| Operating Conditions | -35 °C to 60 °C (-31 °F to 140 °F) | |
| Ingress Protection / IK code | IP67 | |
