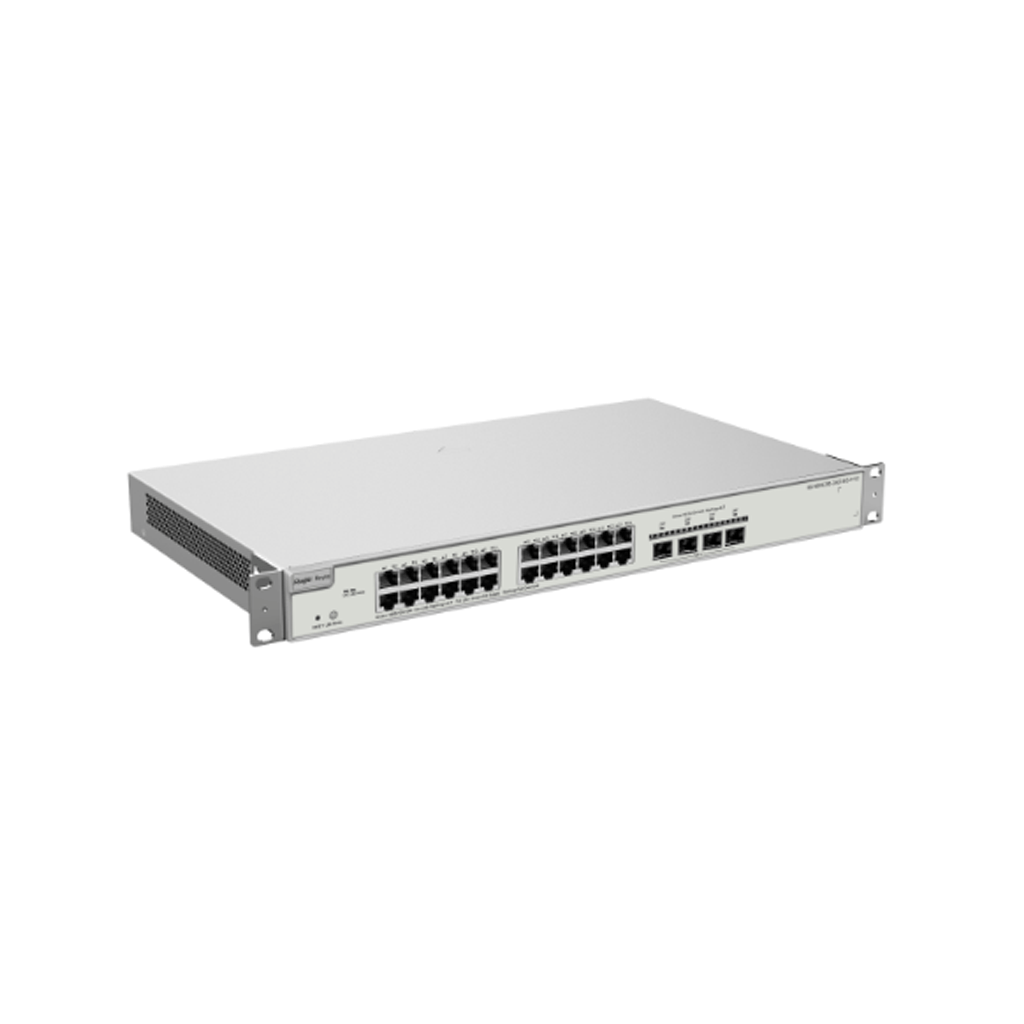

Ruijie Reyee RG-NBS5200-24GT4XS-P-V2
24-port Gigabit Layer 3 PoE Switch
Features
-
24-Port Gigabit Layer 3 Managed PoE Switch, 4 SFP+ Uplink
-
Enterprise-Class Quality and Features, Delivering Exceptional Performance
-
6 kV Surge Protection, Reducing the Possibility of Port Damage
-
Multiple Security Policies, Protecting Your Network
-
Lifetime Management on Ruijie Cloud Anytime, Anywhere
Specifications
| Total number of RJ45 ports | 8 (including eight combo ports) |
| Total number of optical ports | 28 (including eight combo ports) |
| Number of 1GE combo ports | 8 |
| Number of 1GE SFP ports | 24 (including eight combo ports) |
| Number of 10GE SFP+ ports | 4 |
| Number of 10/100BASE-T ports | No |
| Number of 10/100/1000BASE-T ports | 8 (including eight combo ports) |
| Number of 10/100/1000/2500BASE-T ports | No |
| Number of 100/1000/2.5G/5G/10GBASE-T ports | No |
| Forwarding rate | 96 Mpps |
| Switching capacity | 128 Gbps(bit/s) |
| MTBF | 400,000 hours |
| Operating temperature | 0°C to +50°C (32°F to 122°F) |
| Altitude | Operating altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.) Storage altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.) |
| Surge protection | Service port: ±6 kV for common mode Power connector: ±6 kV for both common mode and differential mode |
