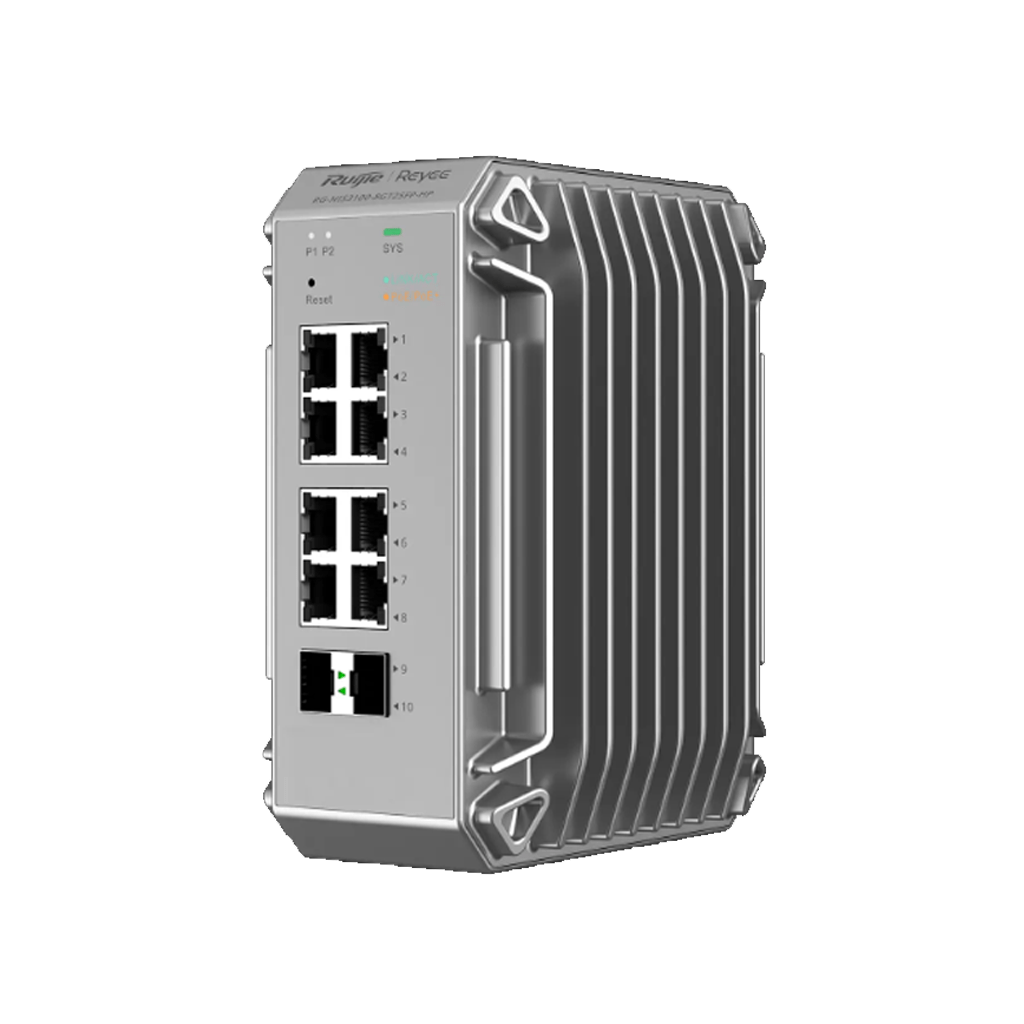

Ruijie Reyee RG-NIS3100-8GT2SFP-HP
Industrial-Grade Switch
Features
- Three Different Models Meet Various Business Scenario Needs
- Unique Industrial Design Ensures Stable Operation in -40℃ to 80℃
- 8 KV Protection: The Shield Against Voltage Spike
- IP40 Against 1mm Intruders in Dusty Conditions
-
ERPS ensures network stability: service failover within 50ms
- Local Network SON, Easy Configuration even without Cloud
- Ruijie Cloud :Easy Management even in Harsh Environments
Specifications
| Total number of RJ45 ports | 8 |
| Total number of optical ports | 2 |
| Number of 1GE combo ports | No |
| Number of 1GE SFP ports | 2 |
| Number of 10GE SFP+ ports | No |
| Number of 10/100BASE-T ports | No |
| Number of 10/100/1000BASE-T ports | 8 |
| Number of 10/100/1000/2500BASE-T ports | No |
| Number of 100/1000/2.5G/5G/10GBASE-T ports | No |
| Forwarding rate | 14.88 Mpps |
| Switching capacity | 20 Gbps(bit/s) |
| MTBF | 400,000 hours |
| Operating temperature | -40ºC to +65ºC (-40°F to 149°F) (installed in a sealed cabinet) -40ºC to +70ºC (-40°F to 158°F) (installed in a fume hood with a ventilation speed of at least 80LFM (Line Feet Minute)) -40ºC to +75ºC (-40°F to 167°F) (installed in a fume hood with a ventilation speed of at least 200LFM (Line Feet Minute)) -40ºC to +80ºC (-40°F to 176°F) (installed in a fume hood with a ventilation speed of at least 400LFM (Line Feet Minute)) |
| Altitude | Operating altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.) Storage altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.) |
| Surge protection | Service port: ±6 kV for common mode Power connector: ±4 kV for common mode and ±2 kV for differential mode |
