描述

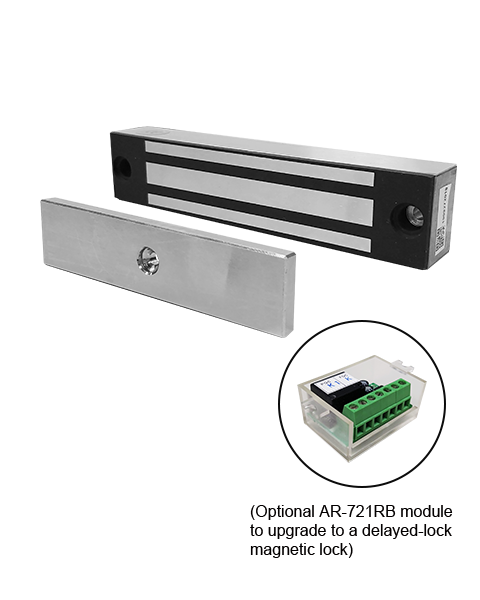

AR-0400WF
INDOOR Electronic Magnetic Lock 400LBS(Face Mount)
AR-0400WF 屬Soyal 碩陽門禁產品。傑成系統有限公司（香港防盜）為Soyal 碩陽產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修，可配合電鎖、出門掣及管理軟件一併施工。方案可參考門禁系統。規格以原廠資料為準。
功能重點
- The magnetic lock is designed without any mechanical structure, high reliability and reinforced aluminum alloy casing. The amature plate has a special anti-residual magnetism design, and a variety of optional installation auxiliary bracket that are suitable for all door types. Waterproof IP rate for outdoor installation.
規格
Electronic Magnetic Lock-Outdoor Type (Face Mount) AR-0400WF
| Operating Voltage | 12 to 24 VDC |
| Current Draw | 12VDC – 370mA 24VDC – 185mA |
| Lock Type | Lock Housing : Stainless Steel ,Armature Plate：Pure Iron ,Bracket : Allumunium Alloy |
| Holding Force(kg) | 180 |
| Selenoid Test | Over 500,000 times |
| Temperature | Lock Surface: ≦ ambient temperature ± 20°C Operating: -10°C ~ +55°C |
| Humidity | 0~95% non-condensing |
| Dimmension (mm) | Magnet : 35(H)X164(W)X26(D) Armature Plate : 32(H)X130(W)X10(D) |
| Bracket Type | Z&L Bracket : AR-0400MZL (Z and L Bracket can be purchased separately) U Bracket: AR-0300M/0400M-U |
| Electronic Magnetic Lock Net Weight (kg) | approx. 0.90kg |
| Door Monitoring Output | NO |
| LED indicator | NO |
| Igress Protection (IP) | IP66 |
